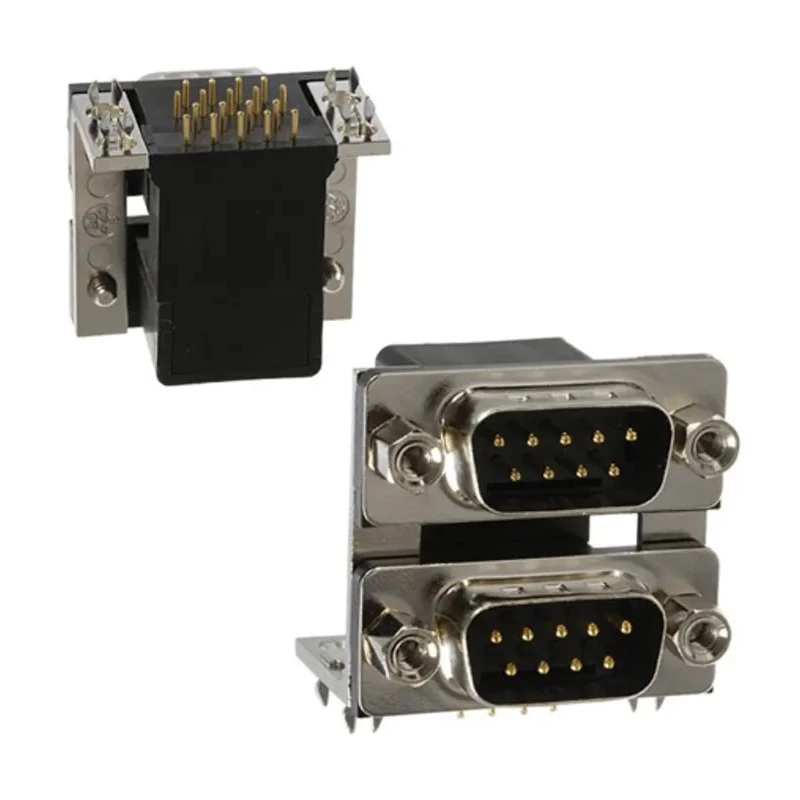

Norcomp 189 Series Right Angle 9 2.769 mm Pitch PCB D-Sub Connector with 4 to 40 Insert 189-009-613R571

Norcomp 189-009-613R571 is a 189 Series right angle PCB mount D-Sub connector designed with dual stacked ports to maximize available PCB space. It features 9 female contacts on side A and 9 male contacts on side B with a 2.769 mm pitch, suitable for high density applications.

The connector housing is constructed from nickel plated steel providing enhanced shielding and mechanical protection. Contacts are made from brass and plated with gold to ensure high performance electrical connectivity and resistance to corrosion.

This model supports a mounting hardware configuration using 4 to 40 inserts, enabling secure and reliable assembly on circuit boards. Its electrical rating includes a maximum voltage of 1kV and a current capacity of 5A, making it suitable for varied electronic and power connector applications.

The thermoplastic insulator material is UL94V-0 rated and capable of handling process temperatures up to 260°C, ensuring durability under high temperature soldering conditions. The operating temperature range is wide, from -55°C to 105°C, accommodating demanding environmental conditions.

Boardlocks are incorporated to provide secure PCB retention, while ground indents enhance shielding and grounding effectiveness. The compact right angle design with stacked dual ports allows for efficient connector arrangements in constrained PCB layouts.

This connector is ideal for industrial electronics where multiple connector ports must be accommodated within limited space, including computer peripherals, communications equipment, and embedded systems.

Features dual ports optimized to save PCB space. Gold plated brass contacts ensure reliable electrical connections. Nickel plated steel shell provides improved shielding and durability. Supports mounting with 4 to 40 flush inserts for secure retention.

Operates safely up to 1kV voltage and 5A current capacity. High temperature UL94V-0 thermoplastic insulator rated for 105°C max. Suitable for applications requiring compact, stacked D-sub connectors. Includes boardlocks for extra PCB retention strength.
