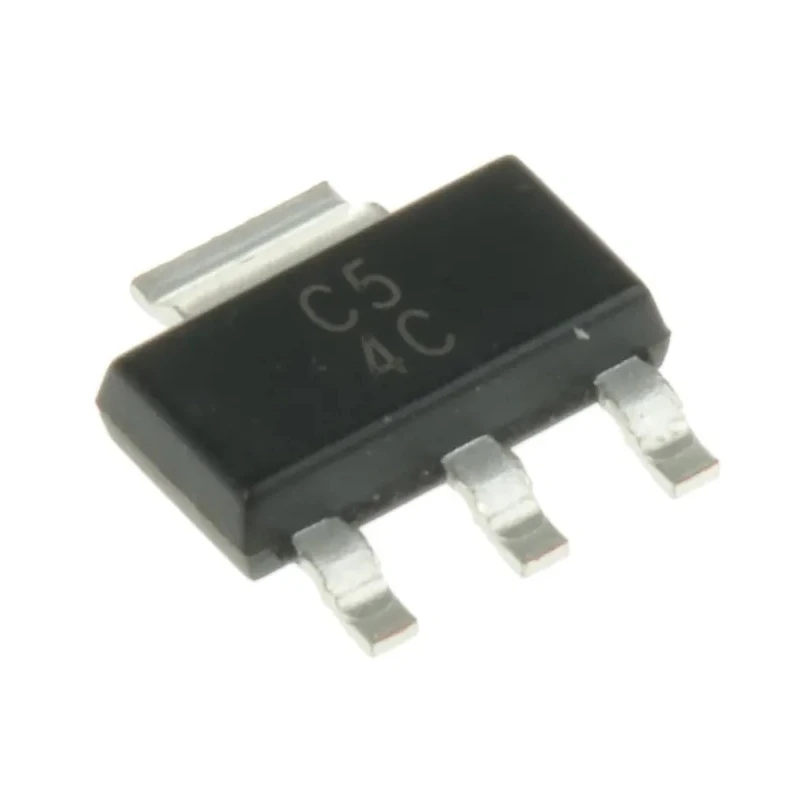

Texas Instruments Voltage Regulator UA78M05CDCY 25V SOT-223 4-Pin Linear Regulator

Texas Instruments UA78M05CDCY is a linear voltage regulator designed to provide a stable 5V output voltage with up to 0.5A output current in a compact SOT-223 4-pin surface mount package. It supports input voltages ranging from 7V to 25V, making it versatile for various electronic and industrial applications.

This voltage regulator features built-in thermal overload shutdown and internal current limiting mechanisms to protect the device under fault conditions. The quiescent current of 4.5mA ensures efficient power consumption, important for battery-powered and portable electronics.

Typical applications include telecommunications equipment, computing devices, and other portable electronic products requiring regulated 5V power supply. Its positive polarity and surface mount form factor facilitate integration on printed circuit boards.

The device dimensions of 6.5mm length, 3.5mm width, and 1.6mm height allow compact circuit layouts. The device offers maximum input voltage up to 25V and minimum input voltage of 7V. Designed for surface mount applications with positive polarity operation.

Features internal thermal overload protection and short-circuit current limiting for reliable performance. Compact dimensions simplify PCB design and reduce footprint. Quiescent current is low at 4.5mA ensuring energy-efficient operation.

Maximum operating temperature of 125°C allows use in harsh environments. Suitable for on-card voltage regulation in telecommunications and portable electronic devices. No external components required for standard operation enhances design simplicity.

This Texas Instruments UA78M05CDCY voltage regulator is a reliable component for designers requiring efficient and compact voltage regulation solutions. Explore more Voltage Regulators and power management ICs for your industrial and commercial needs on EnvMart.
