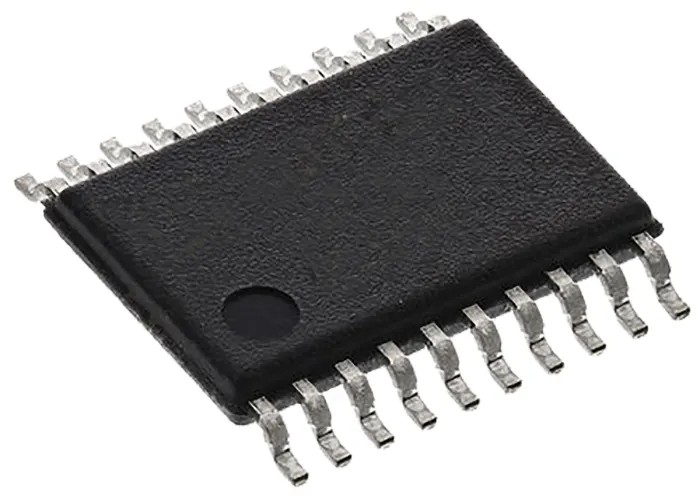

Texas Instruments Transceiver IC 1 Driver 4 Receiver LVDS LVTTL 20-Pin TSSOP SN65LVDT14PW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 6.5mm |
| Model | SN65LVDT14PW |
| Mount Type | Surface |
| Output type | LVTTL, LVDS |
| Series | SN65LVDT14 |
| Input Type | LVDS, LVTTL |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Transceiver |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Number of Drivers | 1 |
| Number of Receivers | 4 |
| Transmission Data Rate | 125Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Operates with a minimum supply voltage of 3V and maximum of 3.6V.
- Supports transmission data rate up to 125Mbps for high-speed data transfer.
- Includes differential input high and low threshold voltages of 100mV and -100mV respectively.
- Designed for surface mount applications with a compact 6.5mm length and 1.15mm height.
- Features ESD protection ensuring device reliability and durability.
- Suitable for operating temperatures from -40°C to 85°C, ideal for industrial environments.
- Complies with RoHS standards, ensuring environmental compliance.
- Part of the SN65LVDT14 series, specifically model SN65LVDT14PW.
Product Description
The Texas Instruments SN65LVDT14PW is a robust transceiver IC designed to facilitate communication with 1 LVDS driver and 4 LVTTL receivers, packaged in a compact 20-pin TSSOP form factor. It operates reliably within supply voltages ranging from 3V to 3.6V and supports a data transmission rate of 125Mbps, making it well-suited for high-speed interface applications.
Equipped with differential input thresholds of 100mV (high) and -100mV (low), this device ensures precise signal differentiation required for low-voltage differential signaling (LVDS). The IC's surface mount design, with dimensions of 6.5mm length and 1.15mm height, supports efficient PCB assembly and integration into compact electronic systems.
Engineered to operate in a wide temperature range from -40°C to 85°C, the SN65LVDT14PW suits demanding industrial, laboratory, and commercial environments. The built-in ESD protection enhances device longevity and safety during handling and operation.
Compliant with RoHS regulations, this transceiver IC aligns with current environmental standards and supports sustainable manufacturing practices. As part of the SN65LVDT14 series, the SN65LVDT14PW offers proven performance in LVDS communication technologies.
Operates with a minimum supply voltage of 3V and maximum of 3.6V for versatile application. Supports transmission data rate of 125Mbps for efficient data communication. Includes differential input high and low thresholds of 100mV and -100mV respectively.
Compact 20-pin TSSOP package suitable for surface mounting on PCBs. Wide operating temperature range from -40°C to 85°C for industrial use. ESD protection provides enhanced device reliability and safety. RoHS compliant ensuring environmental and safety standards.
Part of the SN65LVDT14 series by Texas Instruments.
This transceiver IC is ideal for applications requiring low voltage differential signaling such as Firewire, SATA, and SCSI interfaces in industrial, laboratory, and commercial electronic systems.
Explore more semiconductor solutions in the LVDS Interface IC category on EnvMart to find compatible and complementary components.
Explore more products in our LVDS Interface Ics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for the SN65LVDT14PW is 3.6V.
It supports a transmission data rate of up to 125Mbps.
This model has a length of 6.5mm and a height of 1.15mm.
It operates within a temperature range of -40°C to 85°C.
The SN65LVDT14PW includes 1 driver and 4 receivers.
This IC is designed for surface mount applications.
The differential input high threshold voltage is 100mV and the low threshold voltage is -100mV.
Yes, it complies with RoHS standards, ensuring environmental compliance.
It provides LVTTL and LVDS output types.
This model is part of the SN65LVDT14 series.
The country of origin for this transceiver IC is India.
It is suitable for applications requiring low voltage differential signaling, such as Firewire, SATA, and SCSI interfaces.
