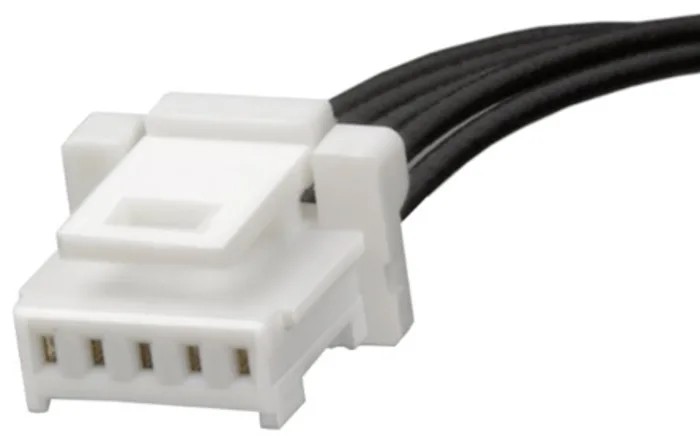

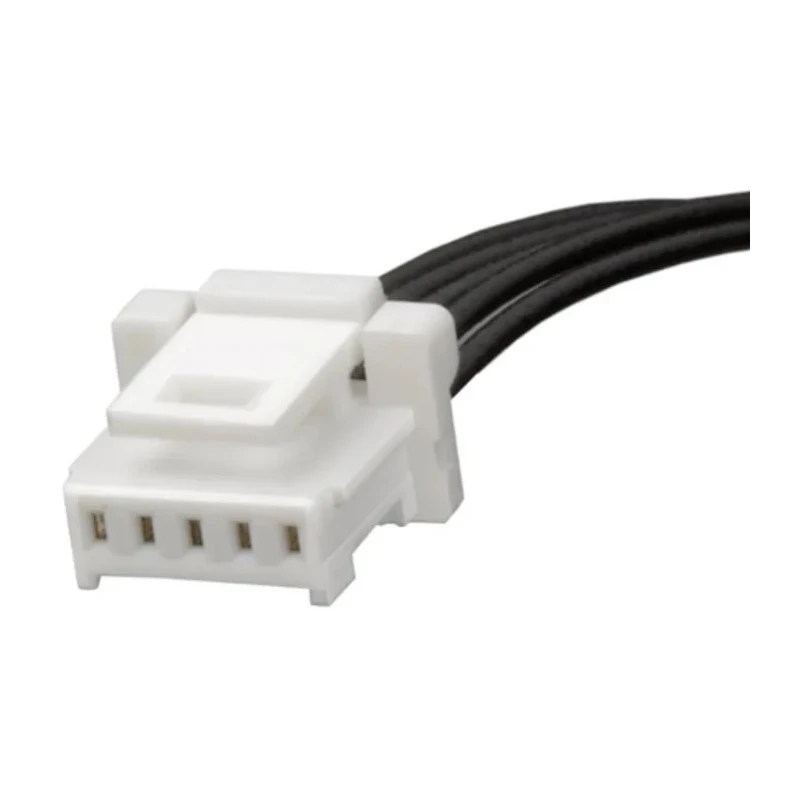

Molex Wire to Board Cable 5 Way Female PicoClasp Connector 300 mm Nylon Jacket 15133-0503

Molex 15133-0503 wire to board cable is a high-quality cable assembly designed for reliable connections in electronic and electrical systems. This product features 5 way female PicoClasp connectors at both ends with a 1.0 mm pitch, suitable for wire-to-board connections. The connectors provide a compact and space-saving solution with terminals designed for low insertion and withdrawal force, allowing easy mating and unmating.

The cable has a length of 300 mm and is constructed using UL1061 discrete wires enclosed in a durable black nylon jacket. This construction ensures flexibility, electrical insulation, and protection against mechanical stress. With a voltage rating of 50 Vrms, this cable assembly is designed to operate safely within the specified electrical limits.

A positive locking system on the connectors guarantees secure attachment to the mating PCB headers, which are compatible with Molex 501331 and 501568 series PicoClasp connectors. The pin-to-pin mapping facilitates straightforward plug-and-play use, simplifying design and prototyping processes.

Compliance with environmental standards such as REACH and RoHS confirms the product’s adherence to strict regulations for hazardous substances, making it suitable for global applications. Typical uses include consumer devices like fitness equipment, home entertainment systems, and portable electronics, as well as industrial process controls and medical patient monitoring devices.

The cable is terminated with 5 contact 1.0 mm pitch female PicoClasp connectors. Constructed using UL1061 discrete wires for ease of design and prototyping. The black nylon jacket provides durability and insulation for the cable.

The cable assembly supports up to 50 Vrms voltage rating. The positive locking mechanism ensures secure mating with compatible headers. Designed for easy mating and unmating with low insertion and withdrawal force. Complies with REACH and RoHS standards for environmental compliance.

Ideal for applications in consumer electronics, industrial controls, and medical equipment.

This Molex wire to board cable belongs to a range of cable assemblies designed to support compact and high-density wiring requirements in modern electronics. It is an excellent choice for engineers and technicians requiring durable, compliant, and easy-to-use connectors for wire-to-board interconnections.
