Texas Instruments 2-Channel Class D Audio Amplifier 20W 24-Pin HTSSOP TPA3123D2PWP

Free Delivery in India | Lowest Global Shipping Charges

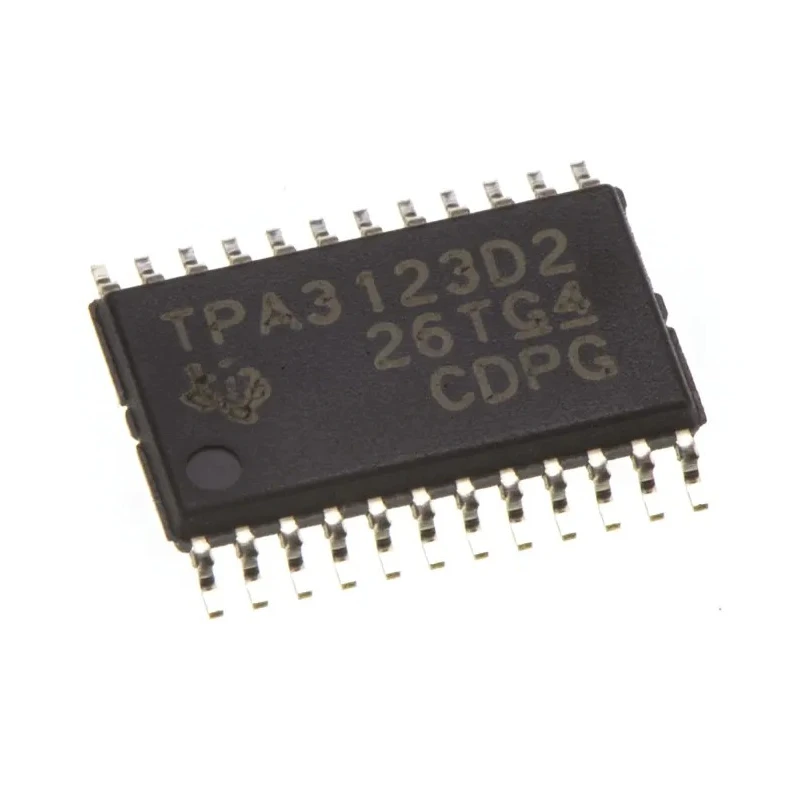

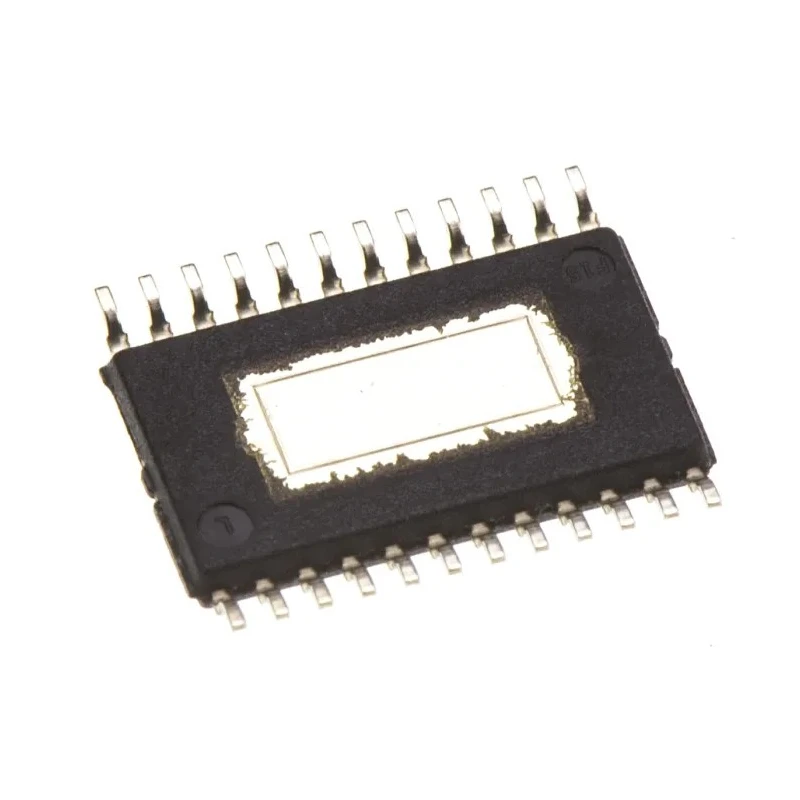

Texas Instruments 2-Channel Class D Audio Amplifier 20W 24-Pin HTSSOP TPA3123D2PWP

Name: Texas Instruments 2-Channel Class D Audio Amplifier 20W 24-Pin HTSSOP TPA3123D2PWP
Brand: Texas Instruments
SKU: 202521
Price: 11.13 USD
Availability: InStock



Category Audio Amplifier ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.1mm
Length	7.8mm
Model	TPA3123D2PWP
Width	4.4mm
Output Power	20W
Mount Type	Surface
Series	TPA3123D
Maximum Operating Temperature	85°C
Package Type	HTSSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	24
Maximum Supply Voltage	28V
Minimum Supply Voltage	12V
Amplifier Type	Audio
Amplifier Class	Class D

Key Features

Provides high efficiency Class D amplification suitable for stereo audio equipment.
Operates with a supply voltage range from 12V to 28V.
Compact dimensions with 7.8mm length, 4.4mm width, and 1.1mm height.
Designed for surface mount applications with a pin count of 24.
Wide operating temperature range from -40°C to 85°C suitable for automotive and consumer electronics.
Delivers 20W total output power optimized for speaker applications.
Offers high integration for space-saving PCB layouts in audio and multimedia devices.
Ideal for use in televisions, PDAs, computers, and mobile audio systems.

Product Description

Texas Instruments TPA3123D2PWP is a highly integrated 2-channel Class D audio power amplifier IC delivering 20W output power with high efficiency and compact size in a 24-pin HTSSOP surface-mount package.

The amplifier supports a wide supply voltage range from 12V to 28V and operates reliably within temperatures from -40°C up to 85°C, making it suitable for various industrial and automotive audio applications.

This IC features stereo operation with class D amplifier technology, ensuring low power dissipation and improved thermal performance for audio systems such as televisions, personal digital assistants (PDAs), computers, and mobile audio devices.

The physical dimensions of 7.8mm length, 4.4mm width, and 1.1mm height enable space-efficient PCB layouts, while the 24-pin configuration facilitates surface mount assembly, improving production efficiency.

Its robust design meets RoHS compliance, promoting environmental sustainability in electronic manufacturing. High efficiency Class D audio amplifier for multi-channel applications. Wide supply voltage range enables flexible system designs.

Compact HTSSOP package minimizes board space requirements. Wide operating temperature suited for automotive and industrial use. Surface mount pin configuration ideal for automated assembly. 20 watt audio output power suitable for speaker driving.

Designed for applications including stereo audio equipment and portable devices. RoHS compliant ensuring reduced hazardous substances. Reliable audio performance with low distortion and improved thermal management.

This Texas Instruments audio amplifier IC is well suited for industrial, automotive, consumer electronics, and communication device manufacturing, enhancing sound quality and efficiency in varied audio applications.
