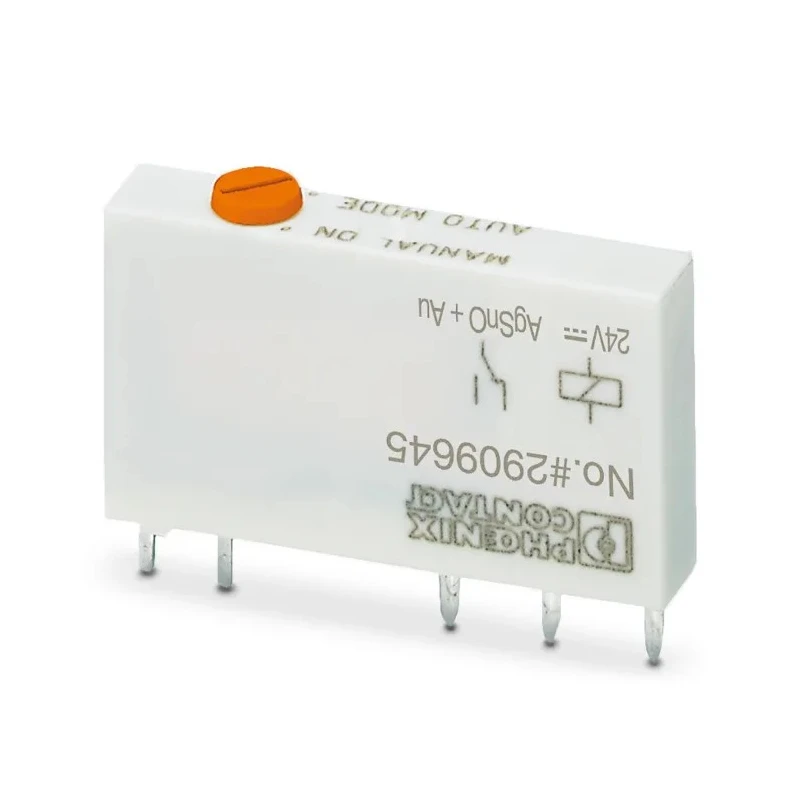

Phoenix Contact PCB Power Relay 24V dc Coil 6A SPDT REL-MR- 24DC/21AU/MS 2909645

Phoenix Contact 2909645 is a PCB power relay with a 24V dc coil and a switching current rating of 6A configured as SPDT (single pole double throw). This plug-in miniature power relay from the REL-MR series is designed for efficient power switching on printed circuit boards in various industrial and automation contexts.

The relay coil operates at 24V dc with a low coil power consumption of 0.17W, and the coil resistance is 3.4 kΩ, ensuring stable and reliable actuation. It is capable of switching AC and DC voltages up to 250V, making it suitable for controlling moderately high power electrical circuits, loads, or signaling devices.

Its compact size with dimensions of 28mm height, 16mm length, and 5mm width enables installation in tight spaces on PCBs. The PCB pin terminals provide secure and convenient mounting and electrical connection. Gold plated contact material enhances electrical conductivity and durability by minimizing contact resistance and wear during switching cycles.

The relay supports a wide operating temperature range from -40°C to 85°C, making it suitable for demanding industrial, automation, HVAC, and control system environments. This product complies with RoHS directives, affirming its environmental and safety compliance.

Manufactured in the Czech Republic, this power relay meets high-quality industrial manufacturing standards, assuring reliability and long service life. It is ideal for industrial control panels, signal conditioning, electrical appliance control circuits, and other applications requiring compact, reliable Power Relays with moderate switching capacities.

The relay features a single pole double throw contact configuration. Operates with a coil voltage of 24V DC ensuring efficient coil power consumption of 0.17W. Supports switching voltages up to 250V AC and DC for versatile control.

Designed for PCB mounting with PCB pin terminals for secure installation. Compact dimensions of 28mm height, 16mm length, and 5mm width suit tight PCB layouts. Gold plated contacts enhance conductivity and reduce contact resistance.

Coil resistance is rated at 3.4 kΩ for stable coil operation. Engineered to operate between -40°C and 85°C suitable for harsh environments. Complies with RoHS safety and environmental standards. Manufactured in the Czech Republic ensuring quality industrial standards.
