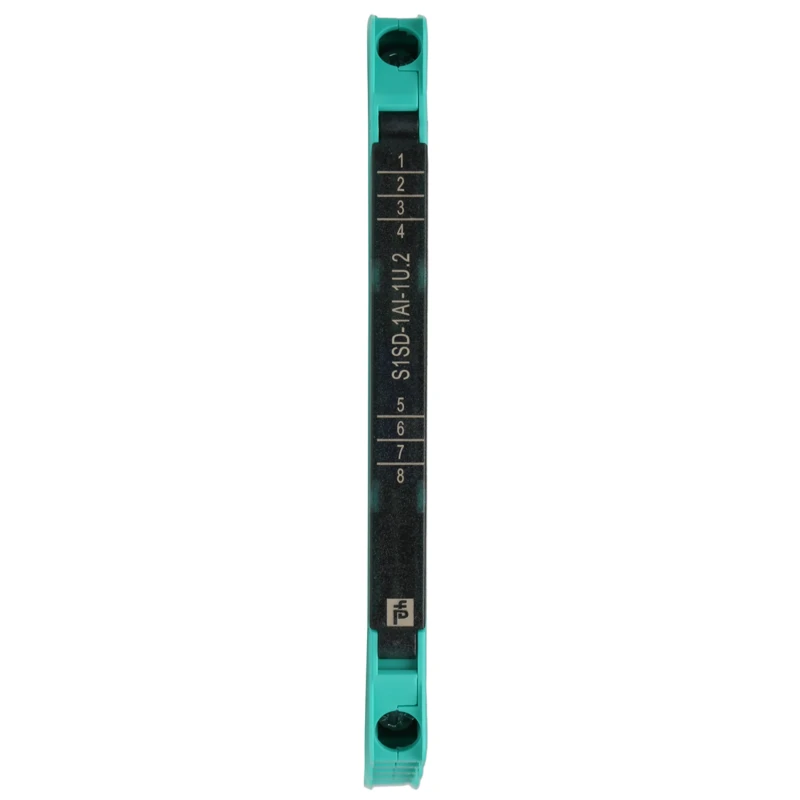

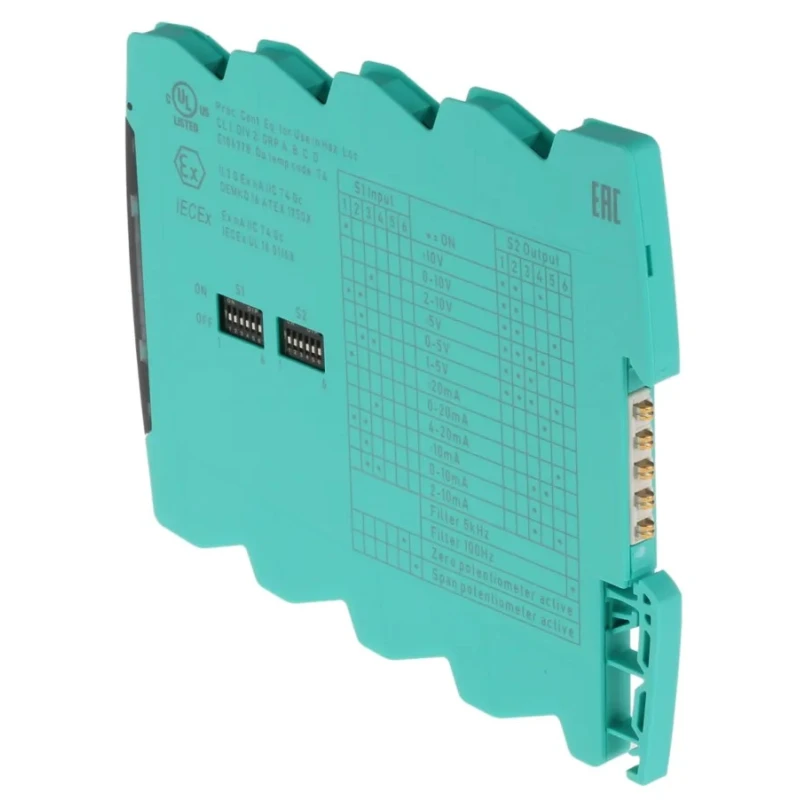

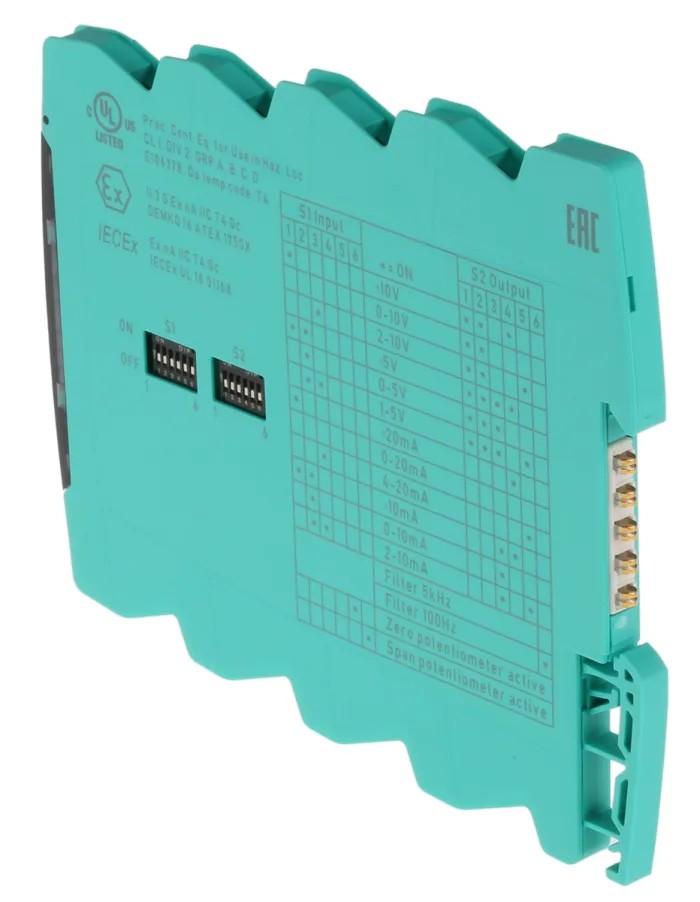

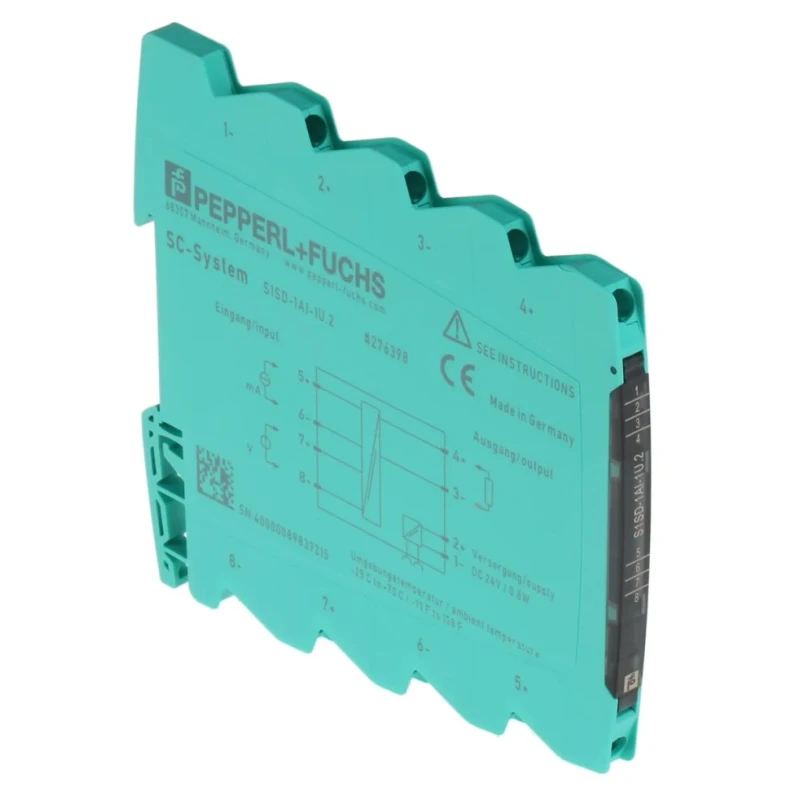

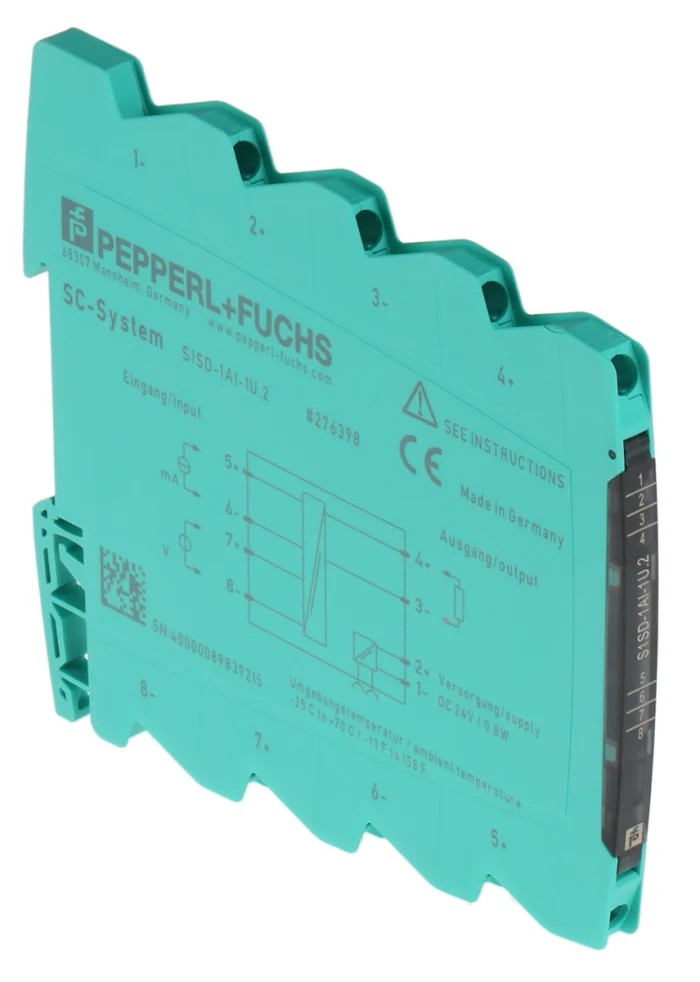

Pepperl + Fuchs S1SD Series Signal Conditioner Current/Voltage Input Output 16.8V dc 31.2V dc
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Pepperl + Fuchs |
| Model | S1SD |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | S1SD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20 mA |
| Input Range | 30 V, 50 mA, ±10 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 10 mA, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 mA, 2 → 10 V, 4 → 20 mA |
| Supply Voltage | 16.8, 31.2V dc |
| Hazardous Area Certification | DEMKO 16 ATEX 1750X |
| Input Signal Type | Current/Voltage |
Key Features
- Supports current and voltage input signals for versatile application.
- Outputs current and voltage signals with various selectable ranges.
- Supply voltage options include 16.8 V dc and 31.2 V dc for flexible power configurations.
- Compact DIN rail mounting saves panel space and facilitates installation.
- Wide operating temperature range from -25°C to 70°C for harsh environments.
- High-quality galvanic isolation ensures signal integrity and safety.
- Screw terminal type provides secure and reliable electrical connections.
- Certified with relevant international standards including DEMKO 16 ATEX 1750X for hazardous areas.
Product Description
Pepperl + Fuchs S1SD-1AI-1U.2 is a precision signal conditioner series designed for industrial and process automation applications, providing accurate current and voltage input and output signals. It supports a wide variety of input ranges including 30 V, 50 mA, ±10 mA, ±10 V, ±20 mA and more, facilitating integration with diverse field devices.
The unit operates on supply voltages of 16.8 V dc and 31.2 V dc, offering flexibility for different system requirements. Featuring a compact design with a 6 mm module width and 97 mm height, it mounts easily on standard DIN rails, reducing cabinet space usage and installation complexity.
Designed to perform reliably in a broad temperature range from -25°C to 70°C and equipped with screw terminals for robust wiring, this signal conditioner offers high-quality galvanic isolation rated at 300 V operating voltage and 3 kV test voltage to protect sensitive instruments and ensure signal accuracy.
Certified to meet stringent industrial standards such as Directive 2014/34/EU and Directive 2014/30/EU, EN 61326-1:2013, IECEx UL approval, and others, it is suitable for use in hazardous and demanding environments including manufacturing, HVAC, process control, and electrical automation.
Supports multiple current and voltage input ranges for compatibility. Outputs corresponding current and voltage signals within defined ranges. DIN rail mountable for convenient electrical panel integration. Wide temperature tolerance ensures durability in industrial conditions.
Galvanic isolation protects equipment and enhances signal reliability. Screw type terminals allow secure and maintenance-friendly wiring. Certified for hazardous area applications via ATEX and IECEx approvals. Compact form factor minimizes space requirements in control cabinets.
Package includes one Pepperl + Fuchs S1SD-1AI-1U.2 signal conditioner module. The product is manufactured in Germany and supplied new.
This high-performance signal conditioner is ideal for industrial automation, process control, electrical testing, and monitoring applications that require precise and reliable signal transmission. Explore more advanced Signal Conditioners at EnvMart’s Electronics & Electricals category for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a variety of input ranges including 30 V, 50 mA, ±10 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 10 mA, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 mA, 2 → 10 V, and 4 → 20 mA.
The output ranges include 0 mA, ±10 V, ±20 mA, ±5 V, 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, and 4 → 20 mA.
It operates on supply voltages of 16.8 V dc and 31.2 V dc, providing flexibility for different system requirements.
The S1SD signal conditioner operates within a temperature range of -25°C to 70°C, making it suitable for harsh environments.
This model is designed for DIN rail mounting, which helps save panel space and facilitates easier installation.
It features screw terminals, providing secure and reliable electrical connections for wiring.
It is certified with relevant international standards including DEMKO 16 ATEX 1750X, making it suitable for hazardous areas.
This signal conditioner has an IP rating of IP20, indicating its level of protection against solid objects.
It has a single channel, making it suitable for applications requiring one input and output signal.
The S1SD can process both current and voltage input signals, allowing for versatile application in various systems.
This unit has a compact design with a module width of 6 mm and a height of 97 mm, ideal for space-constrained installations.
It is manufactured in Germany, ensuring adherence to high industrial standards.
