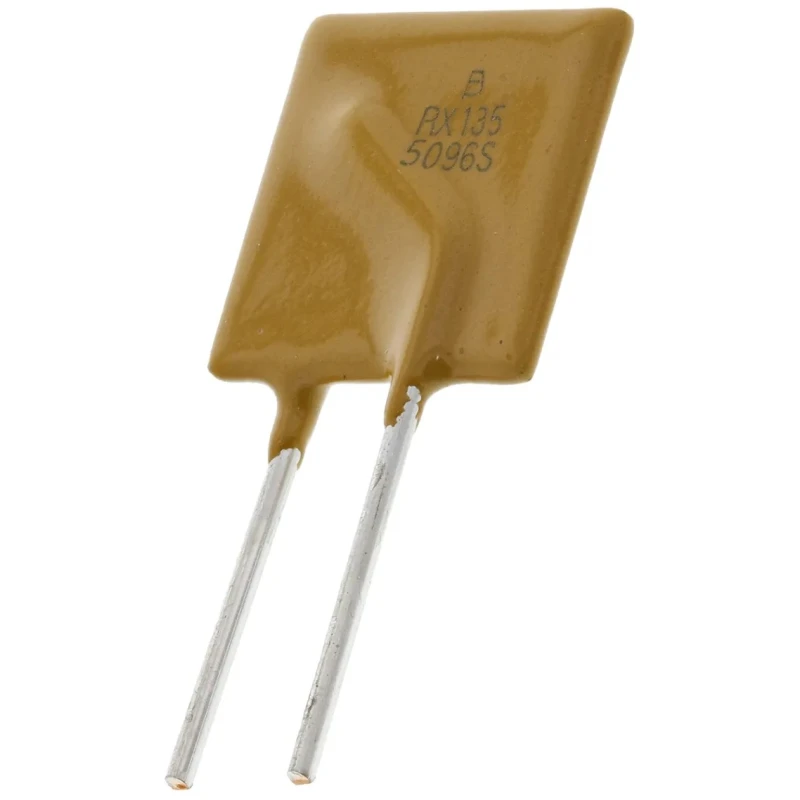

Bourns Resettable Fuse 72V 1.35A Hold Current Radial Lead MF-RX135/72-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 72V |
| Brand | Bourns |
| Height | 18.26mm |
| Length | 12.26mm |
| Model | MF-RX135/72-0 |
| Width | 3.1mm |
| Current Rating | 40A |
| Series | MF-RX/72 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 2.7A |
| Power Dissipation | 1.7W |
| Standards/Approvals | RoHS, UL |
| Lead Diameter | 0.81mm |
| Time to Trip | 9.6s |
| Hold Current | 1.35A |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 300mΩ |
| Lead Orientation | Radial |
Key Features
- This resettable fuse automatically resets itself thousands of times to prevent damage from overcurrent situations.
- Constructed with cured, flame retardant epoxy polymer insulation meeting UL 94V-0 standards.
- Radial lead orientation facilitates easy PCB mounting and soldering.
- Maintains low resistance and rapidly switches to high resistance under electrical overload or short-circuit conditions.
- Small size allows integration without requiring a fuseholder, saving board space.
- Widely used in security systems, power supplies, transformers, automotive, medical, and instrumentation equipment.
- Complies with RoHS and UL safety and environmental standards.
- Power dissipation rating of 1.7W ensures reliable performance under typical operating conditions.
Product Description
Bourns MF-RX135/72-0 resettable fuse is designed for electrical and electronic circuit protection, with a voltage rating of 72V and a hold current of 1.35A. It features radial leads, cured flame retardant epoxy insulation, and complies with UL 94V-0 fire safety standards.
This fuse rapidly transitions from a low resistance state to a high resistance state when subjected to electrical overload or short circuits, thereby protecting sensitive components. Upon removal of the fault condition and power, the fuse resets automatically and returns to a low resistance state, enabling maintenance-free operation over thousands of cycles.
The compact dimensions (12.26mm length, 18.26mm height, and 3.1mm width) allow easy PCB integration without requiring additional fuse holders. Its radial lead design with 0.81mm diameter supports PCB mounting and soldering efficiency.
Typical applications include security systems, power supplies and transformers, power switching devices, automotive and medical equipment, instrumentation, control systems, computers, peripherals, audio-visual, and telecommunications equipment.
This resettable fuse automatically resets itself thousands of times to prevent damage from overcurrent situations. Constructed with cured, flame retardant epoxy polymer insulation meeting UL 94V-0 standards. Radial lead orientation facilitates easy PCB mounting and soldering.
Maintains low resistance and rapidly switches to high resistance under electrical overload or short-circuit conditions. Small size allows integration without requiring a fuseholder, saving board space. Widely used in security systems, power supplies, transformers, automotive, medical, and instrumentation equipment.
Complies with RoHS and UL safety and environmental standards. Power dissipation rating of 1.7W ensures reliable performance under typical operating conditions.
Choose Bourns resettable fuses for reliable circuit protection in industrial, commercial, and laboratory environments. Explore more products in the Resettable Fuse category at EnvMart for your diverse electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 72V, making it suitable for various electrical applications.
The hold current for this resettable fuse is 1.35A, allowing it to maintain normal operation under specified conditions.
The dimensions are 12.26mm in length, 18.26mm in height, and 3.1mm in width, allowing for compact PCB integration.
The maximum operating temperature for the Bourns resettable fuse is 85°C, ensuring it operates effectively within this thermal limit.
This unit can operate at a minimum temperature of -40°C, making it suitable for a wide range of environments.
It features a radial lead orientation, which facilitates easy mounting and soldering on PCBs.
The trip current for this resettable fuse is 2.7A, which triggers the fuse to switch to a high resistance state during overload conditions.
The power dissipation rating is 1.7W, ensuring reliable performance under typical operating conditions.
It complies with RoHS and UL safety and environmental standards, ensuring it meets regulatory requirements.
The time to trip is 9.6 seconds, which indicates how quickly it reacts to overload situations.
The minimum resistance is 0.12Ω, which helps maintain low resistance during normal operation.
It is widely used in security systems, power supplies, transformers, automotive, medical, and instrumentation equipment.
