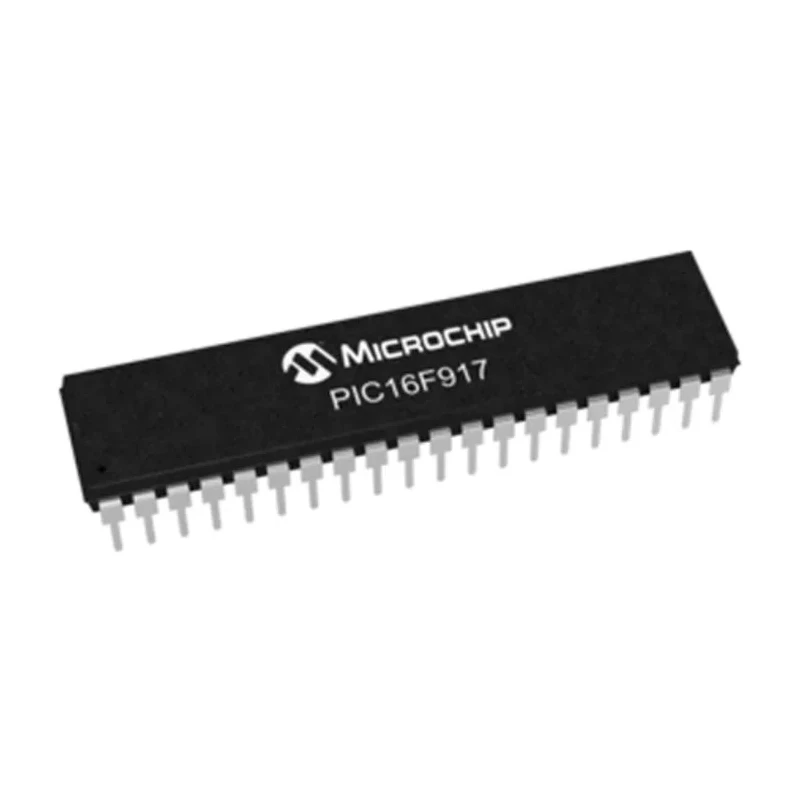

Microchip PIC16F917-I/P 8-Bit PIC Microcontroller, 40 MHz, 14kB Flash, PDIP, 40-Pin

Free Delivery in India | Lowest Global Shipping Charges

Microchip PIC16F917-I/P 8-Bit PIC Microcontroller, 40 MHz, 14kB Flash, PDIP, 40-Pin

Name: Microchip PIC16F917-I/P 8-Bit PIC Microcontroller, 40 MHz, 14kB Flash, PDIP, 40-Pin
Brand: Microchip
SKU: 84768
Price: 7.63 USD
Availability: InStock



Category Microcontroller Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.95mm
Length	53.21mm
Model	PIC16F917-I/P
Width	14.73mm
Mount Type	Through Hole
Series	PIC16F
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Ram size	352bit
Pin Count	40
Maximum Supply Voltage	5.5V
Maximum Power Dissipation Pd	800mW
Minimum Supply Voltage	2V
Device Core	PIC
Program Memory Size	14kB
Maximum Clock Frequency	40MHz
Number of Programmable I/Os	35
Analogue Comparators	2
Maximum Expanded Memory Size	8bit
Number of Timers	3
Instruction Set Architecture	RISC
ADCs	8 x 10 Bit
Program Memory Type	FLASH

Key Features

Operates at a maximum clock frequency of 40 MHz for fast processing.
Features a compact 40-pin PDIP package for easy through-hole mounting.
Includes 14kB FLASH program memory and 352 bytes RAM.
Supports 8-bit data bus width and RISC instruction set architecture.
Provides 35 programmable I/Os and includes 8 x 10-bit ADC channels.
Offers two analogue comparators and three integrated timers.
Wide supply voltage range from 2V to 5.5V.
Operating temperature from -40°C to 85°C suitable for industrial environments.

Product Description

The Microchip PIC16F917-I/P is a versatile 8-bit PIC microcontroller designed for a wide range of embedded control and automation applications. Featuring a high performance CPU operating at up to 40 MHz, it delivers robust computational capability and fast task execution on the Mid-Range core architecture.

This device comes in a standard 40-pin PDIP package, offering ease of use for through-hole mounting and facilitating straightforward integration into development boards and custom circuits. The microcontroller supports 14kB of FLASH program memory and 352 bytes of RAM, allowing substantial code space for complex firmware and efficient operation.

Engineered for flexibility, the PIC16F917-I/P supplies 35 programmable I/O lines and 8 channels of 10-bit ADC for real-time data acquisition and processing, making it suitable for sensor interfacing and control tasks. Two integrated analogue comparators and three timers deliver essential support for signal conditioning and timing requirements in industrial, laboratory, and commercial systems.

The microcontroller incorporates advanced features such as an LCD module driver, capture, compare, and PWM modules, plus synchronous serial port (SSP) with I2C and a universal asynchronous receiver/transmitter (AUSART), expanding its applicability to display control, communication, and automation workflows.

Operating from a wide voltage range (2V to 5.5V) and a broad temperature span (-40°C to 85°C), the PIC16F917-I/P is reliable for demanding environments and applications including industrial automation, instrumentation, energy management devices, consumer electronics, and laboratory systems. Its power dissipation rating is 800mW, with robust power management features including brown-out reset and watchdog timer.

The compact package dimensions (Length 53.21mm, Width 14.73mm, Height 4.95mm) ensure suitability for space-constrained PCB designs, while the RISC instruction set and hardware stack simplify code development and enhance execution efficiency.
