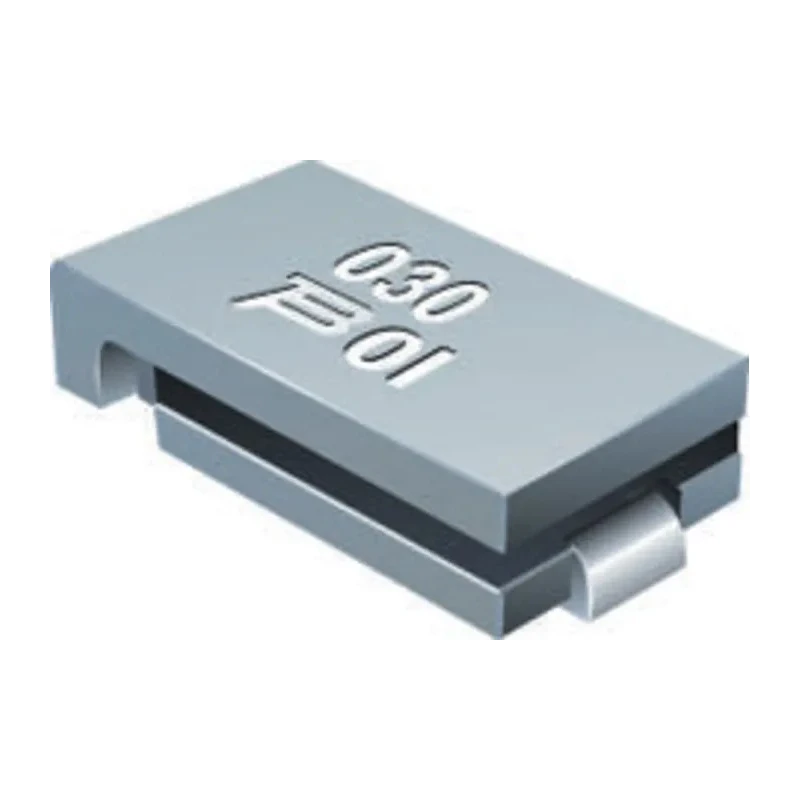

Bourns Resettable Fuse 15V 1.5A Hold Current 100A Current Rating MF-SM150-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 15V |
| Brand | Bourns |
| Height | 3mm |
| Length | 9.5mm |
| Model | MF-SM150-2 |
| Width | 6.71mm |
| Current Rating | 100A |
| Series | MF-SM |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 3425 |
| Trip Current | 3A |
| Power Dissipation | 1.9W |
| Terminal Material | Tin Plated Brass |
| Standards/Approvals | RoHS |
| Time to Trip | 5s |
| Hold Current | 1.5A |
| Minimum Resistance | 0.06Ω |
| Maximum Resistance | 250mΩ |
Key Features
- Provides automatic resettable protection against excessive currents without requiring fuse replacement.
- Compact size with dimensions of 9.5mm length, 6.71mm width, and 3mm height.
- Trip current is rated at 3A with a time to trip approximately 5 seconds.
- Terminal material is tin plated brass for reliable electrical connection.
- Operates effectively within temperature range of -40°C to 85°C with power dissipation of 1.9W.
- Complies with RoHS standards ensuring compliance with environmental requirements.
- Packaged on EIA 481-2 standard reels suitable for automated assembly and surface mount technology.
- Applications include security systems, power supplies, automotive and medical equipment, and telecommunications devices.
Product Description
Bourns MF-SM150-2 resettable fuse is a surface mount device developed for protecting electrical and electronic circuits by automatically switching to a high resistance state under overload conditions and returning to low resistance when fault is cleared. Rated at 15V with a hold current of 1.5A and a current rating of 100A, it offers effective circuit protection for various industrial and commercial applications.
The device dimensions are 9.5mm length, 6.71mm width, and 3mm height, making it suitable for compact PCBs. The tin plated brass terminal material ensures reliable electrical contacts and durability under operating stresses. Trip current is set at 3A, with a typical time to trip of 5 seconds to protect against short circuits and overcurrent conditions while sustaining minimal disruption.
This resettable fuse adheres to RoHS standards and is packaged in reels compliant with EIA 481-2, facilitating automated SMT assembly in manufacturing processes. It dissipates 1.9W power and operates reliably between -40°C and 85°C, suitable for a wide range of industrial environments.
Self-resetting fuse to avoid replacement and improve maintenance efficiency. Compact SMT form factor for high-density circuit integration. Robust operation with stable resistance characteristics and fast response time. Reliable terminal connection with tin plated brass construction.
RoHS compliant to ensure environmental safety. Ideal for use in security systems, power supplies, automotive, medical instrumentation, and telecommunications. Packaged in reel form for ease of automated manufacturing.
This product is well-suited for industrial, laboratory, telecommunications, automotive, and manufacturing applications requiring circuit overcurrent protection with automatic reset capability. Explore more circuit protection products and Resettable Fuses in EnvMart's comprehensive electronics category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 1.5A.
The trip current for the MF-SM150-2 is rated at 3A.
This model has dimensions of 9.5mm in length, 6.71mm in width, and 3mm in height.
The maximum operating temperature for the MF-SM150-2 is 85°C.
The minimum operating temperature is -40°C.
The power dissipation of the MF-SM150-2 is 1.9W.
This resettable fuse has a current rating of 100A.
The terminals are made of tin plated brass, ensuring reliable electrical connections.
It is packaged on EIA 481-2 standard reels, suitable for automated assembly and surface mount technology.
This resettable fuse is suitable for applications including security systems, power supplies, automotive, medical equipment, and telecommunications devices.
It complies with RoHS standards, ensuring it meets environmental requirements.
The time to trip for this resettable fuse is approximately 5 seconds.
