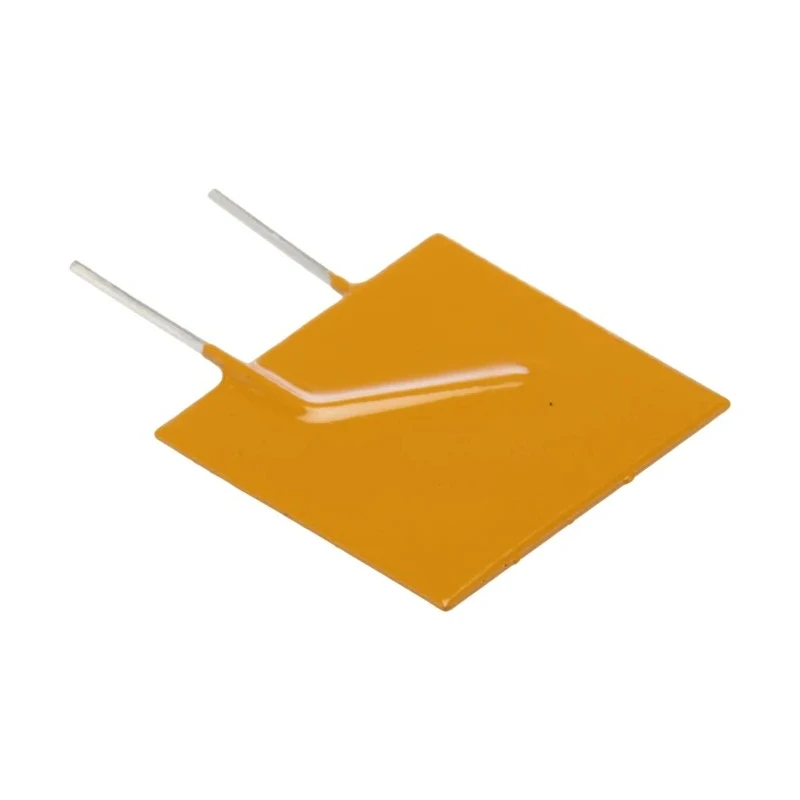

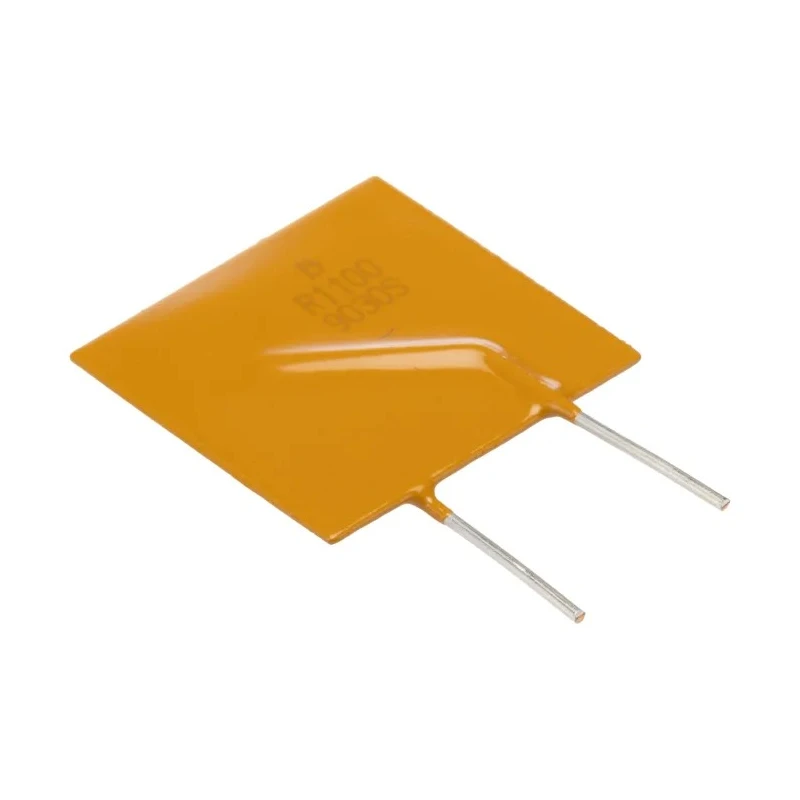

Bourns 11 A Resettable Fuse, 16V, 100A Current Rating, Radial Lead MF-R1100

Bourns MF-R1100 Resettable Fuse is a high-performance protection device designed for circuits requiring reliable overload and short circuit protection at 16 volts and an 11 ampere hold current.

This radial leaded fuse belongs to the MF-R series and features a robust cured epoxy polymer that meets UL 94V-0 flame retardant standards, ensuring safety and durability in industrial, commercial, and automotive applications.

The fuse is rated at 100A current with a trip current of 22A and a time to trip of approximately 20 seconds. Its compact size of 24.2 mm length, 3 mm width, and 32.9 mm height makes it suitable for space-constrained PCB assemblies.

The device rapidly switches from a low resistance state to a high resistance state during electrical faults, providing effective circuit interruption and automatically resetting once the fault condition is cleared and the power is removed. This allows for thousands of automatic resets, eliminating the need for fuse replacement or maintenance.

Standard certifications include UL and RoHS compliance, confirming quality and environmental safety standards. The lead wires have a diameter of 0.81 mm and a radial orientation for through-hole mounting flexibility.

This resettable fuse is ideal for protecting sensitive electronics in security systems, power supplies, transformers, automotive devices, medical equipment, instrumentation, control systems, computers, peripherals, audio-visual, and telecommunications applications.

The package contents include one Bourns MF-R1100 resettable fuse supplied in a bag, ready for insertion into automated manufacturing processes. This fuse automatically resets after fault clearance, providing continuous circuit protection.

Maintenance free design without need for fuse holder simplifies installation. Compact form factor ideal for PCB mounting in electronic devices. Wide operating temperature range from -40°C to 85°C supports diverse environments.
