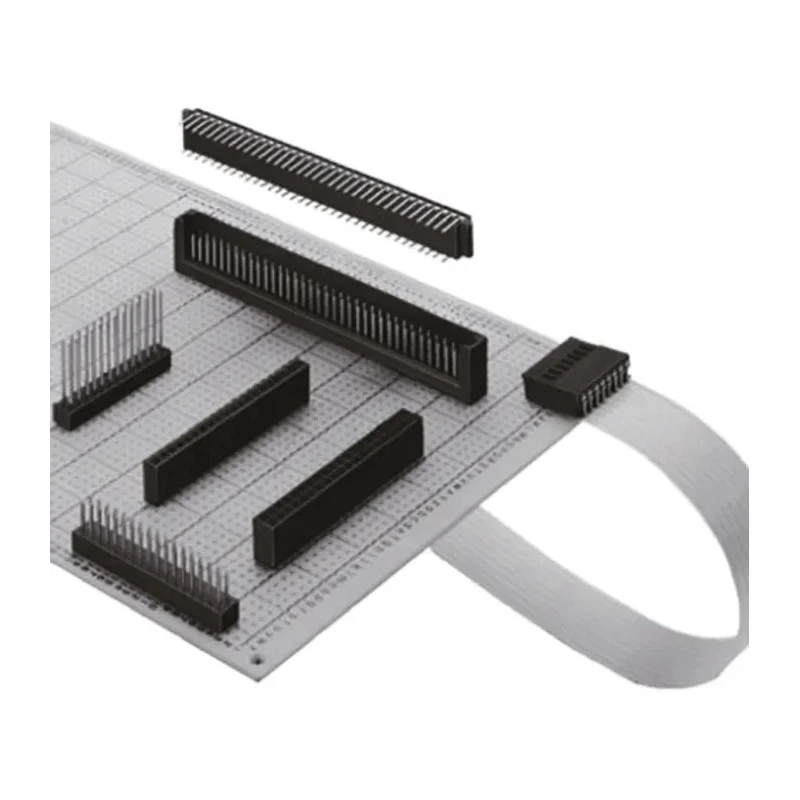

Hirose HIF3H Series Straight Through Hole PCB Socket, 12-Contact, 1 Row, 2.54 mm Pitch, 12A, 300V HIF3H

Hirose HIF3H Series Straight Through Hole PCB Socket model HIF3H provides a robust and reliable solution for board-to-board connections. This 12-contact, single-row socket features a precise 2.54 mm pitch designed for secure solder termination on PCBs. It supports a continuous current carrying capacity of 12 amperes and withstands voltages up to 300 volts, ensuring optimal electrical performance in demanding industrial environments.

The housing is made of black UL94V-0 rated polybutylene terephthalate (PBT) material, offering excellent flame resistance and mechanical durability. Contacts are fabricated from bronze and plated with gold selectively, enhancing conductivity and corrosion resistance. The through-hole mount type and straight orientation make this socket easy to install and reliable in use.

The socket operates efficiently in extreme temperatures ranging from -55°C to 85°C, making it suitable for harsh environmental conditions. Polarization guides are incorporated to prevent incorrect insertion, enhancing assembly accuracy and reducing connection errors. This product does not carry specific certifications or approvals but is built following industry quality standards.

Typical applications include computer systems, termination equipment, electronic instrumentation, and office automation devices where reliable PCB socket connectors are essential for operational stability. The HIF3H series is a trusted component in demanding board-to-board interfacing applications.

The socket features a single row of 12 female contacts designed for board-to-board connection. The socket supports a current rating of 12 amperes and an operating voltage of 300 volts. The housing is polybutylene terephthalate with bronze contact material plated with gold.

The mount type is through hole with straight orientation for secure PCB connection. Operates within a temperature range of -55°C to 85°C for high reliability. Includes polarization guides to prevent mis-insertion, improving assembly accuracy.

Ideal for use in computers, electronic equipment, and office automation machines.

This Hirose HIF3H PCB socket is a critical component for electronic manufacturing, providing secure and reliable board-to-board connections. Explore more products in the PCB Sockets category at EnvMart for comprehensive electronics component solutions.
