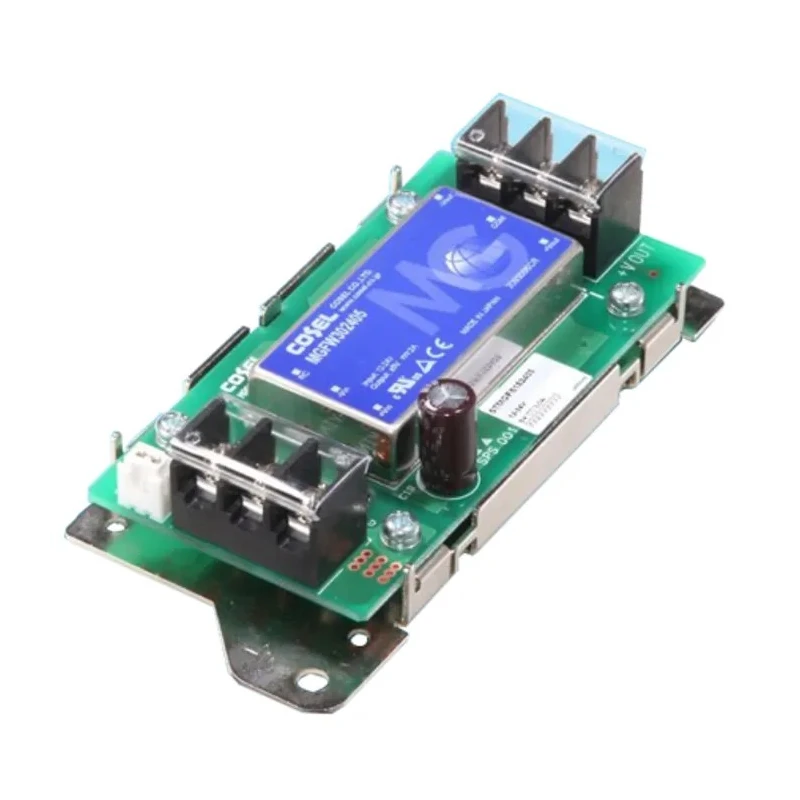

Cosel STMGFW Series Isolated DC-DC Converter 10 V and -10 V Output, 2 A, 76 V DC Input, 20 W Power, PCB Mount STMGFW304805-N1
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Converters / DC-DC Converters Cosel STMGFW DC/DC Converter, 10V, 5 V/ 2 A, 76V d |
| Brand | Cosel |
| Efficiency | 85% |
| Length | 117mm |
| Model | STMGFW304805-N1 |
| Depth | 27mm |
| Gross Weight | 140g |
| Width | 52mm |
| Mount Type | PCB |
| Series | STMGFW |
| Minimum Operating Temperature | 70°C |
| Number of outputs | 2 |
| Ripple and Noise | 200mV |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 76V dc |
| Standards/Approvals | cUL, UL, CE, CSA, RoHS, EN |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 10, 5V |
| Output Current 1 | 2A |
| Output Voltage Adjustment Range | 4.93 to 5.24 V |
| Isolation Voltage | 500V dc |
| Output Voltage 2 | -10V |
Key Features
- Isolated unit with cover for enhanced protection.
- Wide DC input voltage range from 18 V to 76 V.
- Provides two outputs with adjustable voltage range around 5 V output.
- Built-in protections including overcurrent and overvoltage safeguards.
- High efficiency of approximately 85% ensuring energy saving.
- Compact PCB mount design with dimensions 117mm x 52mm x 27mm.
- High isolation voltage rated at 500 V DC.
- Certified to global standards including cUL, UL, CE, CSA, RoHS, and EN.
Product Description
Cosel STMGFW304805-N1 is a high-reliability isolated DC-DC converter in the STMGFW series, delivering dual output voltages of 10 V and -10 V with maximum 2 A output current. With an input voltage range from 18 V up to 76 V DC and rated power output of 20 W, it is suitable for applications requiring stable and versatile power supply solutions on PCB mounting.
The unit features built-in overcurrent protection that automatically recovers, as well as overvoltage protection on select models (STMG30). It includes a remote ON/OFF function and allows output voltage adjustment of ±10% for single output channels. The converter's high isolation voltage of 500 V DC ensures safe electrical separation between input and output circuits.
Physically compact with dimensions 117 mm length, 52 mm width, and 27 mm depth, this PCB mount device is designed for integration in space-constrained environments. The operating temperature range is rated at 70 °C minimum and maximum, allowing usage in moderately harsh conditions.
Certified to numerous international standards including cUL, UL, CE, CSA, RoHS, and EN, the STMGFW304805-N1 represents a dependable choice for industrial, laboratory, telecom, and power management applications.
Isolated DC-DC Converter with dual outputs and cover. Wide DC input voltage from 18 V to 76 V. Power rating up to 20 W with 2 A output current per channel. Overcurrent and overvoltage protection features. Adjustable output voltage range for precise tuning.
Compact PCB mount form factor. Operating temperature of 70 °C min to max. 500 V DC isolation voltage for enhanced safety. Certified to global safety and environmental standards. Reliable performance and 5-year warranty.
Ideal for use in electronics, power supply systems, industrial control, and telecommunications equipment, the Cosel STMGFW304805-N1 is engineered to provide robust, efficient, and adjustable power conversion compactly and safely. Explore more DC/DC converters and power components in the EnvMart Electronics & Electricals category to find tailored solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18 V to 76 V DC.
This converter provides dual output voltages of 10 V and -10 V.
The maximum output current for this unit is 2 A per channel.
The efficiency of this DC-DC converter is approximately 85%.
The dimensions of this model are 117 mm in length, 52 mm in width, and 27 mm in depth.
This unit is certified to cUL, UL, CE, CSA, RoHS, and EN standards.
The isolation voltage of this model is rated at 500 V DC.
Yes, it includes built-in overcurrent protection and overvoltage protection on select models.
The operating temperature range for this model is rated at 70 °C minimum.
Yes, the output voltage can be adjusted within a range of 4.93 V to 5.24 V for single output channels.
The gross weight of this converter is 140 g.
This converter is suitable for applications in industrial, laboratory, telecom, and power management systems.
