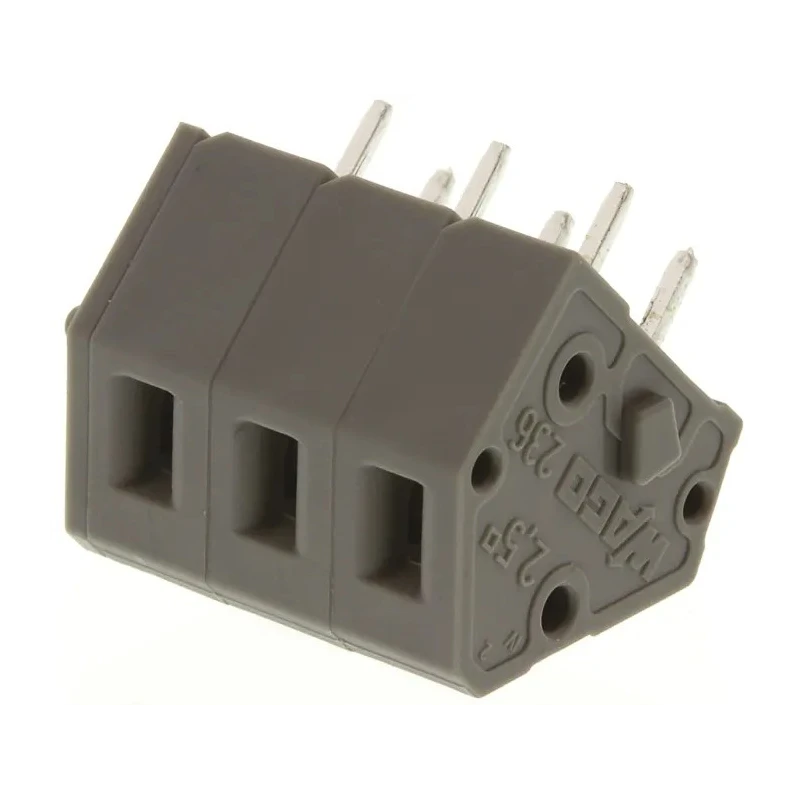

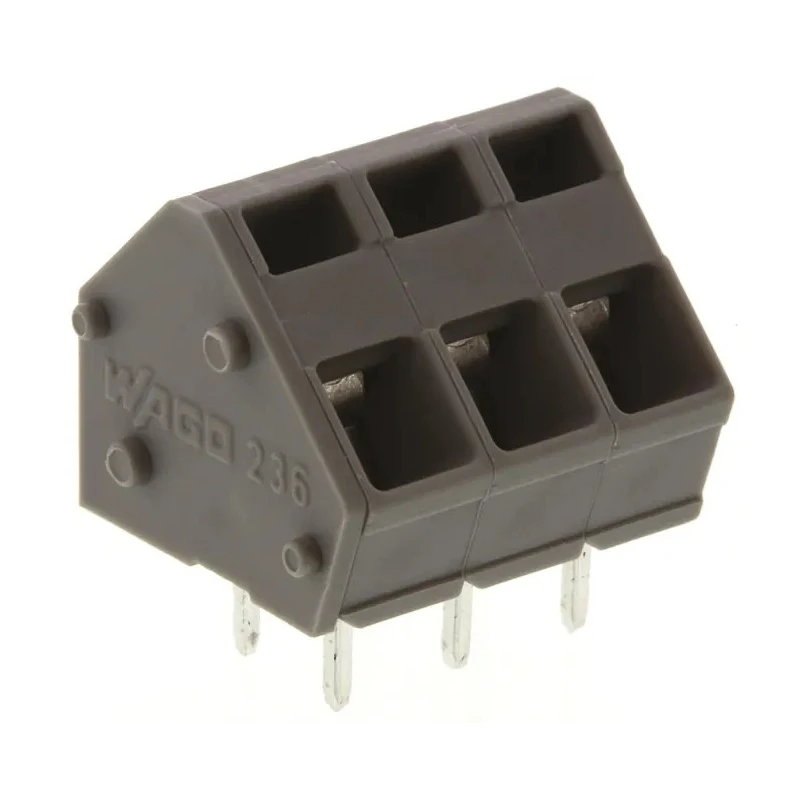

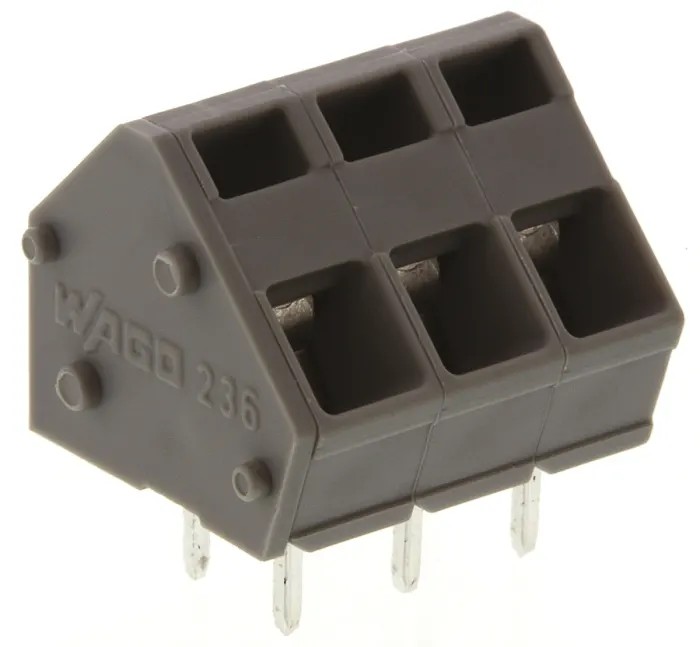

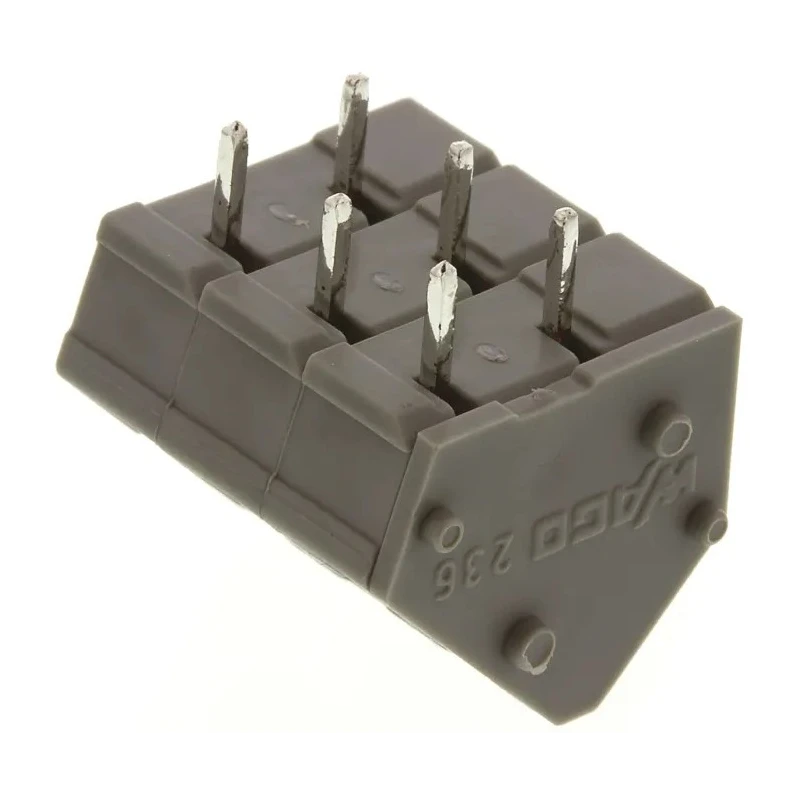

WAGO 236 Series PCB Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row 236-403

WAGO 236-403 PCB Terminal Block is a high-quality component designed for industrial and electronic applications requiring reliable PCB connections. It features 3 solder type contacts arranged in a single row with a pitch of 5.08 mm, ensuring precise wiring and robust electrical connectivity.

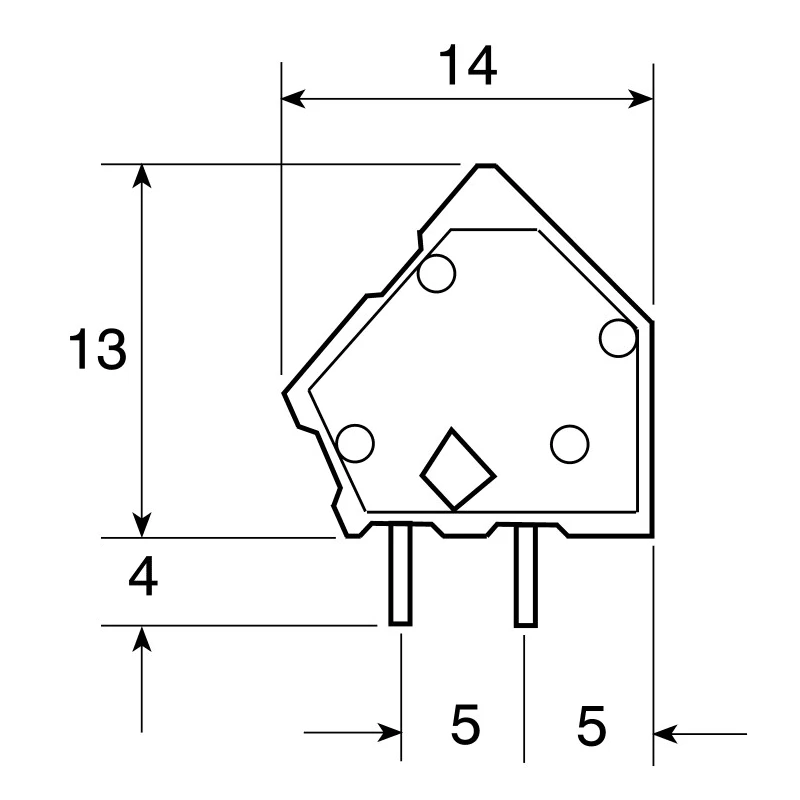

The terminal block is made of grey insulating material with a 45° body orientation which facilitates easier installation on circuit boards and optimizes space usage. With compact dimensions of 13 mm length, 17.3 mm width, and 14 mm depth, it is especially suitable for environments where space-saving is critical.

This terminal block supports a wide range of wire sizes from 28 AWG to 12 AWG (up to 2.5 mm²), making it versatile for various wiring configurations. It is rated for a maximum current of 15 A and voltage up to 300 V, suitable for demanding electrical control panels and industrial automation systems.

Applications include use in PCB assemblies, industrial automation equipment, electrical control panels, and lighting fixture wiring. While it does not carry specific standards or approvals, it is manufactured in Switzerland, reflecting reliable build quality and manufacturing standards.

Features a 5.08 mm pitch for accurate and standardized wiring spacing. Includes 3 contacts arranged in a single row for efficient compact connections. Supports wire sizes from 28 to 12 AWG, accommodating up to 2.5 mm² maximum wire size.

Constructed in grey with a 45° body orientation for simpler installation and space efficiency. Compact dimensions of 13 mm length, 17.3 mm width, and 14 mm depth make it suitable for tight spaces. Rated for 15 A current and 300 V voltage ensuring safe and robust connectivity.

Connection method is solder for durable and stable electrical contacts. Manufactured in Switzerland ensuring high quality and reliability. Ideal for PCB assembly, industrial automation, control panels, and lighting fixture wiring.

Choose the WAGO 236-403 for dependable PCB terminal block solutions in industrial, commercial, and electronic contexts. Explore more PCB Terminal Block products on EnvMart for diverse connection components.
