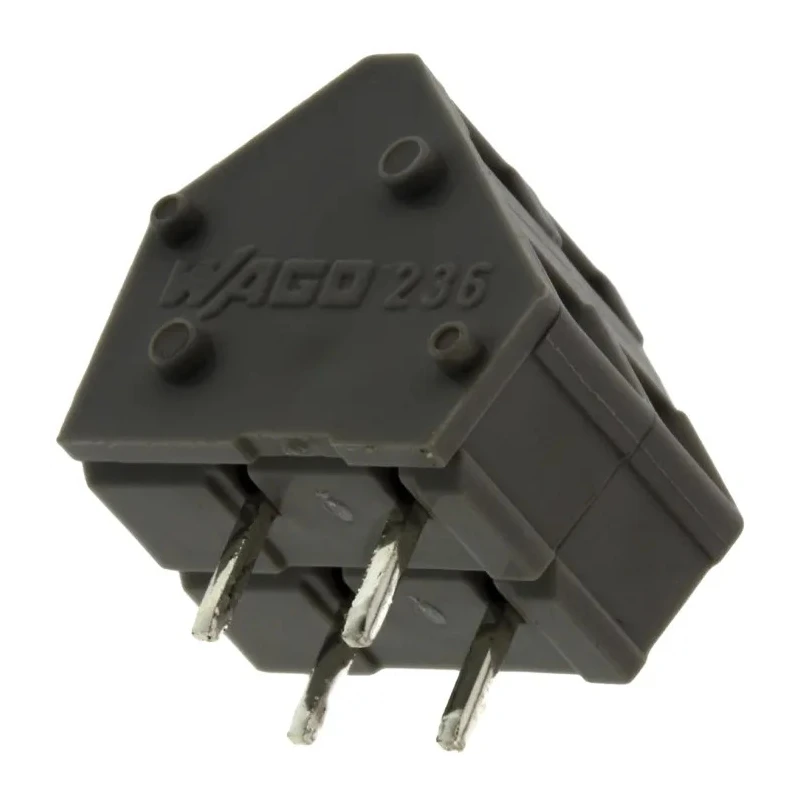

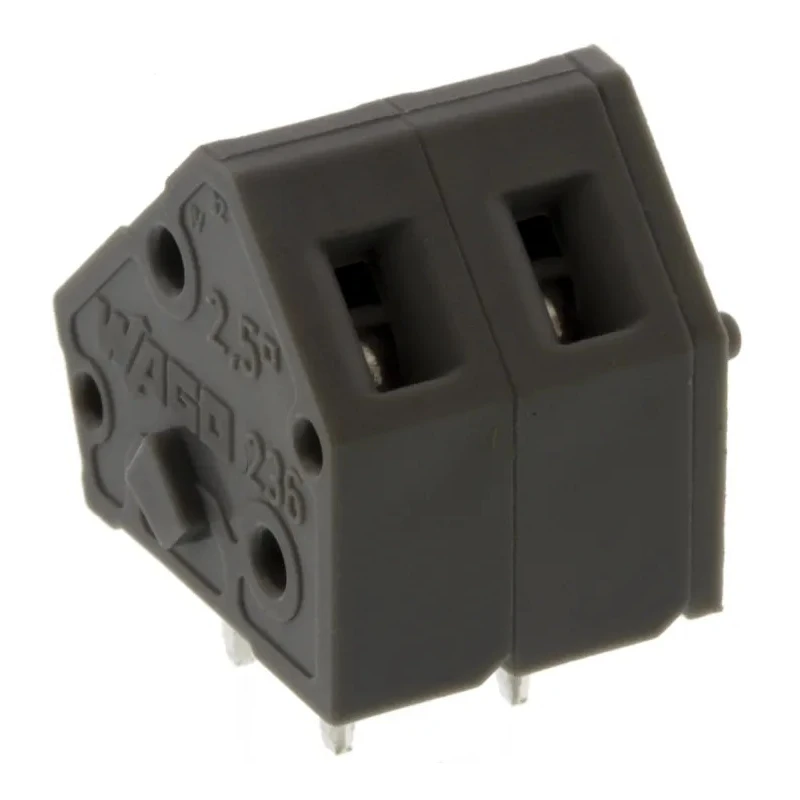

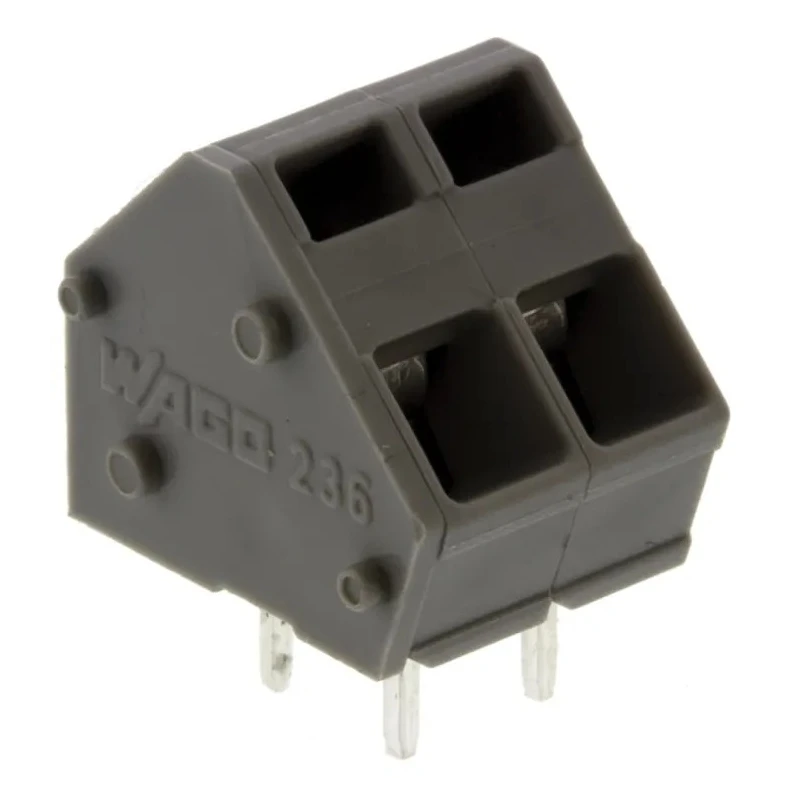

WAGO 236 Series PCB Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row 236-402

WAGO 236-402 PCB Terminal Block is a high-quality electronic component designed with 2 contacts, a 5.08 mm pitch, and a single-row layout for effective printed circuit board wiring applications.

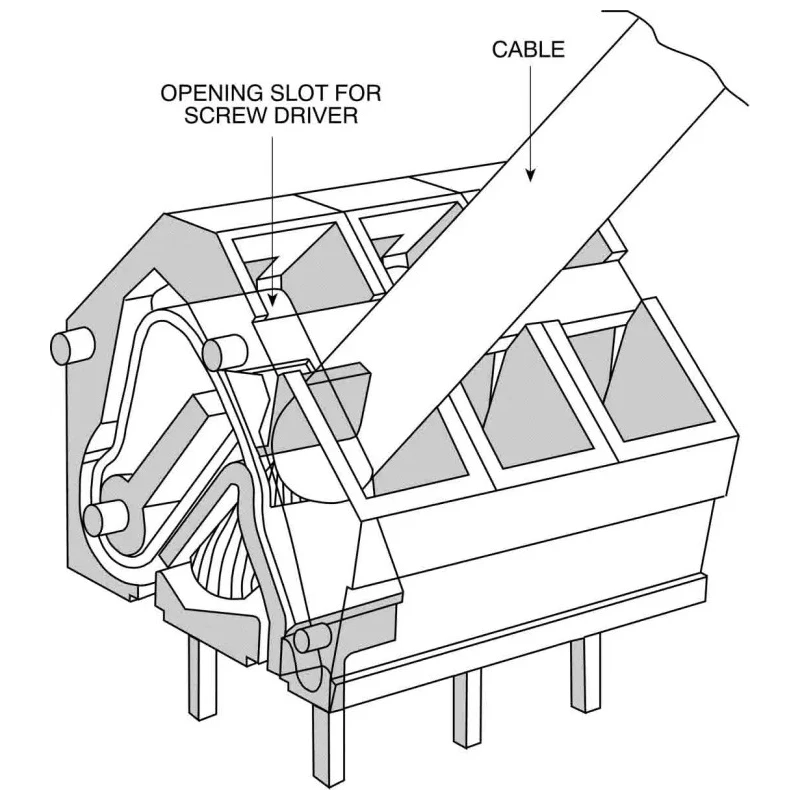

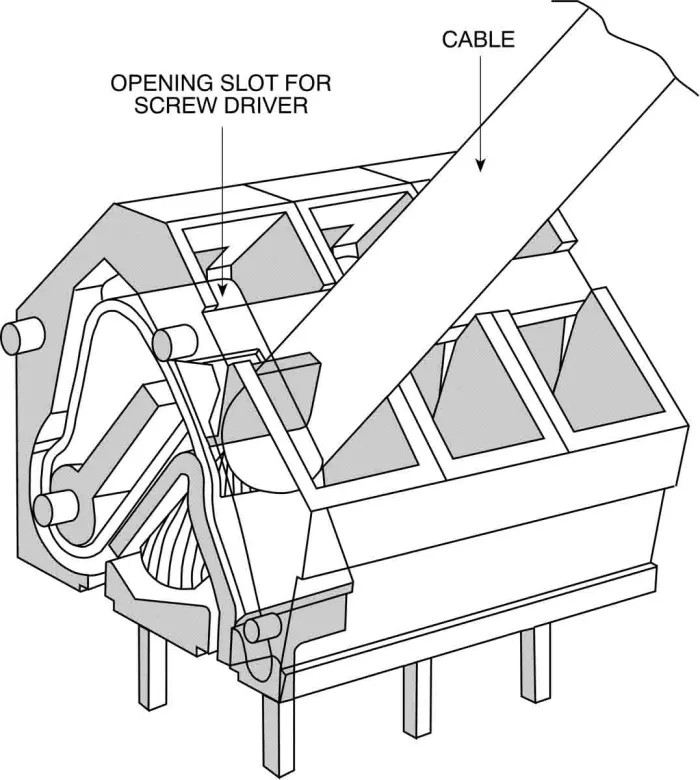

This terminal block features a 45° angled body orientation that facilitates cable routing within constrained spaces, enhancing compact PCB designs. The cage clamp termination system ensures secure and reliable conductor fixation, while the chrome-nickel steel clamping spring offers excellent corrosion resistance in humid or marine environments, thereby enhancing longevity and performance.

It supports wire gauges from 28 AWG to 12 AWG, offering broad compatibility for various wiring requirements within industrial and commercial electronic systems. Key electrical specifications include a 15 A current rating suitable for high-power applications.

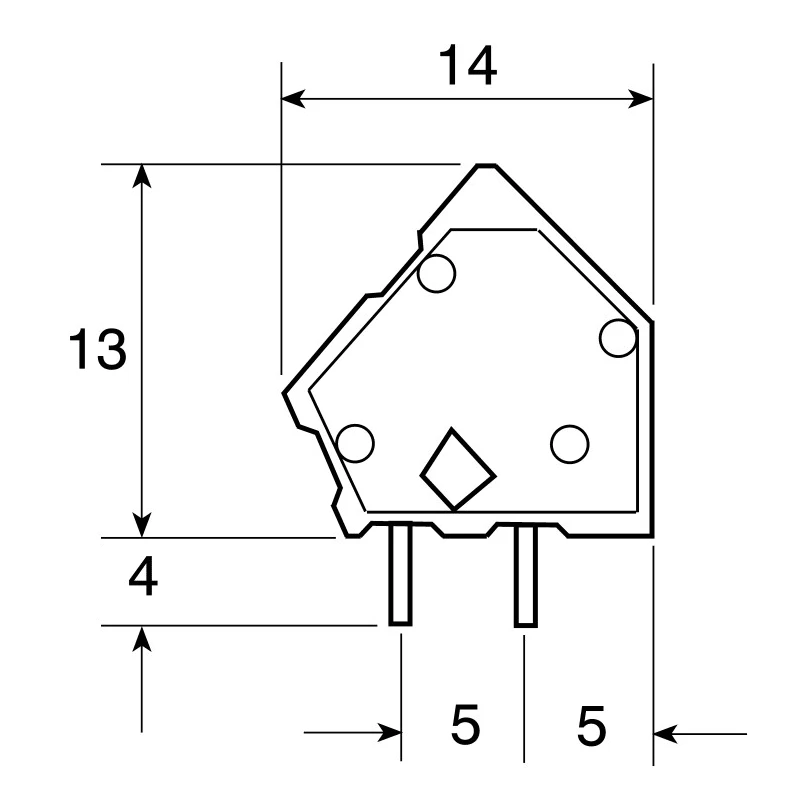

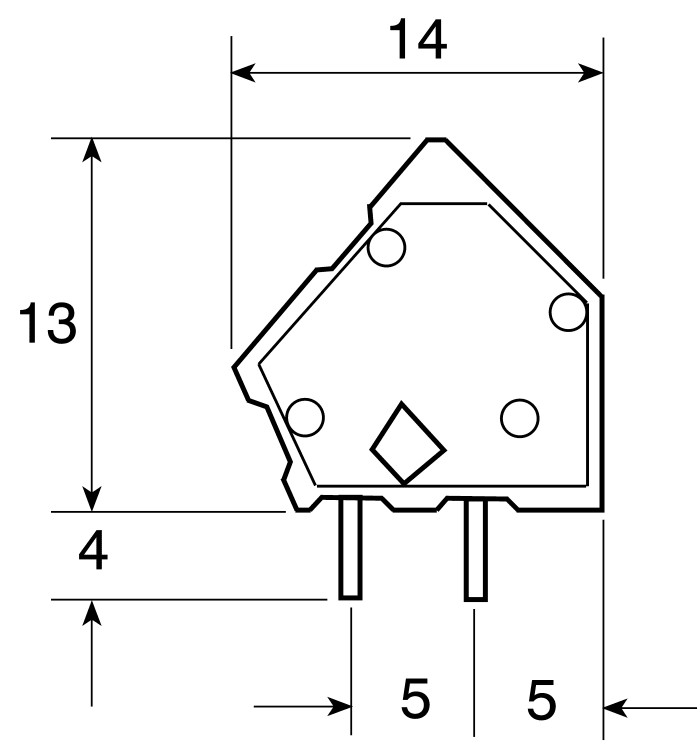

Manufactured with tin-plated ECu contacts, this terminal block resists mechanical wear and ensures sustained electrical conductivity. With compact physical dimensions (14 mm length, 13 mm width, 12.3 mm depth), it is well-adapted for dense PCB layouts.

Robust cage clamp termination enhances conductor stability. Corrosion-resistant chrome-nickel steel spring suitable for humid environments. Wide wire size compatibility from 28 AWG to 12 AWG. High current rating of 15 A supports demanding electrical loads.

45° angled body assists wiring in confined spaces. Tin-plated contacts improve durability and wear resistance. Compact size allows use in advanced PCB designs. Applications include marine engineering, communication devices, measuring instruments, and power station equipment.

The WAGO 236-402 PCB Terminal Block is ideal for industrial, laboratory, electrical, and manufacturing settings where reliable and compact PCB connections are critical. Explore a wider range of PCB Terminal Blocks and related electrical components on EnvMart for enhanced electrical system design solutions.
