Cosel LMA100F-24-HY Switching Power Supply 24V DC 103W 85% Efficiency Chassis Mount Japan

Free Delivery in India | Lowest Global Shipping Charges

Cosel LMA100F-24-HY Switching Power Supply 24V DC 103W 85% Efficiency Chassis Mount Japan

Name: Cosel LMA100F-24-HY Switching Power Supply 24V DC 103W 85% Efficiency Chassis Mount Japan
Brand: Cosel
SKU: 201001



Category Switching Power Supplies Brand Cosel Condition New

Specifications

Country of Origin	Japan
Brand	Cosel
Power	103W
Efficiency	85%
Length	155mm
Model	LMA100F-24-HY
Depth	30mm
Gross Weight	290g
Width	62mm
Mount Type	Chassis
Series	LMA100F
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	UL, CE, RoHS, cURus
Maximum Output Voltage	24V dc
SMPS Output Current	4.3A
Minimum Input Voltage	85V ac

Key Features

Supports universal AC input voltage range of 85V to 264V.
Provides a maximum output current of 4.3A with a single output channel.
Operates reliably in temperature range from -10°C to 70°C.
Compact and rugged open frame PCB construction compatible with LFA series size dimensions.
Incorporates built-in power factor correction and protection circuits for inrush current, overcurrent, and overvoltage.
Complies with UL, CE, RoHS, and cURus safety and environmental standards.
Equipped with optional features like Peak Current Function and Remote ON/OFF control.
Manufactured in Japan, backed by a 5-year warranty.

Product Description

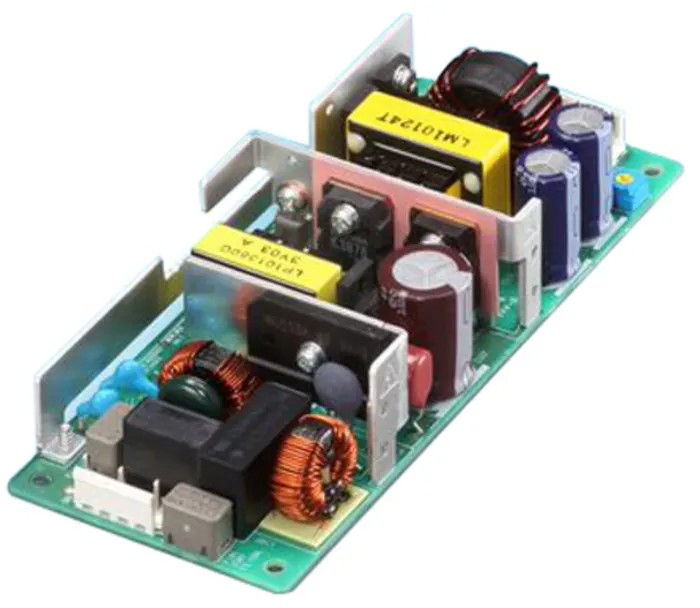

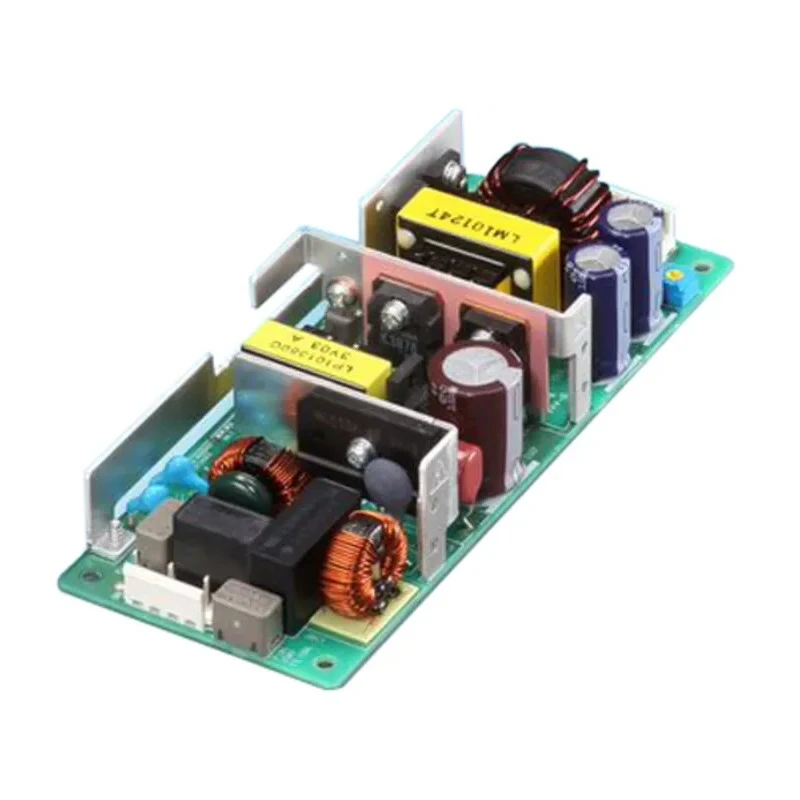

Cosel LMA100F-24-HY Switching Power Supply is a high reliability open frame power supply unit designed for industrial and electronic applications requiring stable 24V DC output. Delivering 103 watts of power at up to 4.3 amperes of output current, this chassis-mounted power supply features a wide universal input voltage range from 85V AC up to 264V AC, making it suitable for global use.

The compact PCB design is compatible with the LFA series dimensions, ensuring easy integration and rugged operation. Operating temperatures between -10°C and 70°C allow it to function efficiently in various environments. The unit incorporates built-in inrush current limitation, overcurrent and overvoltage protection, complemented with a power factor correction circuit to reduce AC input demands.

Standards compliance includes UL, CE, RoHS, and cURus, ensuring safety and environmental compliance. Additional optional features like the Peak Current Function (-H) and Remote ON/OFF control (-R2) enhance usability, reducing standby power and improving control over the power supply operation.

This power supply is ideal for use in industrial machines, electronic instruments, telecommunications equipment, HVAC systems, and laboratory instruments. Manufactured in Japan, it provides robust performance backed by a 5-year warranty, reflecting Cosel's quality assurance.

Supports universal AC input voltage range of 85V to 264V. Maximum output voltage of 24V DC with output current up to 4.3A. Built-in protection circuits including inrush current limitation and overvoltage protection. Compact open frame chassis mount design compatible with LFA series dimensions.

Meets international safety and environmental standards: UL, CE, RoHS, cURus. High efficiency power conversion at 85% efficiency rating. Operating temperature range from -10°C to 70°C ensures versatility. Optional Peak Current Function and Remote ON/OFF control for added functionality.

5-year warranty and Japanese manufacturing ensure product reliability. Explore more premium Switching Power Supplies and Cosel products on EnvMart for industrial, laboratory, and electronic system applications.
