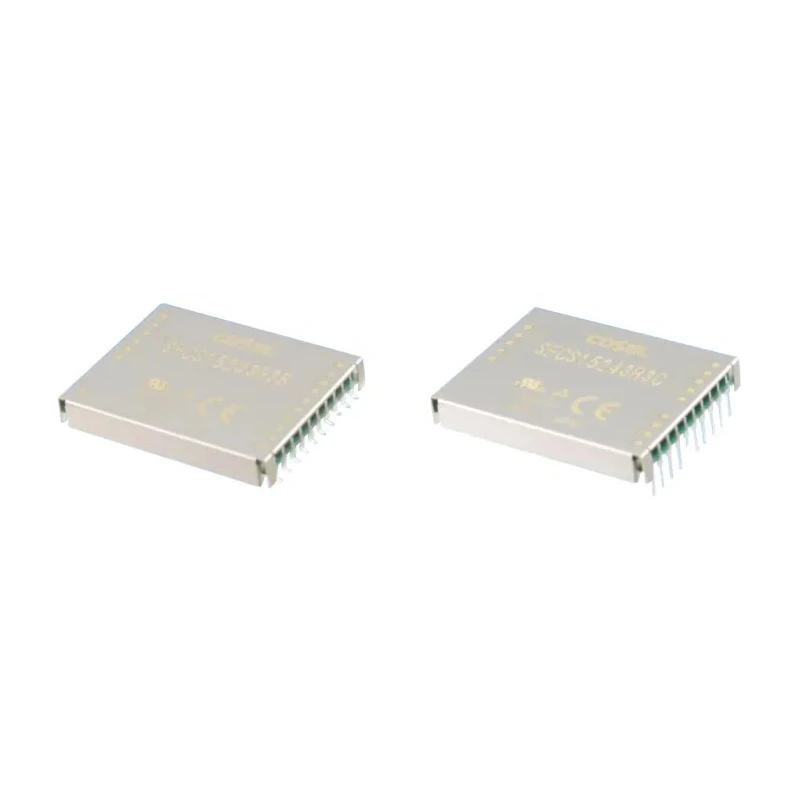

Cosel DC/DC Converter, 12V DC Output, 1.25 A, 24V DC Maximum Input Voltage, 18V Minimum Input Voltage, 15 W SFCS152412C

Cosel SFCS152412C is a precision DC/DC Converter designed to provide an isolated 12V DC output at 1.25 A current with a maximum power rating of 15 watts. It accepts an input voltage range from 18V to 24V DC, suitable for various industrial, electronic, and embedded system applications.

Featuring a through hole mount design in a DIP package with 16 pins, the converter facilitates straightforward integration into PCBs. Its compact size - 39.1 mm in length and 6.8 mm in both width and depth - and lightweight construction of 16 grams allow for efficient board space utilization.

The converter boasts an efficiency of 89%, delivering reliable performance while minimizing energy loss. It has a low ripple and noise output of 150 mV peak to peak, ensuring clean power for sensitive electronics. Additionally, it features a robust isolation voltage of 1000 V DC to protect circuits from high voltages and electrical interference.

The operating temperature range of -40°C to 85°C enables it to function reliably in diverse environments, including industrial, manufacturing, instrumentation, and telecommunications sectors. The unit meets rigorous international safety standards and certifications such as CE, CSA 60950-1, cUL, cULus, EN 60950-1, TUV, and UL 60950-1, ensuring compliance and safety.

This SFCS series model is ideal for applications requiring a compact, efficient, and reliable DC/DC conversion solution. Whether in industrial controls, instrumentation, or electronic equipment, the converter supports stable power delivery under varying input conditions.

Provides a stable 12V DC output with a maximum current of 1.25 A. Operates with an input voltage range between 18 V and 24 V DC. Designed as a through hole mount with a DIP package for easy PCB integration. Features high efficiency of 89% for energy savings and reliable performance.

Supports isolation voltage of 1000 V DC for safety and signal integrity. Compact dimensions with length and depth of 39.1 mm and 6.8 mm respectively. Produces low ripple and noise at 150 mV peak to peak for clean output.

Operates reliably in temperatures ranging from -40°C to 85°C. Complies with multiple safety standards including CE, TUV, UL, and CSA approvals. Lightweight design, weighing approximately 16 grams, suitable for compact electronic applications.

Explore the broad range of Cosel DC/DC Converters on EnvMart for efficient power management in industrial, laboratory, telecommunications, and embedded system projects.
