Schmersal Limit Switch , DPDT, IP67, Thermoplastic Housing, 230V AC, 4A

Free Delivery in India | Lowest Global Shipping Charges

Schmersal Limit Switch , DPDT, IP67, Thermoplastic Housing, 230V AC, 4A

Name: Schmersal Limit Switch , DPDT, IP67, Thermoplastic Housing, 230V AC, 4A
Brand: SCHMERSAL
SKU: 188414
Price: 64.74 USD
Availability: InStock



Category Limit Switch Brand SCHMERSAL Condition New

Specifications

Country of Origin	Germany
Brand	Schmersal
Length	61.5mm
Model	IP67
Depth	30mm
IP Rating	IP67
Width	30mm
Housing Material	Thermoplastic
Series	ZS
Maximum Operating Temperature	80°C
Contact Configuration	DPDT
Actuator Type	Plunger
Contact Type	NO/NC
Minimum Operating Temperature	-30°C
Switching Current	4A
Terminal type	Screw
Standards/Approvals	UL, EN, CSA, CE
Operating Force	9N
Mechanical Life	20000000Cycles
Switching DC Voltage	24V dc
Switching AC Voltage	230V ac
Conduit Entry	M20 x 1.5

Key Features

Equipped with a plunger actuator type for precise mechanical operation.
IP67 ingress protection ensures dust-tight and water-resistant performance.
Thermoplastic housing provides robust protection against moisture and chemicals.
Silver contacts offer excellent resistance to electrical arcing and welding for reliability.
Meets international standards UL, EN, CSA, and CE for safety and quality.
Ideal for industrial applications like lifts, escalators, and injection-moulding machinery.
Operating temperature range from -30°C to 80°C ensures reliable function under various conditions.
Mechanical life rated at 20 million cycles for long-term durability.

Product Description

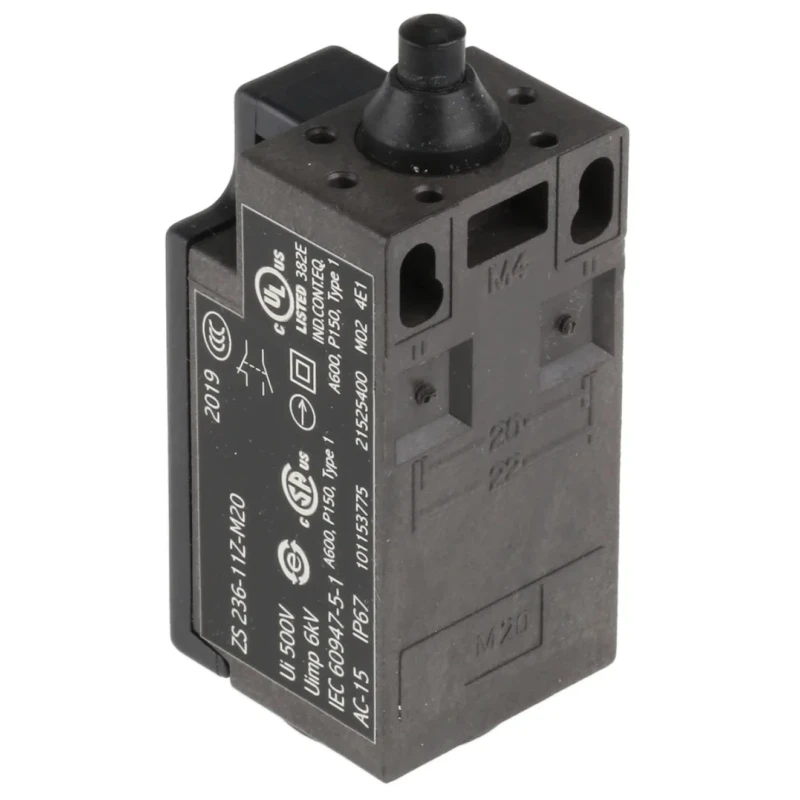

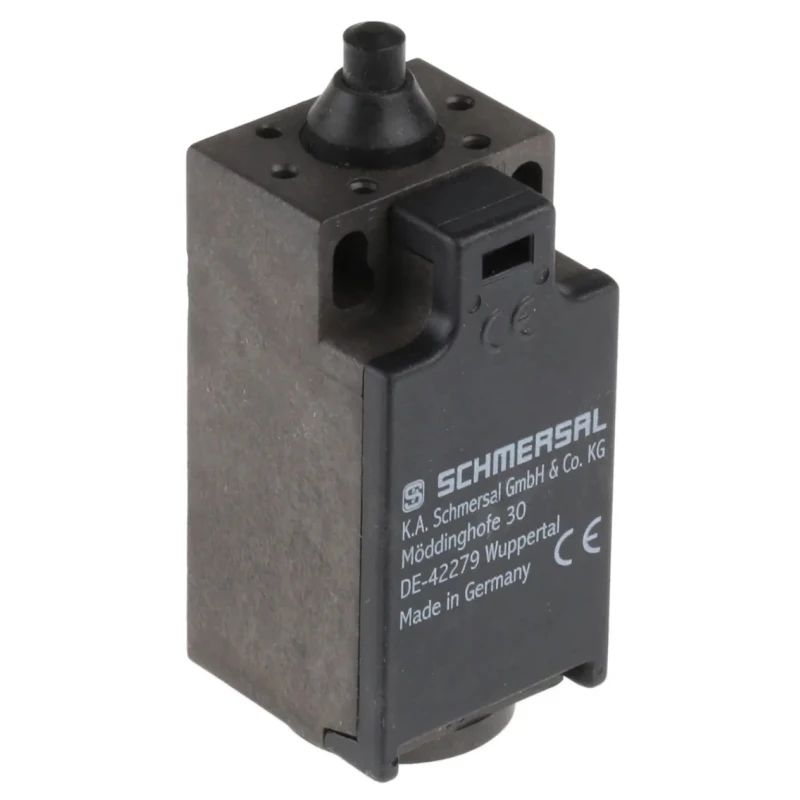

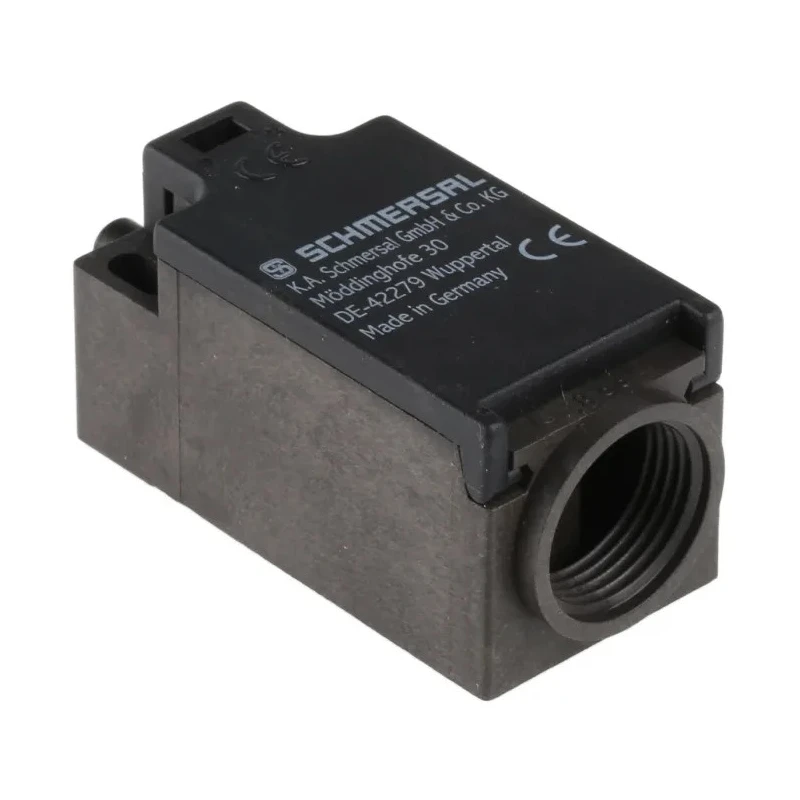

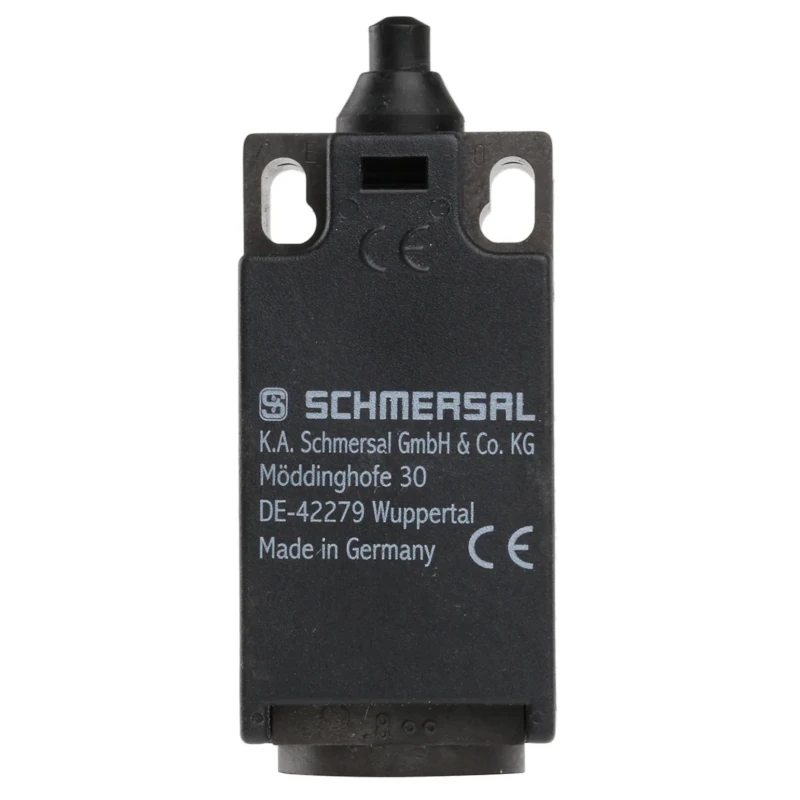

Schmersal ZS 236-11Z is a professional-grade plunger limit switch featuring a Double Pole Double Throw (DPDT) contact configuration, designed for industrial automation and safety applications. It operates at 230V AC with a switching current of 4A and has a thermoplastic housing that is resistant to moisture and chemicals. The IP67 rating certifies it as dust-tight and waterproof, making it suitable for harsh environments.

This limit switch employs a snap-action mechanism with silver contacts that ensure excellent resistance to electrical arcing and contact welding, thereby enhancing operational reliability and longevity. It meets strict international standards including UL, EN, CSA, and CE, confirming its compliance with industry safety requirements.

Featuring a plunger actuator type, the switch offers precise actuation to detect mechanical positions, widely used in lifts, escalators, printing, and special parts manufacturing industries. The mechanical life extends to 20 million cycles, ensuring sustained performance over extended periods of use.

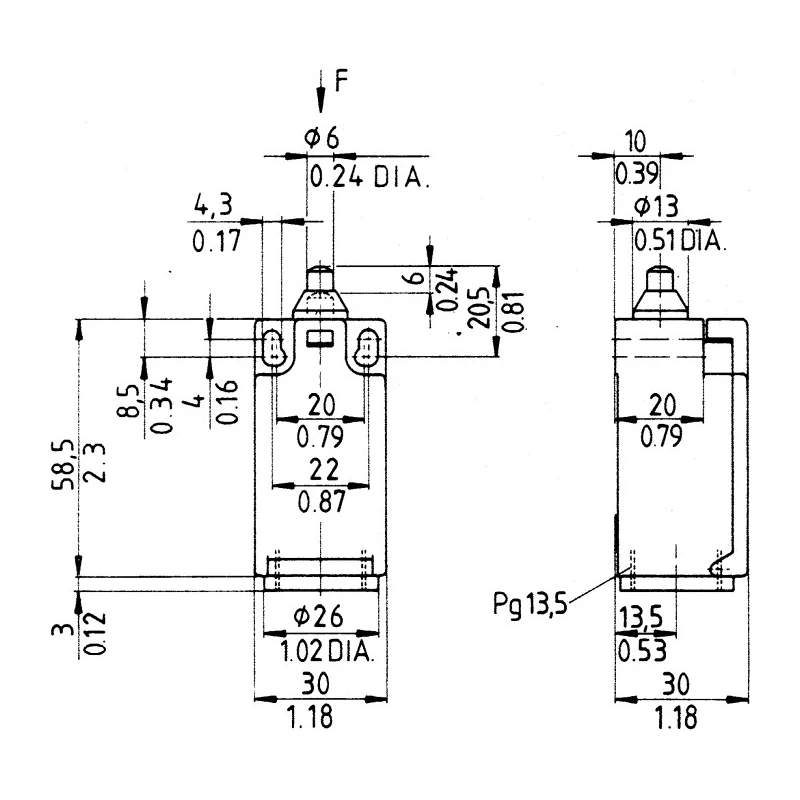

The device withstands extreme temperatures from -30°C to 80°C and includes a screw terminal for dependable electrical connections. Its compact dimensions (61.5mm length, 30mm width and depth) and standard conduit entry size M20 x 1.5 enhance installation flexibility.

Plunger actuator type for accurate mechanical operation. IP67 rated thermoplastic housing for protection against dust and water. Galvanically isolated silver contact elements for safe switching of different voltages. Complies with IEC/EN 60947-5-1 and DIN VDE standards for low voltage switchgear.

Long mechanical life of 20 million cycles ensures durability. Screw terminals allow secure and easy installation. Suitable for industrial environments including lifts, escalators, and printing presses. Operating temperature range between -30°C and 80°C supports diverse applications.

Schmersal limit switches are vital components for industrial automation, providing precise position detection and electrical control in manufacturing, construction, and other technical fields. This product is made in Germany and represents high-quality engineering standards.
