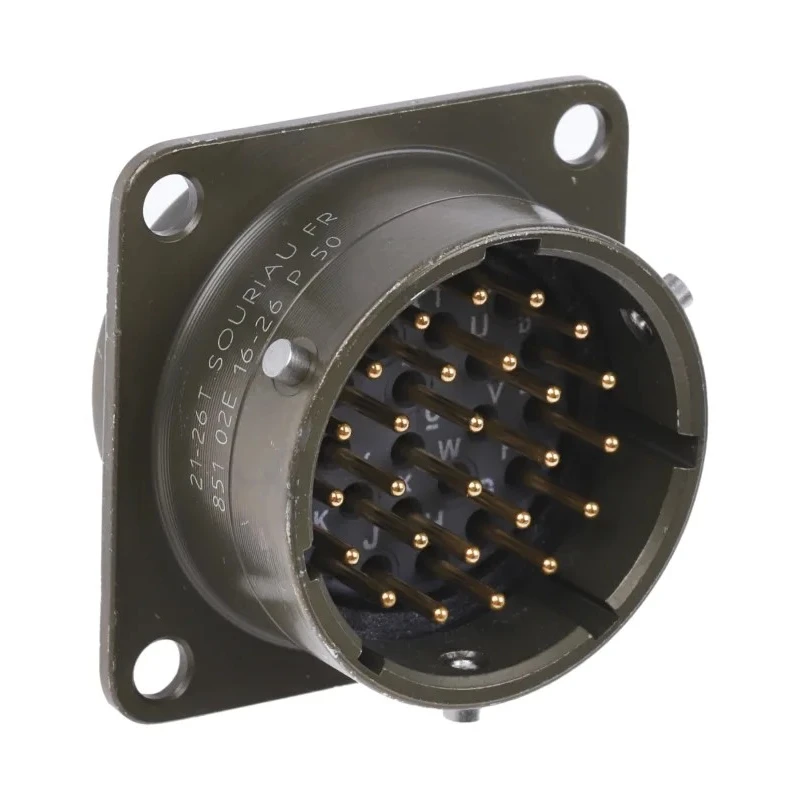

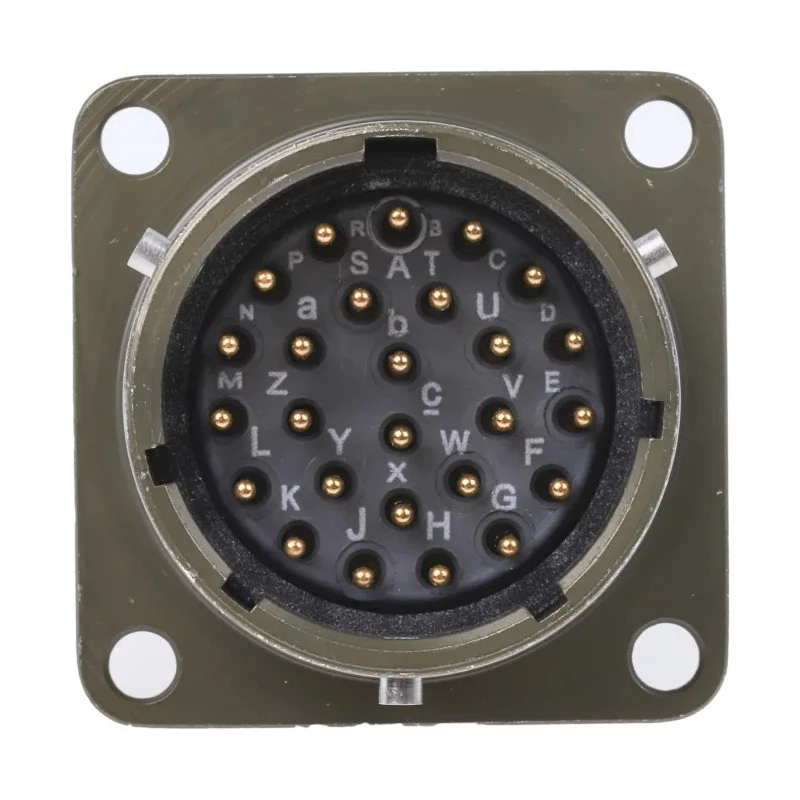

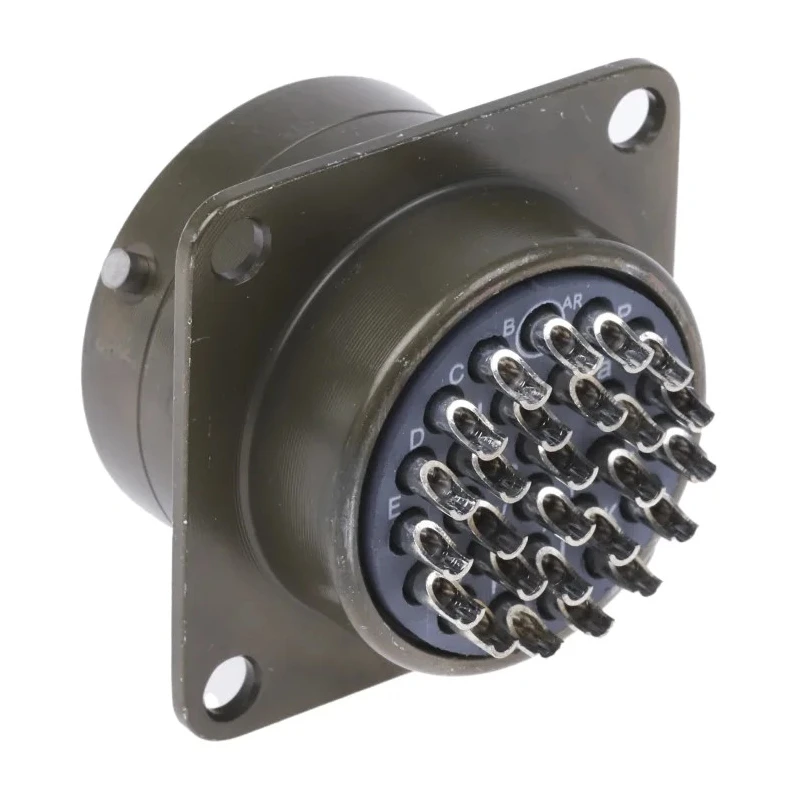

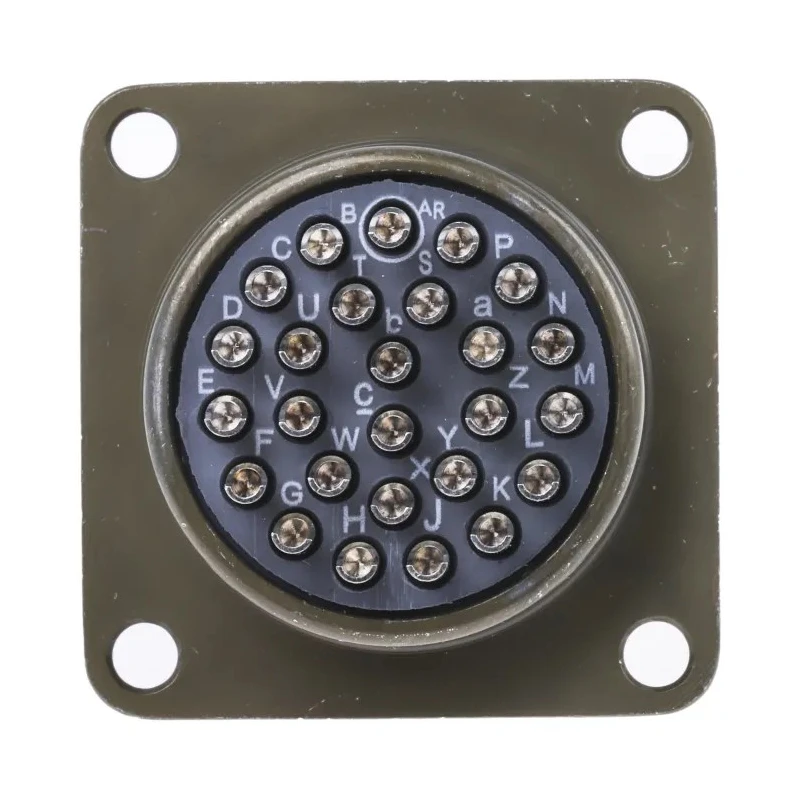

Souriau Sunbank by Eaton Copper Alloy Straight 26 Way Panel Mount MIL Spec Circular Connector 500V 7.5A 85102E1626P50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85102E1626P50 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- This connector supports a voltage rating of 500V for industrial use.
- It features 26 male contacts suitable for solder termination.
- The series 851 straight panel mount connector is rated for 7.5A current.
- Its shell is plated with olive drab cadmium for durability and corrosion resistance.
- This connector meets military specification MIL-DTL-26482 ensuring high reliability.
- Rated IP65, it provides protection against dust and low pressure water jets.
- It operates efficiently within temperature ranges from -55°C to 125°C.
- Contact plating uses gold to ensure excellent conductivity and corrosion resistance.
Product Description
Souriau Sunbank by Eaton model 85102E1626P50 is a high-quality MIL Spec Circular Connector designed for robust industrial and aerospace electrical applications. This 26 way straight panel mount connector features copper alloy contacts with gold plating, providing excellent electrical performance under demanding conditions. Rated for a voltage of 500V and a current of 7.5A, it is suitable for power and signal connections in harsh environments.
The 851 series connectors were originally developed for the aeronautics and weapons industries but are now widely used in industrial sectors including measurement, instrumentation, transport, and machine tools. The connector has an olive drab cadmium plated shell size 16, adding mechanical strength and corrosion resistance. Its bayonet style mating ensures quick and reliable coupling with female connectors.
Operating temperature ranges from -55°C to 125°C allowing use across extreme environmental conditions. These connectors meet MIL-DTL-26482 military standards and are rated IP65 for protection against dust ingress and water jets, making them ideal for outdoor and industrial applications.
This connector supports 26 male solder contacts for 24 to 18 AWG cable sizes with some contacts supporting larger gauge as well. The copper alloy construction together with gold contact plating ensures durable and corrosion resistant electrical contacts.
Panel mount design facilitates easy installation in control panels and equipment housings. Meets various international standards including NFC 93422 and MIL-C 26482G series 1. Designed for use in industrial automation, transportation, aerospace, and military systems.
The product originates from France, ensuring stringent quality control and manufacturing excellence. Souriau Sunbank by Eaton's 85102E1626P50 is a reliable solution for engineers requiring rugged, high-performance MIL Spec circular connectors in critical applications. Browse the Electronics & Electricals category for more Mil Spec Circular Connectors and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a voltage rating of 500V, making it suitable for industrial applications.
It is rated for a current of 7.5A, allowing for power and signal connections in various applications.
This connector features 26 male contacts, suitable for solder termination.
It operates efficiently within a temperature range from -55°C to 125°C, accommodating extreme environmental conditions.
This unit is designed for panel mount installation, facilitating easy integration into control panels and equipment housings.
The contacts are plated with gold, ensuring excellent conductivity and corrosion resistance.
It is rated IP65, providing protection against dust ingress and low-pressure water jets.
This model meets the military specification MIL-DTL-26482, ensuring high reliability for critical applications.
The shell is plated with olive drab cadmium, which enhances its mechanical strength and corrosion resistance.
It is designed for use in industrial automation, transportation, aerospace, and military systems.
The contacts are made of copper alloy, which contributes to its electrical performance under demanding conditions.
This unit features a bayonet style mating, ensuring quick and reliable coupling with female connectors.
