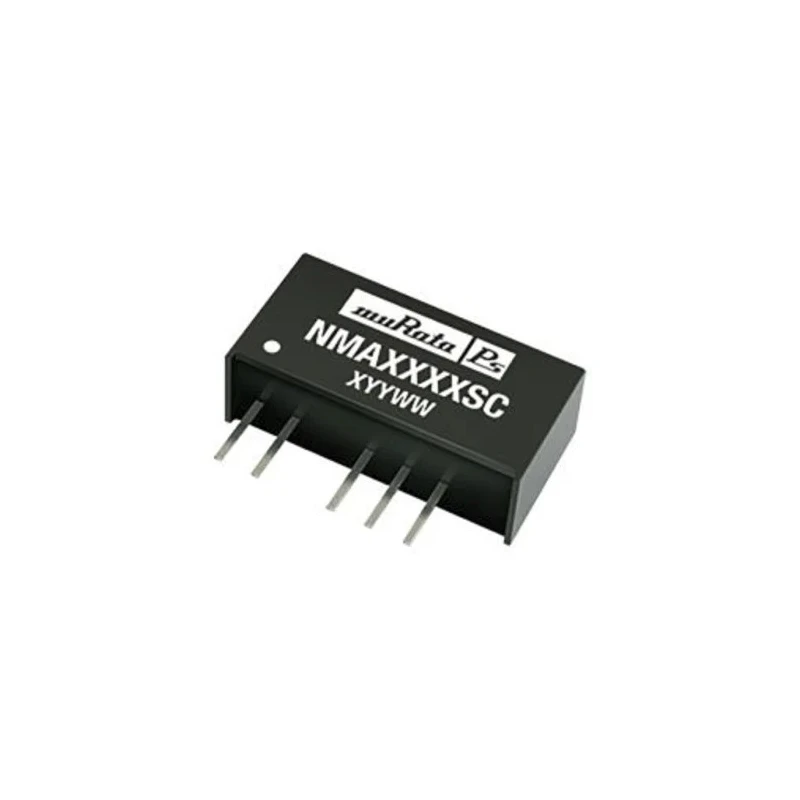

Murata Power Solutions NMA SIP7 Through Hole DC/DC Converter, Dual Output 5 V, -5 V DC, 100 mA, 1 W, 10.8-13.2 V NMA1205SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMA DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 69% |
| Length | 19.5mm |
| Model | NMA1205SC |
| Depth | 10mm |
| Gross Weight | 2.4g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMA |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 5, -5V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1kV dc |
Key Features
- High efficiency at 69 percent with unregulated dual outputs.
- Operates with input voltage range from 10.8 V to 13.2 V DC.
- Through hole SIP7 plastic DIP package ensuring ease of PCB mounting.
- Provides 1 kV DC input/output isolation for noise suppression.
- Ripple and noise level of 20 mV peak-to-peak ensuring signal stability.
- Compact dimensions of 19.5 mm length, 19.5 mm width, and 10 mm depth.
- Operates reliably within temperature range from -40 degrees Celsius to 85 degrees Celsius.
- No external components required due to internal SMD construction.
Product Description
Murata Power Solutions NMA1205SC is a high-efficiency, unregulated DC/DC converter designed for industrial and electronic applications requiring dual output voltages of 5 V and -5 V DC at 100 mA output current.
This converter operates over an input voltage range of 10.8 to 13.2 V DC, delivering maximum output power of 1 W with an efficiency of approximately 69 percent. Its through hole mounting SIP7 DIP plastic package simplifies installation on printed circuit boards.
The unit provides 1 kV DC isolation between input and output, which enhances noise immunity and system safety. Ripple and noise performance is controlled within 20 mV peak-to-peak to maintain clean power supply for sensitive electronics.
Compact size with dimensions of 19.5 mm length, 19.5 mm width, and 10 mm depth, along with a lightweight 2.4 g construction, makes it suitable for tight space requirements. The converter is capable of operating across a wide temperature range from -40 °C to 85 °C ensuring reliability in harsh conditions.
No external components are needed for operation due to its internal surface-mount device (SMD) construction and UL 94V-0 rated flame retardant package material. The product complies with RoHS standards ensuring environmental safety.
High efficiency at 69 percent with unregulated dual outputs. Operates with input voltage range from 10.8 to 13.2 V DC. Through hole SIP7 plastic DIP package for easy PCB integration. 1 kV DC input/output isolation improves noise resistance.
Ripple and noise limited to 20 mV peak-to-peak for signal clarity. Compact dimensions of 19.5 x 19.5 x 10 mm. Wide operating temperature range of -40 °C to 85 °C. No external components required, simplifying usage. RoHS compliant and UL 94V-0 flame retardant packaging.
Extremely lightweight at 2.4 grams suitable for portable devices.
This DC/DC Converter series NMA is ideal for use in power supply and distribution circuits within industrial electronics, communications equipment, instrumentation, and computing hardware. Its specifications cater to environments demanding high reliability and electromagnetic compatibility.
Explore a wide range of Murata Power Solutions converters and components at EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 10.8 V to 13.2 V DC.
It provides dual output voltages of 5 V and -5 V DC, with a maximum output current of 100 mA.
The maximum output power delivered by this unit is 1 W.
This model has an efficiency rating of approximately 69 percent.
The ripple and noise level is limited to 20 mV peak-to-peak, ensuring stable signal output.
It has compact dimensions of 19.5 mm in length, 19.5 mm in width, and 10 mm in depth.
The NMA1205SC features a through hole SIP7 plastic DIP package for easy PCB mounting.
It operates reliably within a temperature range of -40 °C to 85 °C.
The unit provides 1 kV DC input/output isolation, enhancing noise immunity.
No external components are required due to its internal surface-mount device (SMD) construction.
This model is RoHS compliant, ensuring environmental safety.
The weight of this unit is 2.4 grams, making it suitable for portable applications.
