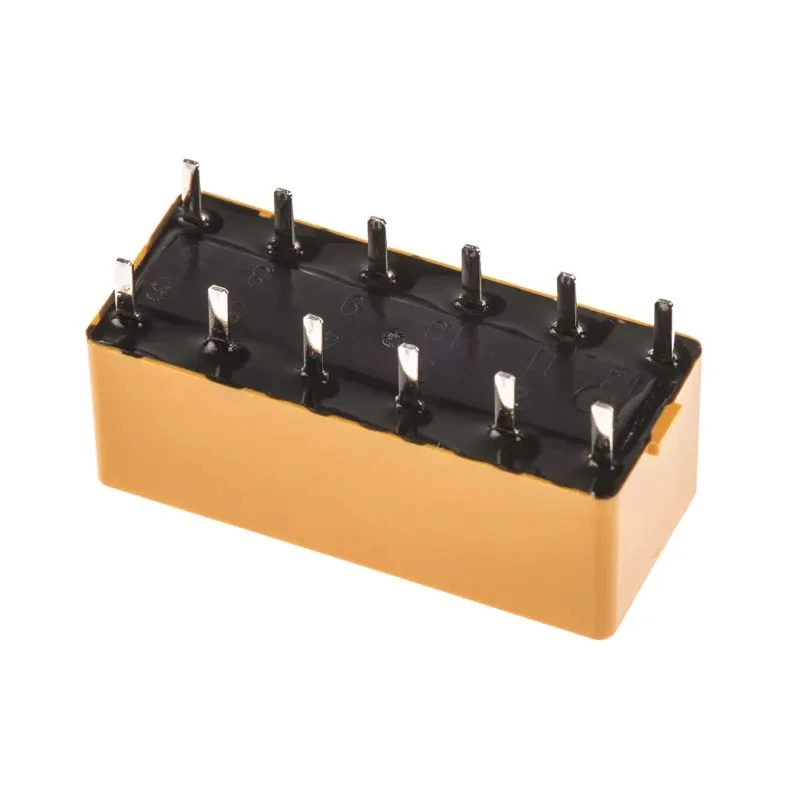

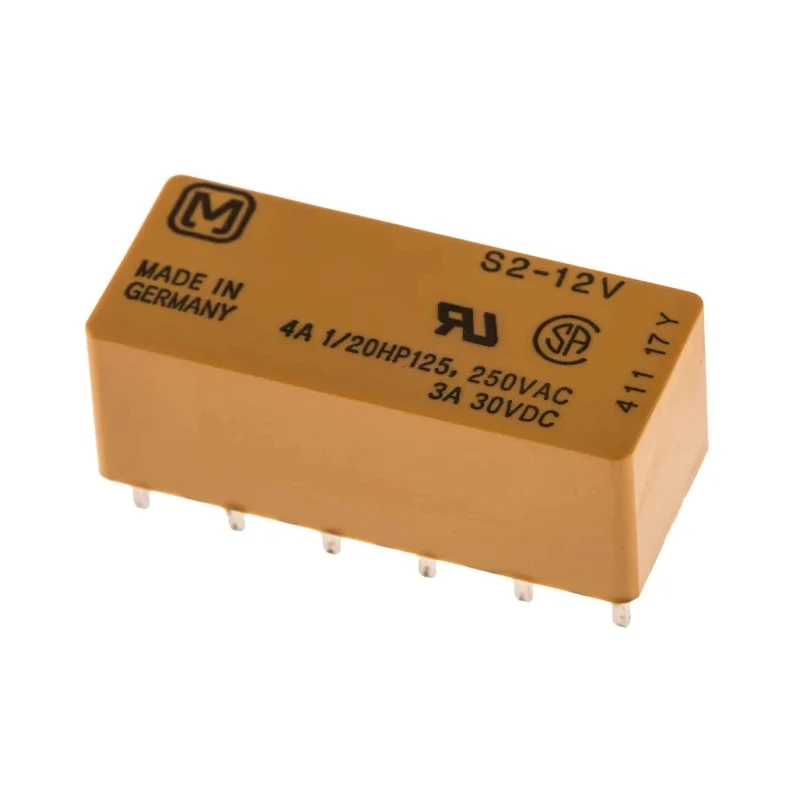

Panasonic PCB Power Relay 12V DC Coil, 4A Switching Current, DPDT S2EB-12V

Panasonic S2EB-12V PCB Power Relay is a highly reliable and efficient device equipped with a 12V DC coil and a switching current capacity of 4A, utilizing a double pole double throw (DPDT) contact configuration. Designed particularly for PCB mounting, this relay features solder terminal type connections, ensuring solid and lasting installation.

Its compact dimensions of 10.4mm height, 28mm length, and 12mm width make it suitable for space-constrained applications. The relay operates within a temperature range of -40°C to 65°C, maintaining consistent performance in industrial, automation, and electrical control systems.

The S2EB-12V series is known for its exceptional sensitivity and durability with gold-plated contacts that maintain a low contact resistance of 50mΩ, ensuring minimal signal loss and enhanced reliability. With coil resistance of 720Ω and a power consumption of 200mW, it offers energy-efficient operation.

It supports switching voltages up to 250V AC and 48V DC, catering to a wide array of electrical load requirements. The relay demonstrates excellent resistance to vibration and shock, making it suitable for use in demanding environments such as manufacturing, automation controls, electrical panels, and industrial machinery.

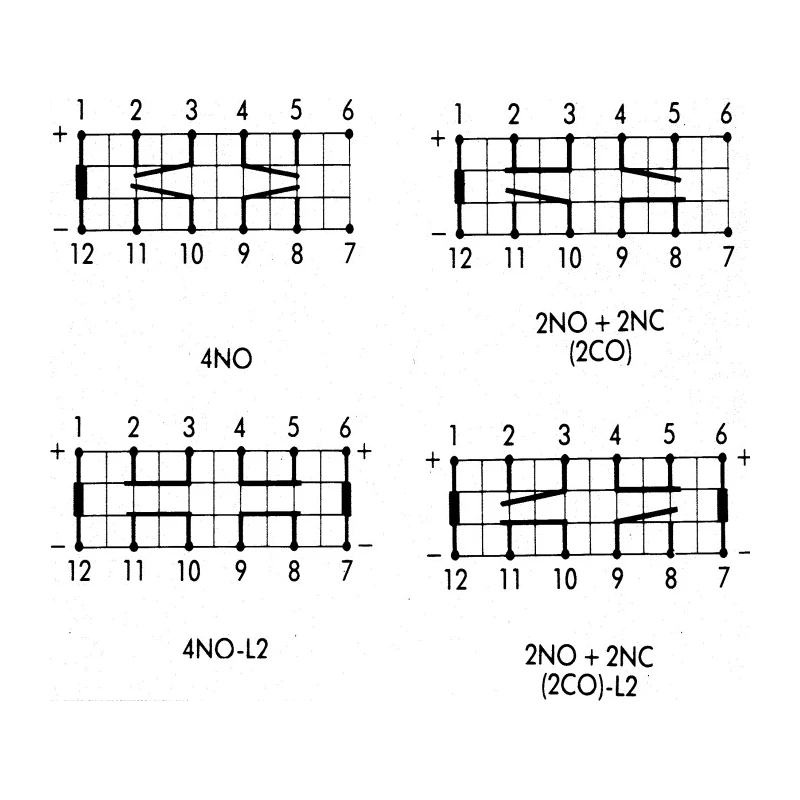

This power relay features a coil voltage of 12V DC for efficient operation. Contact configuration is double pole double throw (DPDT) for versatile switching. Designed for PCB mounting with solder terminals for secure electrical connections.

Supports switching currents up to 4A, suitable for medium power load switching. Gold-plated contacts provide low resistance and high durability. Operates reliably across a wide temperature range from -40°C to 65°C. Compact design with dimensions H10.4 x L28 x W12 mm facilitates easy PCB integration.

Consistent coil resistance of 720Ω and low coil power consumption of 200mW. Meets RoHS compliance and is manufactured in Czech Republic. Offers excellent tolerance against vibration and shock, ensuring long lifespan.

This relay is ideal for use in applications such as industrial automation, electrical control panels, manufacturing systems, and any equipment requiring dependable switching performance. Panasonic’s quality and the relay’s robust features make it a reliable choice for engineers and installers seeking a durable and efficient PCB power relay.
