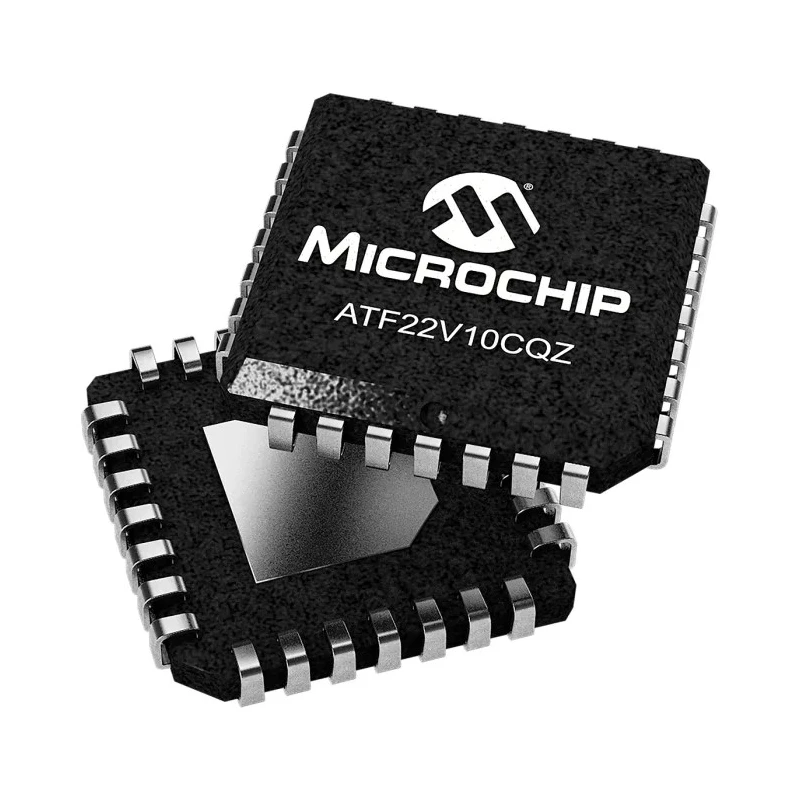

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 50 MHz ATF22V10CQZ-20JU

Microchip ATF22V10CQZ-20JU is a Simple Programmable Logic Device (SPLD) featuring 350 gates and 10 macro cells. Designed with 10 user input/output pins, it offers a maximum internal frequency of 50 MHz, making it suitable for high-speed digital processing in industrial and laboratory electronic systems.

This device supports in-system programmability and re-programmability, providing flexibility in design and modification during prototyping and production phases. It uses a surface mount PLCC package with 28 pins, facilitating integration into compact PCBs.

Operating over a wide temperature range from -40°C to 85°C, it ensures durability in demanding environments. The supply voltage range spans from 4.5V to 5V, and the maximum propagation delay is limited to 20 nanoseconds, supporting rapid logic operations.

With dimensions of 11.58 mm length and 4.06 mm height, the component is compliant with RoHS standards and manufactured in Thailand, ensuring adherence to environmental and quality regulations.

This SPLD is ideal for applications in industrial automation, electronic instrumentation, and custom logic control modules where programmable logic flexibility is required. This SPLD features in-system programmability enabling easy reprogramming.

It supports surface mount package type with a PLCC form factor and 28 pins. Operating temperature ranges from -40°C to 85°C ensuring reliable performance under harsh conditions. The device operates at a minimum supply voltage of 4.5V and maximum of 5V.

Maximum propagation delay time is 20 nanoseconds for fast signal processing. The unit complies with RoHS standards and is made in Thailand. Compact dimensions with length 11.58 mm and height 4.06 mm ideal for space-constrained circuit boards.

Perfect for industrial, laboratory, and electronic control applications requiring programmable logic. Explore more programmable logic devices and semiconductors to enhance your electronic designs with precision and reliability at EnvMart.
