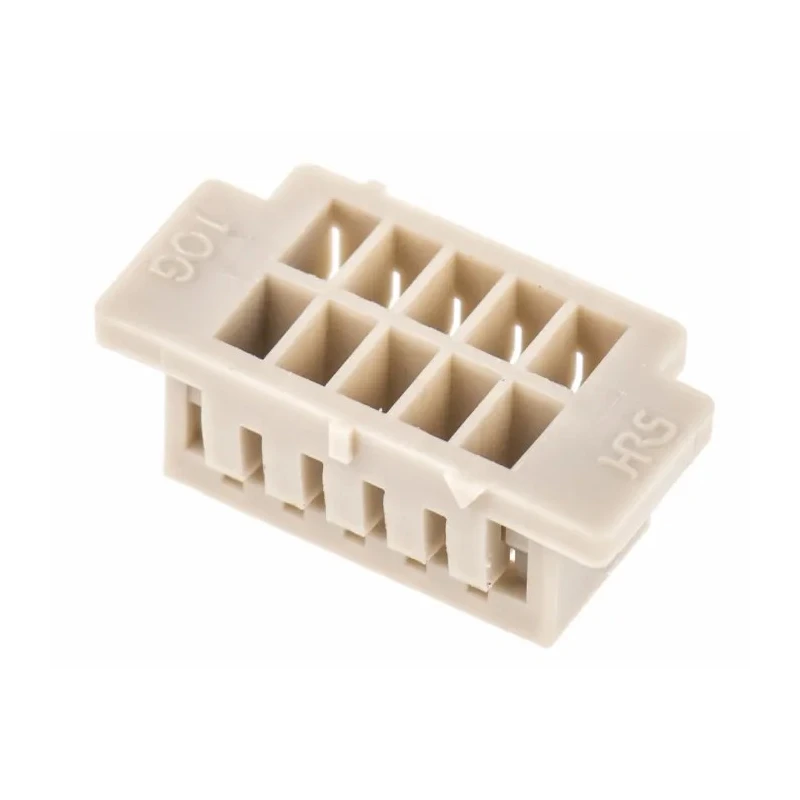

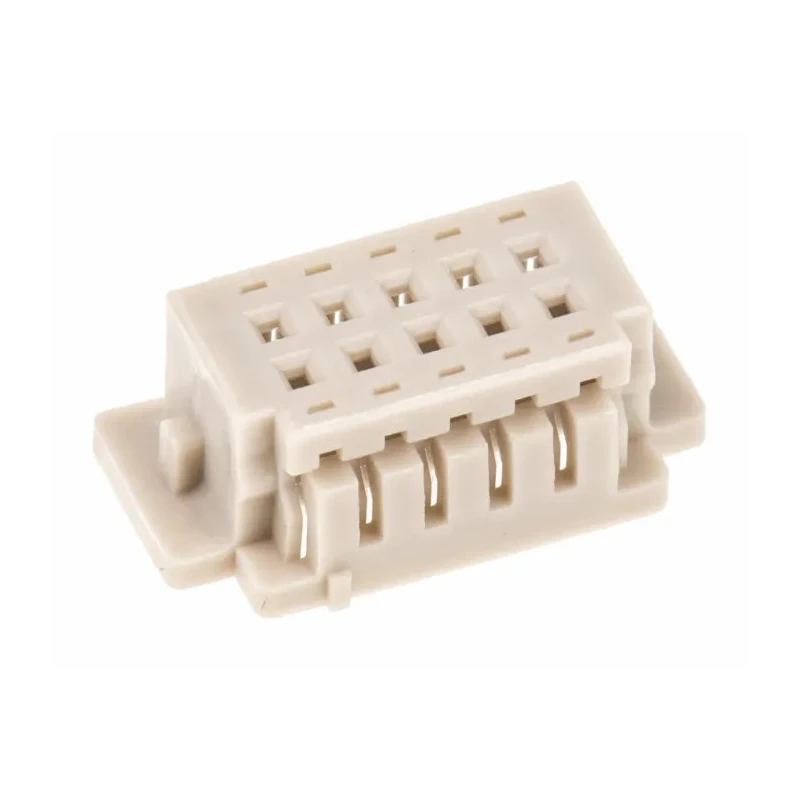

Hirose DF13 Female Connector Housing, 1.25 mm Pitch, 10 Way, 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 10.4mm |
| Model | DF13 |
| Width | 5.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 2 |
| Pitch | 1.25mm |
| For Use With | DF13 Series |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Miniature polyamide connector housing for use with DF13 series.
- Features a friction locking mechanism for secure connections.
- Polarisation slots prevent incorrect mating alignments.
- Ideal for digital cameras, LCD displays, and various measurement devices.
- Achieves 30% higher density using double row design over single row.
- Compact dimensions of 10.4 mm length and 5.2 mm width.
- Female gender connector with cable mount type orientation.
- Manufactured to UL94V-0 standards ensuring safety and reliability.
Product Description
Hirose DF13-10DS-1.25C is a female connector housing featuring a 1.25 mm pitch, 10 contacts arranged in 2 rows, and a straight orientation. This miniature polyamide housing is engineered for cable mounting and designed primarily for use with the DF13 series connectors. Its compact and space-saving design makes it ideal for electronics applications requiring multiple signal lines in a minimal footprint.
The connector housing incorporates polarisation slots to prevent incorrect insertion and a friction locking mechanism to ensure secure mating connections, enhancing reliability in demanding electrical environments. The double-row configuration provides approximately 30% higher contact density compared to single-row alternatives.
Typical usage includes integration in digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices where efficient space utilization and dependable signal integrity are critical.
Constructed from durable polyamide material, this connector housing meets UL94V-0 flammability standards, guaranteeing product safety. Its overall length is 10.4 mm with a width of 5.2 mm, designed to fit compact electronic assemblies efficiently.
Miniature size suitable for space-constrained applications. Double-row layout offers higher density signal connections. Polarisation slots prevent mating errors. Friction locking mechanism secures connector in place. Polyamide housing material provides durability and flame resistance.
Compact dimensions enable integration in tight spaces. Manufactured in Japan ensuring premium quality standards. Compatible with DF13 series connectors and cables. UL94V-0 compliant for safety and reliability. Widely used in electronics, laboratory, and industrial devices.
Explore more from the Electronics Components range at EnvMart for high-quality Connector Housings and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DF13 female connector housing features a pitch of 1.25 mm.
This model has 10 contacts arranged in 2 rows.
The overall dimensions are 10.4 mm in length and 5.2 mm in width.
It supports cable mounting, making it suitable for various applications.
The housing is constructed from polyamide, which provides durability and flame resistance.
The orientation of this model is straight.
It is manufactured to meet UL94V-0 flammability standards, ensuring safety and reliability.
This housing is designed for use with the DF13 series connectors.
It incorporates polarisation slots to prevent incorrect insertion and a friction locking mechanism for secure connections.
Typical applications include digital cameras, LCD displays, and various measurement devices.
It is manufactured in Japan, ensuring high-quality standards.
The double-row design provides approximately 30% higher contact density compared to single-row alternatives, making it more efficient for space-constrained applications.
