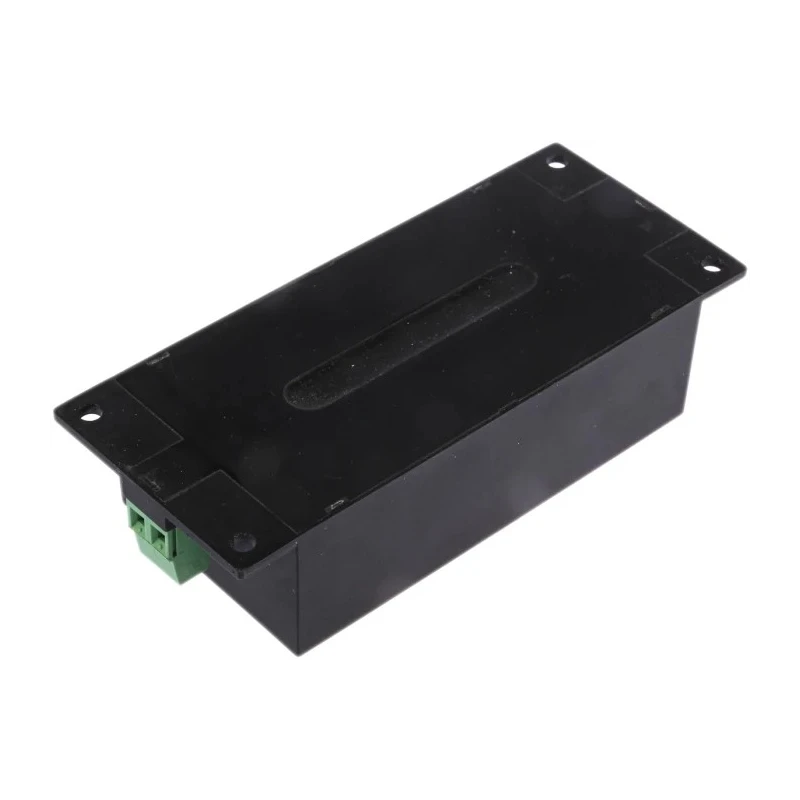

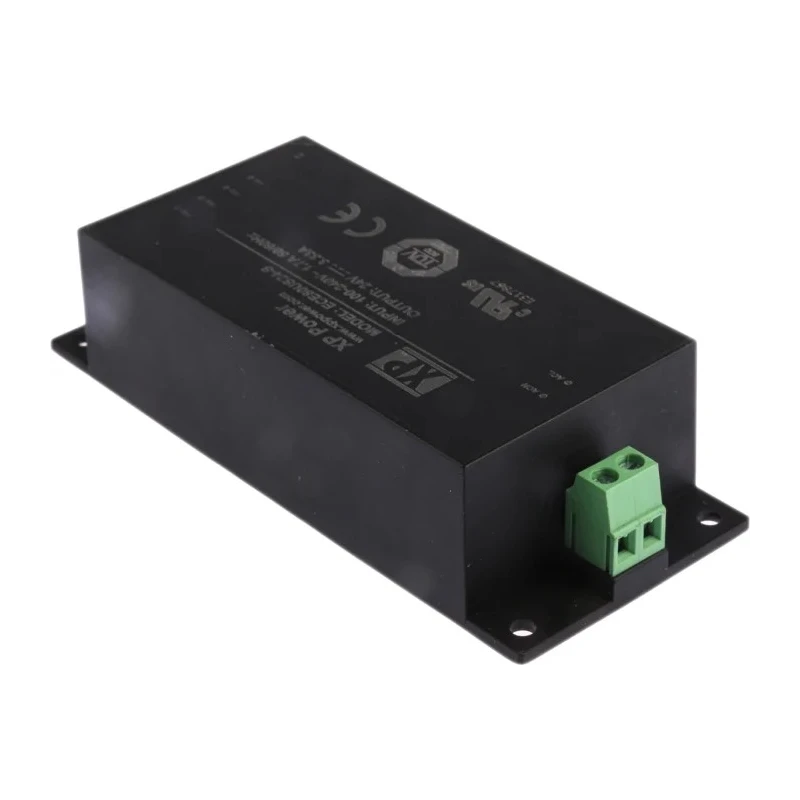

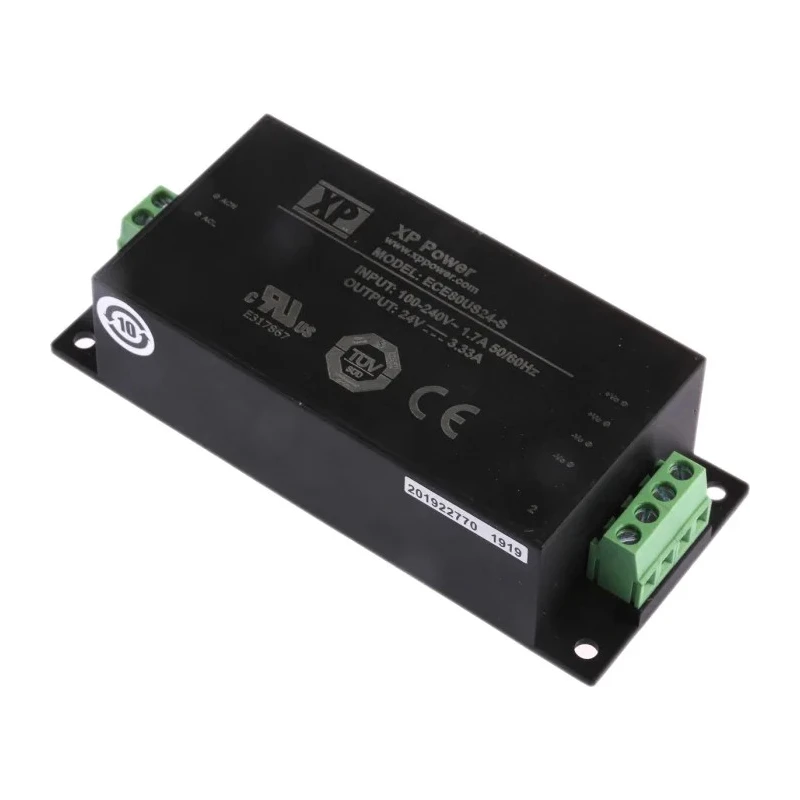

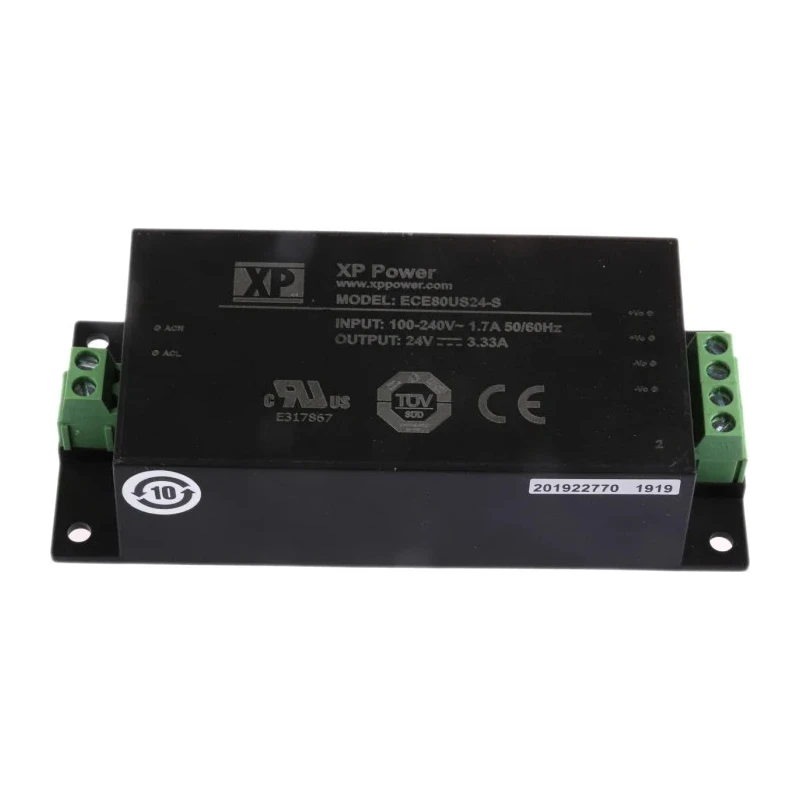

XP Power 80W Chassis Mount Switching Power Supply 24V DC Output, 85-264V AC Input ECE80US24-S

Free Delivery in India | Lowest Global Shipping Charges

XP Power 80W Chassis Mount Switching Power Supply 24V DC Output, 85-264V AC Input ECE80US24-S

Name: XP Power 80W Chassis Mount Switching Power Supply 24V DC Output, 85-264V AC Input ECE80US24-S
Brand: XP Power
SKU: 199192



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	80W
Efficiency	87%
Length	113mm
Model	ECE80US24-S
Depth	28.5mm
Gross Weight	280g
Width	47.5mm
Mount Type	Chassis
Series	ECE
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	3.33A
Minimum Input Voltage	85V ac

Key Features

Encapsulated design ensures compact and reliable operation.
High efficiency of 87% minimizes energy consumption and heat generation.
Wide operating temperature from -40°C to 70°C suitable for harsh environments.
Peak load capability up to 130% nominal power for 30 seconds enhances performance reliability.
Screw terminal with DIN clip attached for secure mounting and easy installation.
Meets multiple international standards including UL 60950-1 and IEC 60950-1 safety compliance.
Ultra small size with dimensions 113mm (L) x 47.5mm (W) x 28.5mm (D) facilitates compact system design.
Designed for industrial and electronic applications requiring reliable DC power conversion.

Product Description

XP Power ECE80US24-S is a high-performance chassis mount switching power supply designed for converting AC input voltages ranging from 85V to 264V into a stable 24V DC output at up to 80W power rating.

This power supply features an encapsulated construction that offers exceptional power density exceeding 11W per cubic inch, making it ideal for space-constrained applications.

It achieves a high active mode efficiency of 87%, reducing operating costs and thermal output. The unit provides a peak load capability of 130% of its nominal power for up to 30 seconds, offering burst power handling for transient demands.

Operating temperature is rated from -40°C to 70°C, allowing reliable operation across extreme industrial environments. Installation is simplified with a screw terminal and DIN clip attachment for secure chassis mounting.

The product complies with multiple international standards and approvals, including EN 61000 EMC standards, UL 60950-1, IEC 60950-1, and CSA 22.2. Weighing only 280g and measuring 113mm by 47.5mm by 28.5mm, it is compact enough for various electronic control, industrial automation, and instrumentation uses.

Applications include powering industrial machinery control circuits, automation equipment, communication devices, and laboratory instrumentation. Its robust design and wide input range make it suitable for global deployment.

Encapsulated construction for compact size and durability. High efficiency reduces power loss and heat generation. Wide temperature range supports harsh industrial environments. Peak load capability enhances transient handling.

Easy chassis mounting with screw terminals and DIN clip. Complies with UL, IEC, CSA and EN EMC safety standards. Lightweight and small footprint for varied applications. Wide AC input range suitable for global power systems.
