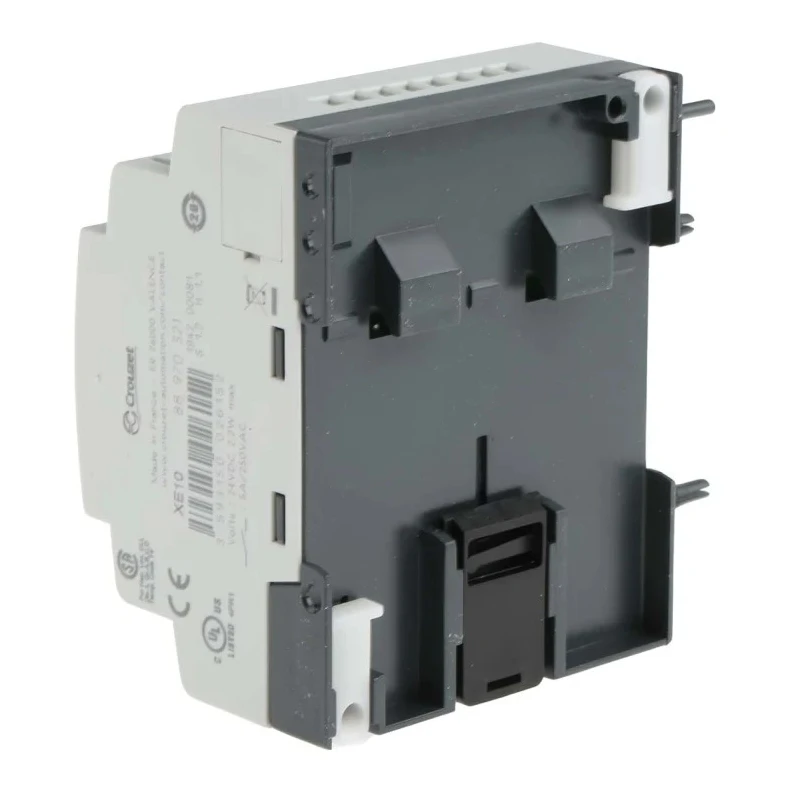

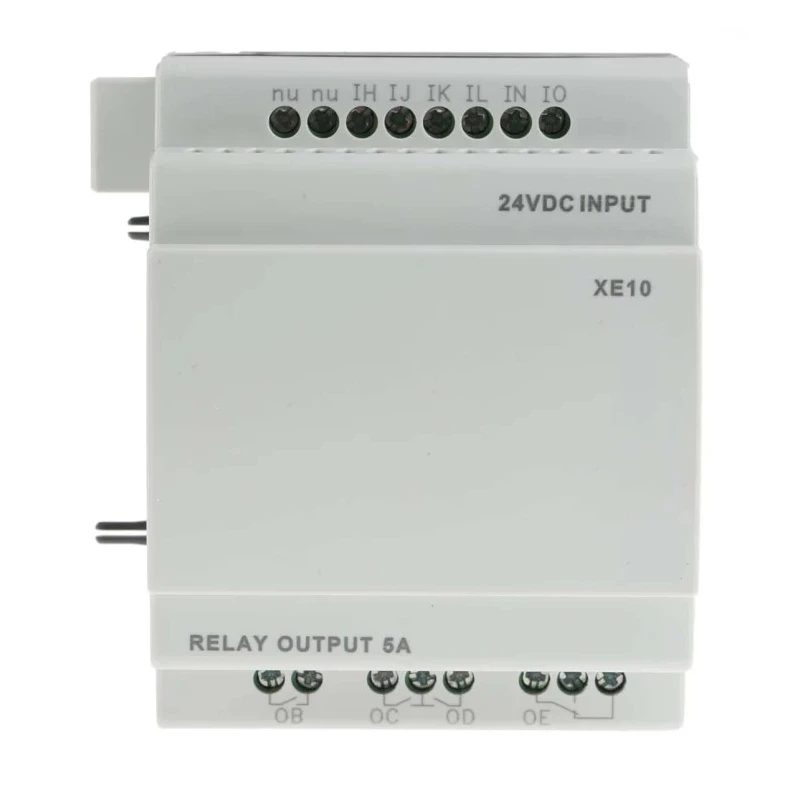

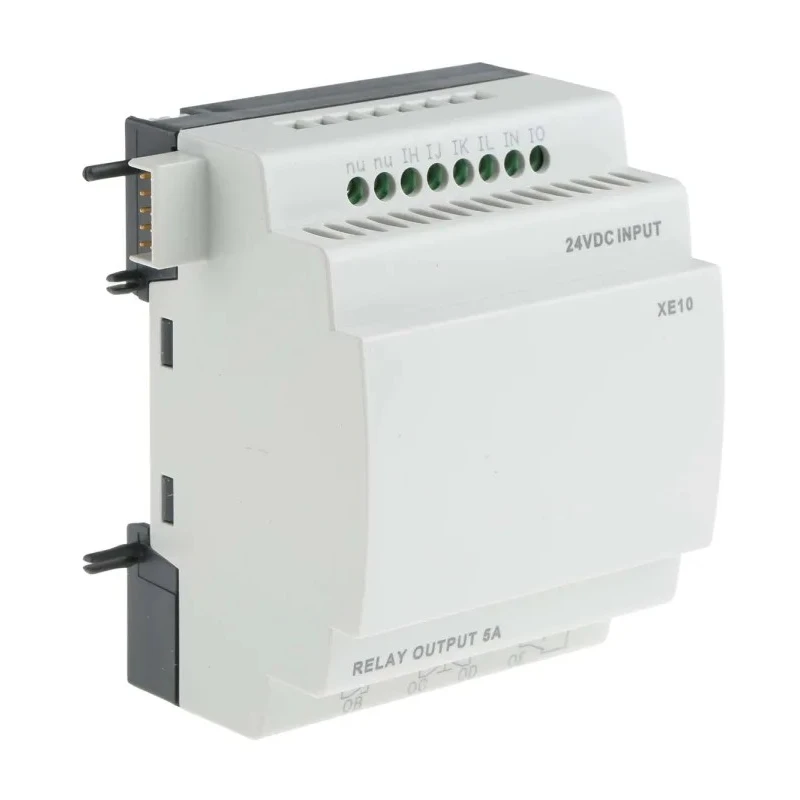

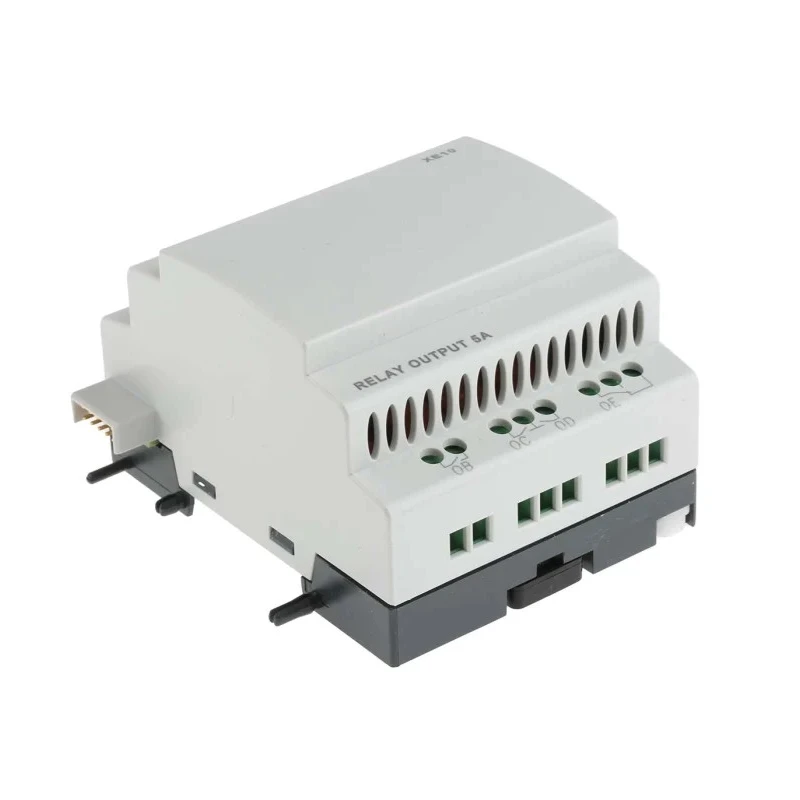

Crouzet Millenium 3 Series I/O Module 6-Input Digital Input 4 Outputs Relay Output 24V DC 8A 88970321
Specifications
| Country of Origin | France |
|---|---|
| Brand | Crouzet |
| Length | 107.6mm |
| Model | 88970321 |
| Depth | 70mm |
| Width | 72mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | Millenium 3 |
| Output Current | 8A |
| Input Type | Digital |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Interfaces | USB port communication |
| Number of outputs | 4 |
| Supply Voltage | 24V dc |
| Number of Communication Ports | 2 |
| Communication Port Type | USB, Serial |
| Programming Language Used | Ladder Diagram, FBD |
Key Features
- Supports 6 digital inputs and 4 relay outputs with 8A output current.
- Operates at 24V DC supply voltage suitable for control systems.
- DIN rail mount type with screw termination for secure installation.
- Includes USB and serial communication ports for programming and connectivity.
- Supports ladder diagram and function block diagram programming methods.
- Large memory for complex applications with software selectable memory options.
- Battery backup ensures program retention in power failures.
- Operates across wide temperature range from -20°C to 55°C for versatile environments.
Product Description
Crouzet 88970321 Millenium 3 Series I/O Module is a versatile and robust PLC input/output module designed for modern industrial automation applications. Featuring 6 digital inputs and 4 relay outputs, this module handles output currents up to 8A and operates on a 24V DC supply for efficient and reliable control.
The module is designed for DIN rail mounting and utilizes screw termination to ensure secure wiring and ease of installation. It incorporates USB and serial communication ports facilitating flexible programming and data exchange. Programming can be accomplished via ladder diagram or function block diagram languages, enabling diverse logic implementation.
The Millenium 3 Series offers significant advancements over previous generations, including larger memory capacity supporting complex control tasks and a 4-line, 18-character display with scrolling text and bar graph functionality for status monitoring. Battery backup is integrated to protect program data during power interruptions, adding reliability to industrial processes.
The module supports an operational temperature range from -20°C to 55°C, making it ideal for various industrial environments including manufacturing, HVAC control, agricultural machinery, and automated washing systems. Its compact footprint and standardized mounting simplify integration into existing control panels.
Applications include control of heating systems, air conditioning units, agricultural equipment, and other automated machinery requiring precise I/O management. Manufactured in France, the device complies with stringent quality expectations for durability and performance.
Features include selective configuration options, EEPROM memory backup, and enhanced electrostatic discharge (ESD) protection to safeguard the device in industrial settings. Supports 6 digital inputs and 4 relay outputs with 8A current rating.
24V DC supply voltage with DIN rail mounting and screw termination. USB and serial communication ports support flexible connectivity. Battery backup for program retention during power failures. Wide operating temperature from -20°C to 55°C suits industrial conditions.
Large memory capacity and a clear 4-line display for easy programming. Selectable programming languages: ladder diagram, function block diagram. Compact size: 107.6mm length, 72mm width, 70mm depth. Manufactured under high-quality standards in France.
Suitable for applications in agriculture, HVAC, manufacturing, and automation. Explore the extensive range of industrial automation solutions including PLC I/O Modules at EnvMart for reliable and efficient process control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The module supports an output current rating of 8A for its relay outputs.
This model features 6 digital inputs for versatile control applications.
It operates on a supply voltage of 24V DC, suitable for various control systems.
The module has a length of 107.6mm, a width of 72mm, and a depth of 70mm.
It is designed for DIN rail mounting, providing secure installation through screw termination.
It supports programming in ladder diagram and function block diagram (FBD) languages.
This model includes USB and serial communication ports for flexible connectivity and programming.
It operates effectively within a temperature range of -20°C to 55°C, suitable for various industrial environments.
The I/O module features 4 relay outputs for controlling various devices.
The Crouzet Millenium 3 Series I/O Module is manufactured in France.
It is suitable for applications in agriculture, HVAC, manufacturing, and other automated machinery requiring precise I/O management.
Yes, it includes battery backup to ensure program retention during power failures.
