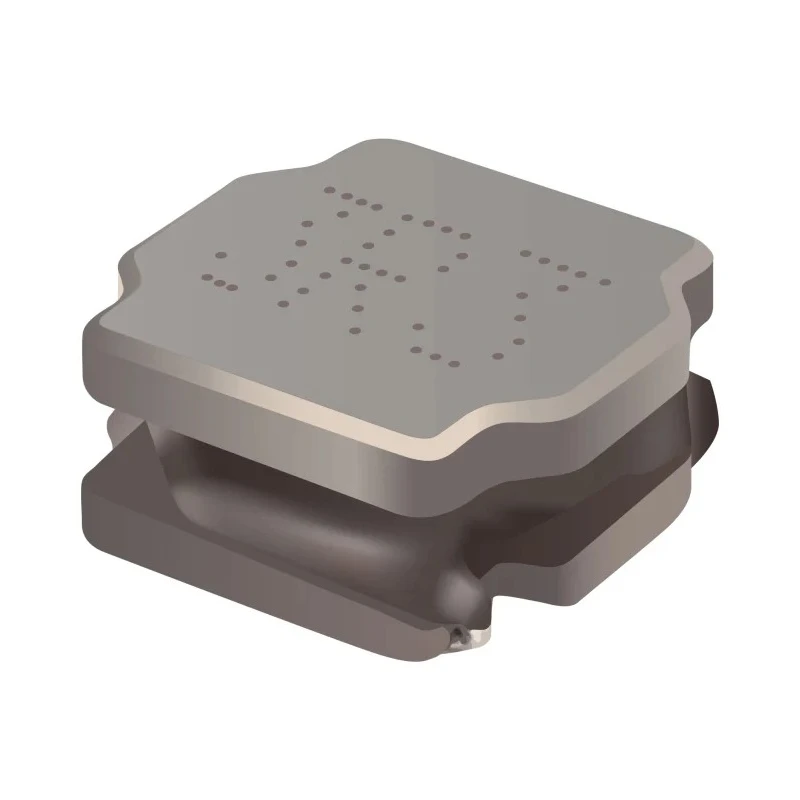

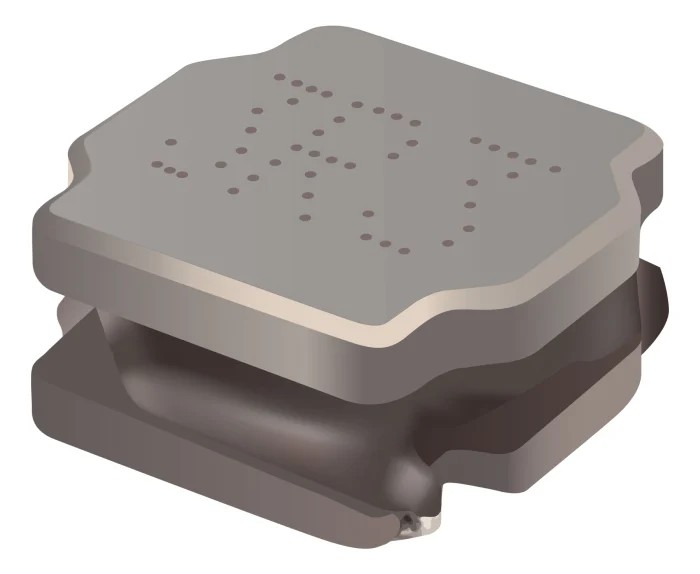

Bourns Shielded Surface Mount Inductor with Ferrite Core 15μH 0804 Package 3.2A IDC SRN8040TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 4.2mm |
| Length | 8mm |
| Model | SRN8040TA |
| Depth | 3.7mm |
| Packaging | Reel |
| Series | SRN8040TA |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 0804 |
| Maximum DC Current | 3.2A |
| Maximum DC Resistance | 50mΩ |
| Inductance Tolerance | 20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 20MHz |
| Minimum Quality Factor | 12 |
| Inductor Construction | Semi Shielded |
Key Features
- This surface mount inductor features a ferrite core for efficient magnetic performance.
- Semi-shielded construction helps reduce electromagnetic interference and noise.
- Offers inductance tolerance of 20% ensuring reliable frequency characteristics.
- Operating temperature ranges from -55°C to 125°C suitable for industrial applications.
- Maximum self resonant frequency of 20MHz and a minimum quality factor of 12.
- Constructed with solder termination style for easy PCB mounting.
- Packaged in reel form suitable for automated assembly processes.
- Complies with RoHS standards and is moulded for durability.
Product Description
Bourns SRN8040TA shielded surface mount inductor is designed for compact electronic applications requiring stable inductance and current capacity. This semi-shielded inductor utilizes a ferrite core, allowing it to handle up to 3.2A maximum DC current while delivering an inductance of 15μH with a 20% tolerance. Packaged in a space-saving 0804 case size, it suits high-density PCB layouts.
The inductor operates reliably within a temperature range of -55°C to 125°C, enabling use in automotive and industrial environments. Its semi-shielded construction minimizes electromagnetic interference, ensuring signal integrity in sensitive electronics. The device offers a maximum DC resistance of 50mΩ and a quality factor of 12 at resonance frequencies up to 20MHz.
Termination style is solder, facilitating straightforward surface mounting on standard circuit boards. It comes supplied on reels, supporting automated pick-and-place assembly lines. The product is RoHS compliant and moulded for mechanical robustness.
Typical applications include filtering, energy storage in power supplies, and noise suppression in consumer electronics, telecommunications, industrial control systems, and automotive electronics. Its ferrite core enhances magnetic performance while the semi-shielded design helps maintain EMI standards.
This inductor is well suited for industrial, commercial, and automotive electronic manufacturing and repair. Its compact dimensions of approximately 8mm length, 4.2mm height, and 3.7mm depth facilitate integration in space-constrained designs.
Reliable stability over wide temperature and current ranges ensures robust circuit performance. Explore more Surface Mount Inductors and related components in the Electronics & Electricals category at EnvMart for your professional needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15μH with a tolerance of 20%.
The inductor can handle a maximum DC current of 3.2A.
It has dimensions of approximately 8mm in length, 4.2mm in height, and 3.7mm in depth.
The maximum operating temperature is 125°C.
This inductor features a ferrite core, which enhances its magnetic performance.
The maximum self-resonant frequency is 20MHz.
It uses a solder termination style for easy surface mounting on PCBs.
The inductor is semi-shielded, which helps reduce electromagnetic interference.
The minimum quality factor is 12 at resonance frequencies up to 20MHz.
Yes, this inductor complies with RoHS standards.
It is packaged in reel form, suitable for automated assembly processes.
Typical applications include filtering, energy storage in power supplies, and noise suppression in various electronic devices.
