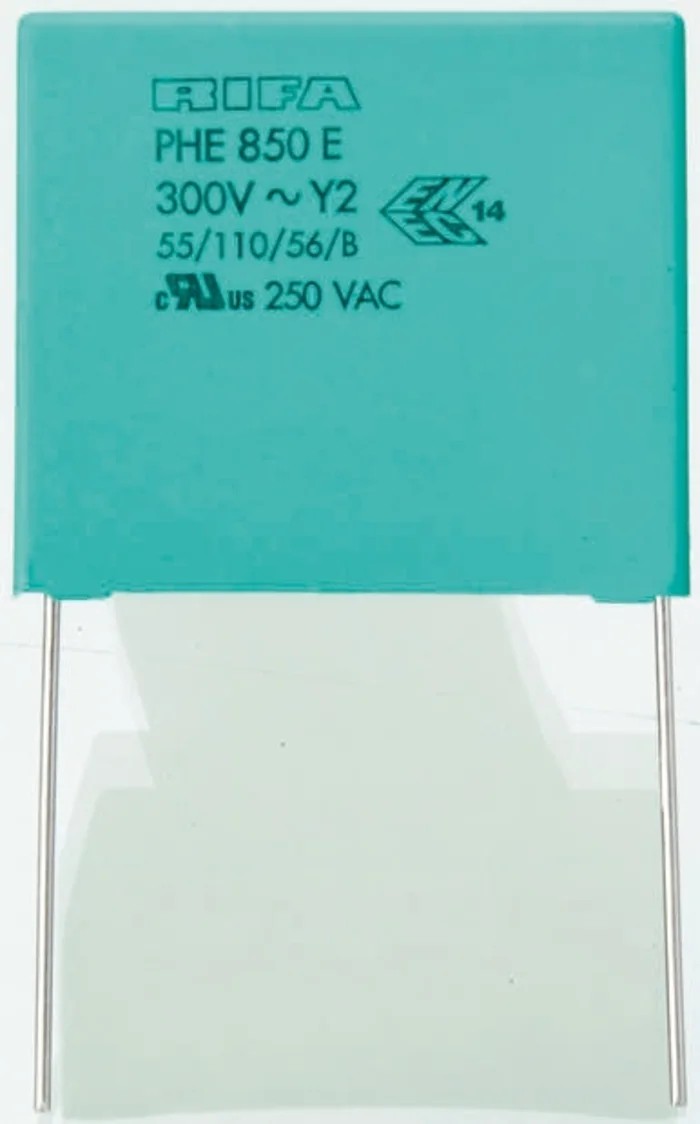

KEMET PHE850 Film Capacitor Y2 ±20% 1 nF 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850

Name: KEMET PHE850 Film Capacitor Y2 ±20% 1 nF 1.25 kV DC 300 V AC Through Hole Radial Terminal PHE850
Brand: KEMET
SKU: 199098
Price: 0.21 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	8mm
Length	13mm
Model	PHE850
Width	4mm
Mount Type	Through Hole
Series	PHE850
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	17mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Suppression Class	Y2

Key Features

Constructed with metallised polypropylene film for stability.
Self-extinguishing encapsulation meeting UL 94V-0 standards.
Compact size with dimensions 13mm length, 8mm height, and 4mm width.
Lead pitch of 10mm and lead length of 17mm for easy PCB insertion.
Designed for EMI suppression and Y2 safety class applications.
Wide operating temperature range from -55°C to 110°C.
Meets RoHS compliance and industry standards ENEC, UL, CSA.
Radial terminal type with pin count of 2 for secure connections.

Product Description

KEMET PHE850 Film Capacitor Y2, model PHE850, is a through hole mounted film capacitor with a capacitance of 1 nF and a tolerance of ±20%. Rated for 1.25 kV DC and 300 V AC operation, it is constructed from metallised polypropylene film and encapsulated in a self-extinguishing material that complies with UL 94V-0 standards, ensuring safety and reliability in electronic circuits.

This capacitor is especially designed for electromagnetic interference (EMI) suppression and intended for use in Y2 suppression class applications which require line-to-earth safety. Its compact dimensions of 13mm length, 8mm height, and 4mm width support use in space-constrained PCB designs. The radial terminal and through hole mount with a 10mm lead pitch and 17mm lead length allow for dependable insertion and soldering.

The PHE850 series is suitable for industrial, consumer electronics, and power supply applications where compliance with ENEC, UL, and CSA safety standards is essential. Operating temperature ranges from -55°C to 110°C, making it versatile for various environmental conditions. This capacitor meets RoHS requirements, supporting environmentally responsible manufacturing.

Metallised polypropylene film construction ensures long-term stability and performance. Self-extinguishing UL 94V-0 encapsulation enhances electrical safety. Compact form factor supports efficient PCB layout in electronics manufacturing.

Designed for EMI suppression in Y2 line-to-earth applications. Broad temperature operating range enables use in diverse environments. Compliant with industry safety approvals including ENEC, UL, and CSA. Radial lead type with precise 10mm pitch for robust mounting.

RoHS compliant, promoting eco-friendly electronic assembly.

These features make the KEMET PHE850 a reliable choice for manufacturers needing quality film capacitors for power electronics, EMI filtering, and safety-critical applications. Browse the Film Capacitor category at EnvMart for similar components and options from leading brands.
