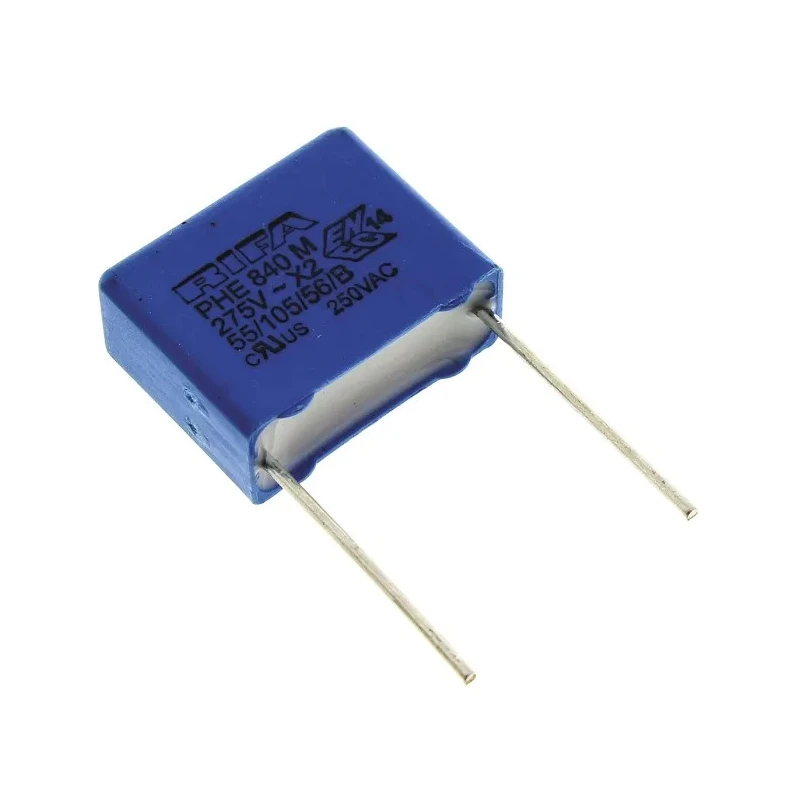

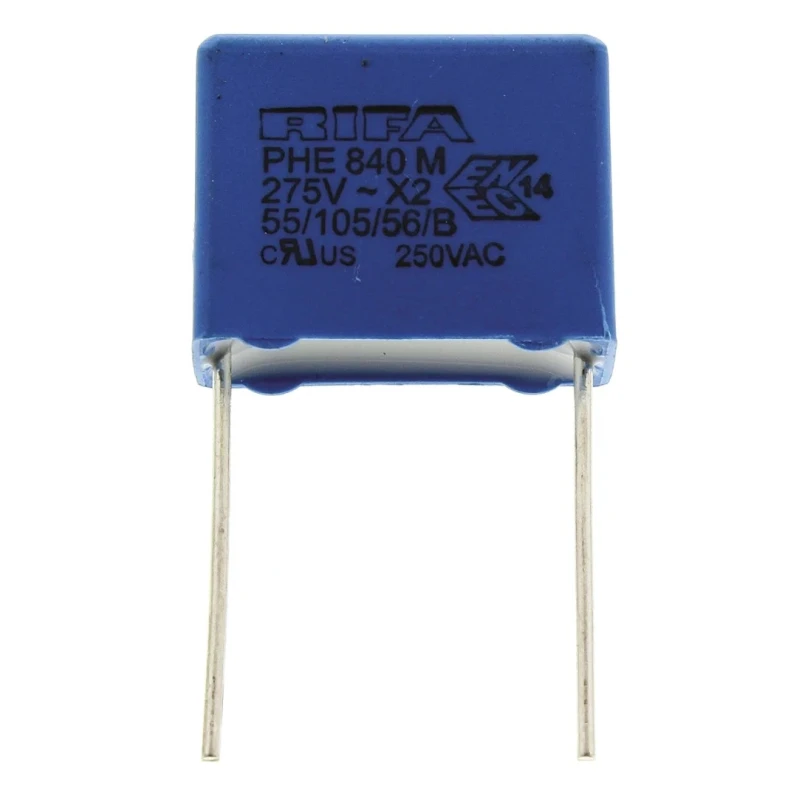

KEMET PHE840 Film Capacitor, ±20 % Tolerance, 220 nF Capacitance, 760 V DC, 280 V AC, Through Hole PHE840
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | KEMET |
| Height | 14.5mm |
| Length | 18mm |
| Model | PHE840 |
| Packaging | Bag |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | PHE840 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Wire |
| Lead Length | 30mm |
| Standards/Approvals | 22.2 No 8, CSA, EN132400, RoHS, UL1283, UL1414 |
| Pin Count | 2 |
| Rated AC Voltage | 280V ac |
| Rated DC Voltage | 760V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| CAP.X2 PHE820MD6220MBrand | Evox-Rifa |
Key Features
- Utilizes metallised polypropylene film for reliable interference suppression in X2 and across-the-line applications.
- Encapsulated in self-extinguishing material conforming to UL94V-0 standards.
- Features 15 mm lead pitch and 30 mm wire lead length for secure mounting.
- Operating temperature ranges from -55°C to a maximum of 105°C ensuring stable performance.
- Complies with multiple standards including EN132400, UL1283, UL1414, CSA, and RoHS.
- Physical dimensions include a height of 14.5 mm, width of 8.5 mm, and length of 18 mm.
- Lead diameter is 0.8 mm with two pins for electrical connection.
- Suitable for EMI suppression in electronic and electrical equipment.
Product Description
KEMET PHE840 Film Capacitor (Model: PHE840) is a high-quality metallised polypropylene film capacitor rated at 220 nF capacitance with ±20 % tolerance. It operates at a rated DC voltage of 760 V and an AC voltage rating of 280 V. Designed for through hole mounting, this capacitor is ideal for EMI suppression and interference suppression applications in various industrial and electronic sectors.
The capacitor is encapsulated in self-extinguishing material meeting UL94V-0 safety requirements, ensuring safe use in electrical systems. Its 15 mm lead pitch and 30 mm lead length with wire terminals provide ease of installation and secure mounting on PCBs.
Designed to withstand temperatures ranging from -55°C to 105°C, this capacitor maintains reliable performance in demanding environments. Its physical dimensions are compact with a height of 14.5 mm, width of 8.5 mm, and length of 18 mm, making it suitable for space-constrained designs.
This product conforms to internationally recognized standards and approvals including EN132400, UL1283, UL1414, CSA, and RoHS, fulfilling stringent quality and safety criteria. It is manufactured in Indonesia to high production standards.
The PHE840 capacitor is well-suited for use in industrial, electronic manufacturing, power supply, and HVAC applications where high voltage and reliable EMI suppression are required.
Utilizes metallised polypropylene film for interference suppression. Encapsulated in UL94V-0 rated self-extinguishing material. Compliant with EN132400, UL1283, UL1414, CSA, and RoHS regulations. Wire terminal type with 15 mm lead pitch and 30 mm lead length.
Operating temperature range of -55°C to 105°C ensures durability. Compact dimensions and 0.8 mm lead diameter aid in installation. Rated for 220 nF capacitance with ±20 % tolerance. Rated AC and DC voltages of 280 V and 760 V respectively.
This KEMET Film Capacitor belongs to the PHE840 series, known for quality and reliability in passive electronic components. Discover more industrial capacitors and electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET PHE840 film capacitor has a capacitance rating of 220 nF with a tolerance of ±20%.
This model is rated for a DC voltage of 760 V and an AC voltage of 280 V.
The operating temperature range for this capacitor is from -55°C to a maximum of 105°C.
The physical dimensions of this capacitor are a height of 14.5 mm, a width of 8.5 mm, and a length of 18 mm.
This capacitor is designed for through hole mounting.
The lead pitch is 15 mm, and the lead length is 30 mm.
It complies with multiple standards including EN132400, UL1283, UL1414, CSA, and RoHS.
This model features wire terminals with a lead diameter of 0.8 mm.
It is suitable for EMI suppression and interference suppression in various industrial and electronic sectors.
This capacitor is manufactured in Indonesia.
The capacitor utilizes metallised polypropylene film and is encapsulated in self-extinguishing material conforming to UL94V-0 standards.
This capacitor has two pins for electrical connection.
