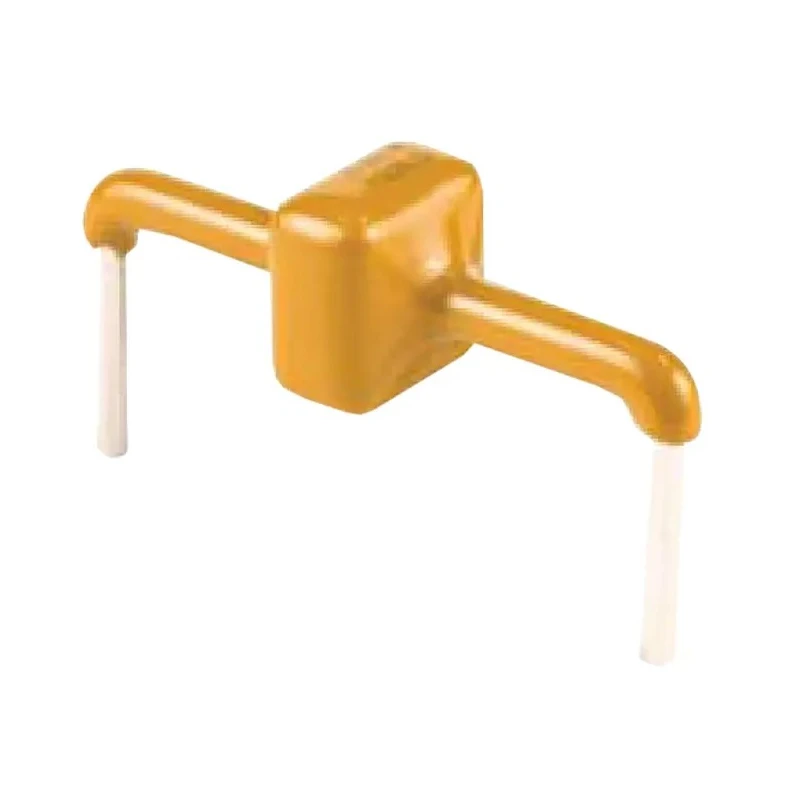

Bourns 1-Element Bi-Directional TVS Diode, 2-Pin, Through Hole Mount, 15V Reverse Stand-off Voltage, 3kA Peak Pulse PTVS3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 10.8mm |
| Length | 4mm |
| Model | PTVS3 |
| Width | 9.3mm |
| Mount Type | Through Hole |
| Series | PTV |
| Maximum Operating Temperature | 125°C |
| Package Type | PTVS3 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 28V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 16V |
| Maximum Reverse Stand-off Voltage Vwm | 15V |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 3kA |
| Maximum Reverse Leakage Current | 10μA |
Key Features
- Offers bidirectional transient voltage suppression with a 15V maximum reverse stand-off voltage.
- Features through-hole mounting in a PTVS3 package with 2 pins for easy PCB integration.
- Operates reliably between -40°C and 125°C for industrial-grade performance.
- Clamping voltage of 28V ensures effective protection against voltage surges.
- Single diode configuration with low maximum reverse leakage current of 10μA.
- Complies with IEC 61000-4-5 8/20μs surge current waveform requirements.
- High test current rating of 10mA enhances device robustness in transient events.
- RoHS compliant ensuring environmentally friendly manufacturing standards.
Product Description
Bourns PTVS3-015C-TH is a high current, single-element bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and surges. This device is ideal for use in power and electronic component applications requiring robust surge protection in both directions.
The diode features a through-hole mount package (PTVS3) with 2-pin connectivity. It supports a maximum reverse stand-off voltage of 15V and withstands peak pulse currents up to 3kA with an 8/20μs surge waveform, meeting IEC 61000-4-5 standards. Its clamping voltage is 28V, providing reliable suppression of transient overvoltage events.
Operating temperature ranges from -40°C to 125°C, ensuring reliable performance under harsh industrial and commercial conditions. The diode has a low maximum reverse leakage current of 10μA and a test current rating of 10mA, evidencing its durability and efficiency in transient surge protection. Compact dimensions of 4mm (length), 9.3mm (width), and 10.8mm (height) facilitate easy integration in PCB designs.
This product is RoHS compliant, promoting environmentally sound manufacturing practices. Typical applications include industrial equipment, power bus systems, industrial controls, telecommunications, and automotive electronics where transient voltage protection is critical.
Offers bidirectional transient voltage suppression to protect circuits from voltage spikes. Rated for high surge currents up to 3kA (8/20μs waveform) ensuring robust protection. Compact through-hole PTVS3 package facilitating easy PCB assembly.
Low leakage current minimizes power loss during normal operation. Wide operating temperature range suited for industrial and commercial environments. Explore further Bourns TVS Diode products on EnvMart for reliable semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse stand-off voltage of this model is 15V.
It can withstand peak pulse currents up to 3kA with an 8/20μs surge waveform.
The clamping voltage is rated at 28V, providing effective protection against voltage surges.
The dimensions are 4mm in length, 9.3mm in width, and 10.8mm in height.
It operates reliably between -40°C and 125°C, suitable for industrial-grade applications.
This diode features a through-hole mounting type for easy PCB integration.
The maximum reverse leakage current is 10μA, which minimizes power loss during normal operation.
This model has 2 pins, making it compatible with standard PCB layouts.
The test current rating is 10mA, enhancing the device's robustness in transient events.
Yes, this TVS diode is RoHS compliant, ensuring environmentally friendly manufacturing standards.
Typical applications include industrial equipment, power bus systems, telecommunications, and automotive electronics where transient voltage protection is critical.
It features a single diode configuration, designed for bi-directional transient voltage suppression.
