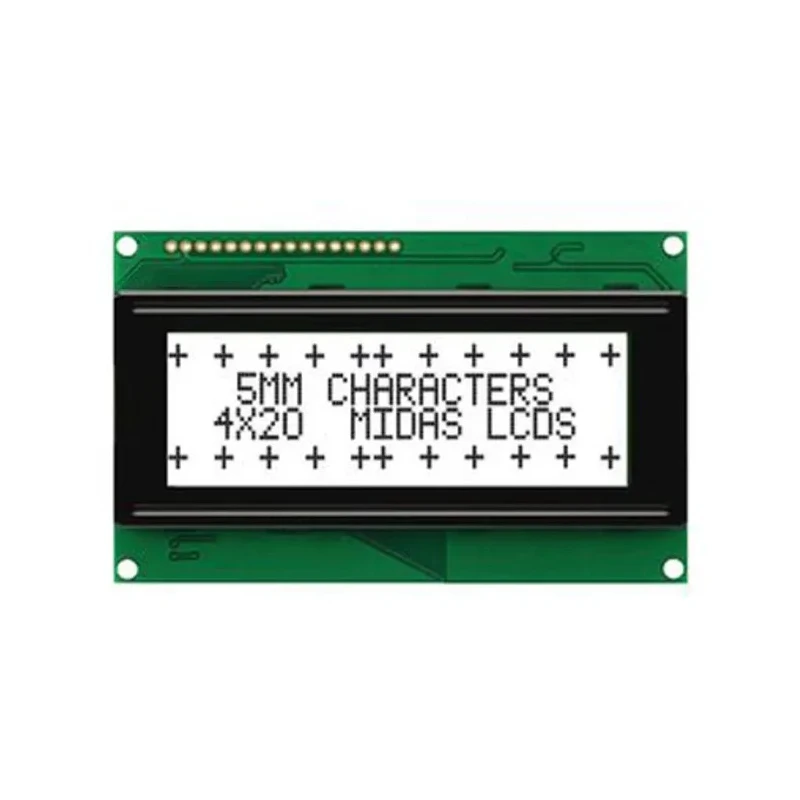

Midas Alphanumeric LED LCD Monochrome Display White on White 4 x 20 MC42005A6W-FPTLW-V2
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Alphanumeric |
| Brand | Midas |
| Model | MC42005A6W-FPTLW-V2 |
| Series | A |
| Character height | 4.8mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 98mm |
| External Depth | 60mm |
| External Height | 14.5mm |
| Interface Type | 8-Bit |
| Standards/Approvals | RoHS |
| Character Width | 3mm |
| Illumination Colour | White |
| Viewing Area Dimensions | 76 x 26 mm |
| Backlight Type | LED |
| Character Matrix | 4 x 20 |
| Display Visions EA DOGS164N-A EA DOG LCD DisplayBrand | Display Visions |
Key Features
- The display features a character matrix of 4 rows and 20 columns for clear alphanumeric output.
- Constructed with chip-on-board (COB) technology for compact mechanical design and reliable performance.
- Complete with an 8-bit parallel interface supporting standard HD44780 compatible controller commands.
- Provides viewing area dimensions of 76 x 26 mm and character height of 4.8 mm for excellent readability.
- Operates effectively in a temperature range from -20°C to 70°C for industrial and commercial applications.
- Backlight illumination color is white using an energy-efficient LED light source.
- Compact external dimensions of 98 mm width, 14.5 mm height, and 60 mm depth facilitate integration into electronic devices.
- Complies with RoHS standards ensuring environmental safety and regulatory compliance.
Product Description
The Midas MC42005A6W-FPTLW-V2 is an alphanumeric LED LCD Monochrome Display designed for electronic and industrial applications requiring a 4 by 20 character matrix. Featuring white on white illumination and LED backlight, this display offers high contrast and excellent readability in varied lighting conditions.
Constructed using chip-on-board (COB) technology, these LCD modules provide a compact and mechanically robust form factor. The parallel 8-bit interface ensures compatibility with standard HD44780 character LCD controllers widely used in embedded systems and industrial controls.
With external dimensions of 98 mm width, 14.5 mm height, and 60 mm depth, this module can be easily integrated into control panels, instrumentation, and display equipment. The viewing area of 76 x 26 mm and character height of 4.8 mm support clear display of alphanumeric characters suitable for user interfaces and status indicators.
This module is rated for operation in temperatures ranging from -20°C to +70°C, making it suitable for harsh industrial environments. Its white LED backlight ensures visibility in low-light conditions and enhances user experience. The MC42005A6W-FPTLW-V2 complies with RoHS standards, reflecting its environmentally responsible design.
Typical use cases include industrial instrumentation displays, laboratory equipment interfaces, embedded system status panels, and commercial device readouts. The module's reliable performance and standardized interface simplify system design and deployment.
The display features a 4 x 20 alphanumeric character matrix for detailed data presentation. Chip-on-board construction provides durability and compact size. 8-bit parallel interface compatible with HD44780 LCD controllers.
White LED backlight for excellent visibility in various lighting environments. Wide operating temperature range from -20°C to 70°C for industrial use. Compact external dimensions facilitate integration in electronic devices.
Complies with RoHS standards ensuring environmental compliance.
Discover more Midas display modules and related components in the EnvMart catalog for industrial, laboratory, and commercial applications requiring reliable visual interface solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display features a character matrix of 4 rows and 20 columns.
The viewing area dimensions are 76 mm by 26 mm.
It utilizes an 8-bit parallel interface compatible with standard HD44780 controller commands.
The display operates effectively within a temperature range of -20°C to 70°C.
The character height is 4.8 mm, which supports clear readability.
The external dimensions are 98 mm in width, 14.5 mm in height, and 60 mm in depth.
It features a white LED backlight for enhanced visibility in various lighting conditions.
Yes, it complies with RoHS standards, ensuring environmental safety and regulatory compliance.
Typical applications include industrial instrumentation displays, laboratory equipment interfaces, and embedded system status panels.
It is constructed using chip-on-board (COB) technology, providing a compact and mechanically robust design.
The illumination color is white, which contributes to its high contrast and readability.
The country of origin for this display is China.
