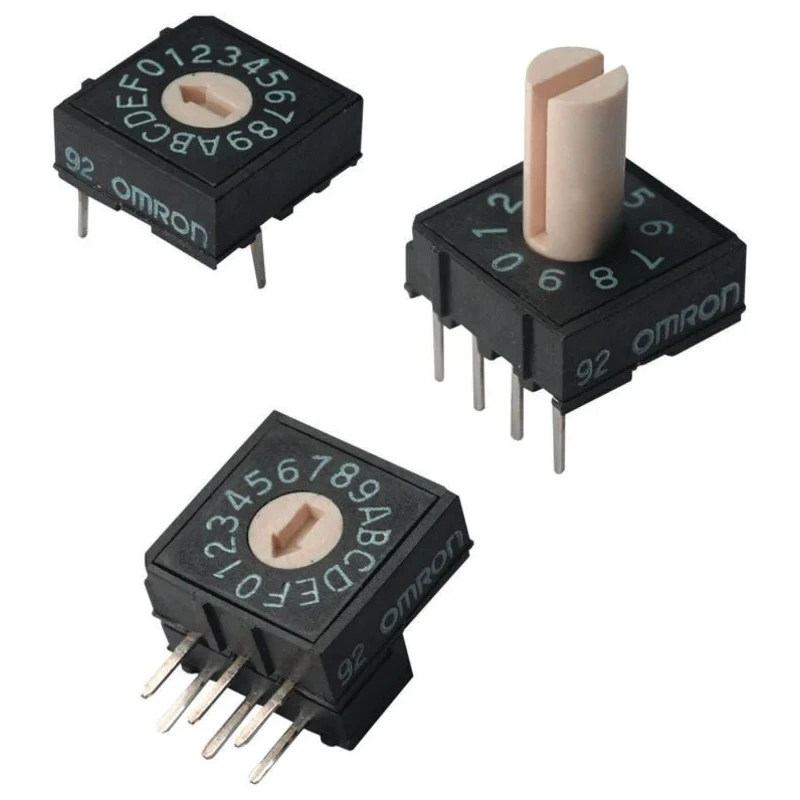

Omron Rotary Coded DIP Switch Through Hole, Rotary Flush Actuator, 25mA Contact Rating, Model A6RV-101RF CHN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Operating Temperature | -25 to +80°C |
| Model | A6RV-101RF CHN |
| Mount Type | Through Hole |
| Actuator Type | Rotary Flush |
| Contact Rating | 25mA @ 24Vdc |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ max |
| Electrical Life | 5000 steps per min |
| Aratas Rotary Shaft Rotary Coded DIP Switch Through HoleBrand | Omron |
Key Features
- Compact rotary flush actuator design for seamless PCB integration.
- Through hole mounting ensures sturdy attachment to printed circuit boards.
- Contact rating of 25mA at 24Vdc suitable for low current circuits.
- Contact resistance maximum of 200 milliohms for stable signal performance.
- Insulation resistance minimum 100 megaohms at 250Vdc supports electrical isolation.
- Electrical life rated at 5000 steps per minute for durable operation.
- Operates reliably in temperatures ranging from -25 to +80 degrees Celsius.
- Sealed rotor construction to IP60 standard prevents ingress of dust and dirt.
Product Description
The Omron A6RV-101RF CHN is a rotary coded DIP switch designed for through hole PCB mounting, equipped with a rotary flush actuator for precise and compact switching operations. Featuring a sealed rotor with an O-ring construction, this switch meets IP60 standards to resist entry of dust and dirt, offering enhanced reliability in various environments.
This switch supports 10 or 16 way switching positions, making it suitable for diverse signal coding needs in electronic circuits.
The contact rating is 25mA at 24Vdc, with a contact resistance maximum of 200 milliohms and insulation resistance minimum of 100 megaohms at 250Vdc, ensuring stable electrical performance.
Its electrical life supports 5000 steps per minute, and it operates efficiently within a wide temperature range from -25°C up to +80°C, allowing usage in industrial, commercial, and laboratory environments.
The component’s 2.54mm pin spacing allows for straightforward PCB integration and soldering. Compact rotary flush actuator design for seamless PCB integration. Through hole mounting ensures sturdy attachment to printed circuit boards.
Contact rating of 25mA at 24Vdc suitable for low current circuits. Contact resistance maximum of 200 milliohms for stable signal performance. Insulation resistance minimum 100 megaohms at 250Vdc supports electrical isolation.
Electrical life rated at 5000 steps per minute for durable operation. Operates reliably in temperatures ranging from -25 to +80 degrees Celsius. Sealed rotor construction to IP60 standard prevents ingress of dust and dirt.
Manufactured in China by Omron, ensuring quality and RoHS compliance. This Rotary Coded DIP Switch is widely applicable in electronics, automation, and manufacturing industries, providing reliable switching for control circuits and signal selection.
Discover more products like this in the Electronics & Electricals category on EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 25mA at 24Vdc, making it suitable for low current circuits.
The insulation resistance is a minimum of 100 megaohms at 250Vdc, supporting electrical isolation.
The maximum contact resistance is 200 milliohms, ensuring stable signal performance.
It operates reliably in temperatures ranging from -25 to +80 degrees Celsius.
This model features through hole mounting, ensuring a sturdy attachment to printed circuit boards.
The electrical life is rated at 5000 steps per minute, allowing for durable operation.
It uses a rotary flush actuator design for precise and compact switching operations.
The component has a pin spacing of 2.54mm, facilitating straightforward PCB integration and soldering.
The sealed rotor construction meets the IP60 standard, preventing ingress of dust and dirt.
This switch is widely applicable in electronics, automation, and manufacturing industries for control circuits and signal selection.
It is manufactured in China by Omron, ensuring quality and RoHS compliance.
This switch supports either 10 or 16 way switching positions, catering to diverse signal coding needs.
