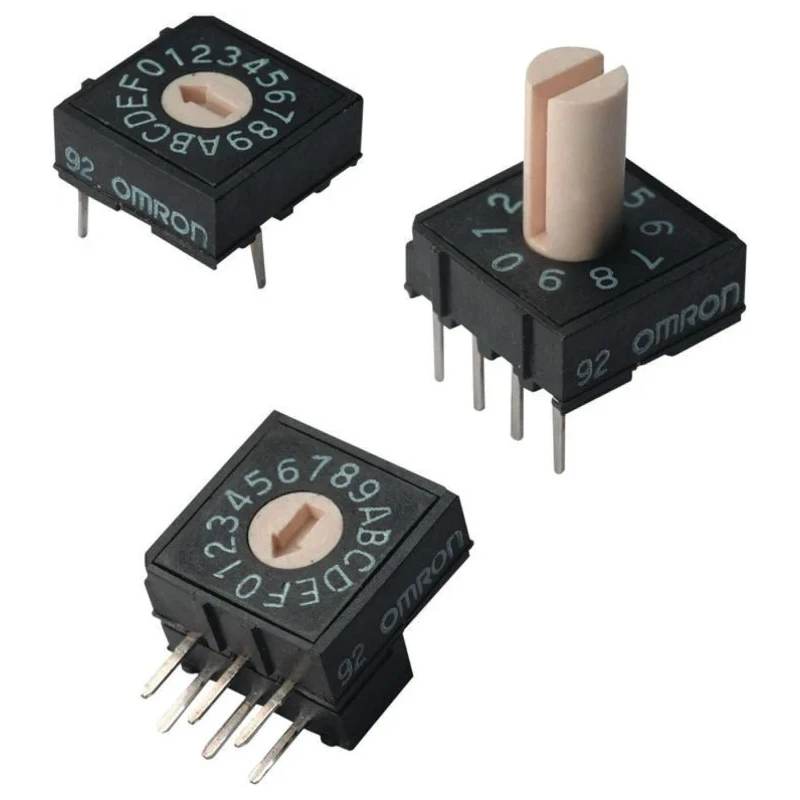

Omron Rotary Coded DIP Switch Through Hole Rotary Shaft A6RV-102RS CHN
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Operating Temperature | -25 to +80°C |
| Model | A6RV-102RS CHN |
| Mount Type | Through Hole |
| Actuator Type | Rotary Shaft |
| Contact Rating | 25mA @ 24Vdc |
| Insulation resistance | 100MΩ min @ 250Vdc |
| Contact Resistance | 200mΩ max |
| Electrical Life | 5000 steps per min |
| Aratas Rotary Flush Rotary Coded DIP Switch Through HoleBrand | Omron |
Key Features
- This DIP switch offers a sealed O-ring construction rated IP60, preventing ingress of dirt and dust.
- It supports 10 or 16 switching positions with low contact resistance.
- The contact rating is 25mA at 24V DC, suitable for low-power switching applications.
- Electrical life extends to 5000 steps per minute ensuring durability in repetitive use.
- Operating temperature ranges from -25 to +80 degrees Celsius for wide environmental tolerance.
- The switch mounts through hole with 2.54mm pin spacing compatible with standard PCB layouts.
- Insulation resistance is rated at 100MΩ minimum at 250V DC for safe operation.
Product Description
The Omron A6RV-102RS CHN Rotary Coded DIP Switch Through Hole with rotary shaft actuator is engineered for precise position encoding in electronic assemblies. This component features an IP60 rated O-ring sealed rotor that provides effective protection against dust and dirt ingress, promoting reliability in harsh operating environments.
Designed for PCB through hole mounting with 2.54mm pin spacing, it supports 10 or 16 selectable positions, allowing versatile configuration options for circuit design. Contact rating at 25mA and 24V DC enables switching of low power signals, while the maximum contact resistance of 200mΩ ensures efficient current flow with minimal loss.
The switch guarantees an electrical life of up to 5000 steps per minute, suitable for applications requiring frequent adjustment or switching operations. Its operating temperature range from -25°C to +80°C makes it suitable for industrial, automation, electrical, and control systems operating under diverse climate conditions.
The insulation resistance of 100MΩ at 250V DC enhances safety and prevents leakage currents in electronic circuits. This Rotary Coded DIP Switch is ideal for use in industrial automation, electronic instrumentation, control systems, and PCB based equipment requiring reliable position encoding.
The robust sealed design ensures longevity and consistent performance in demanding applications. Its through hole mounting simplifies installation in standard PCB layouts for ease of manufacturing. Choose Omron products on EnvMart for dependable electronic components widely used in industrial and electronics sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for the Omron A6RV-102RS CHN is from -25 to +80 degrees Celsius.
The contact rating of this rotary coded DIP switch is 25mA at 24V DC, making it suitable for low-power switching applications.
This model supports either 10 or 16 selectable switching positions, providing versatility for circuit design.
The insulation resistance is rated at a minimum of 100MΩ at 250V DC, enhancing safety and preventing leakage currents.
It uses through hole mounting with a pin spacing of 2.54mm, which is compatible with standard PCB layouts.
The maximum contact resistance is 200mΩ, ensuring efficient current flow with minimal loss.
The electrical life extends up to 5000 steps per minute, making it suitable for applications requiring frequent adjustments.
This model features a rotary shaft actuator, designed for precise position encoding in electronic assemblies.
The country of origin for this rotary coded DIP switch is China.
It is ideal for use in industrial automation, electronic instrumentation, control systems, and PCB-based equipment requiring reliable position encoding.
The switch features an IP60 rated O-ring sealed rotor, which prevents the ingress of dirt and dust, promoting reliability in harsh environments.
The low contact resistance of 200mΩ ensures efficient current flow, which is crucial for maintaining signal integrity in electronic circuits.
