3M 3000 Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3793-6202RB

Free Delivery in India | Lowest Global Shipping Charges

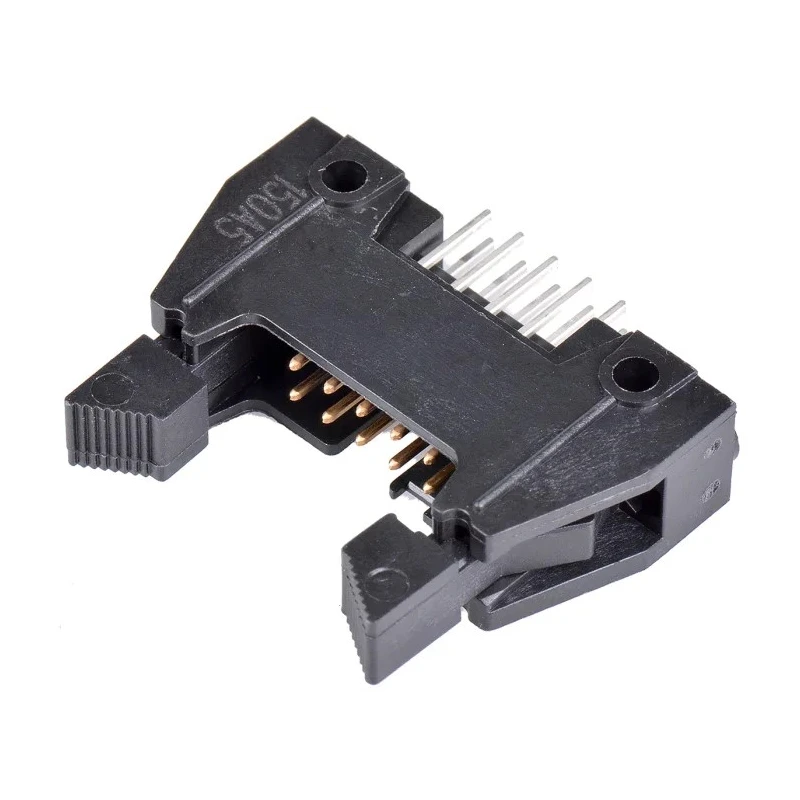

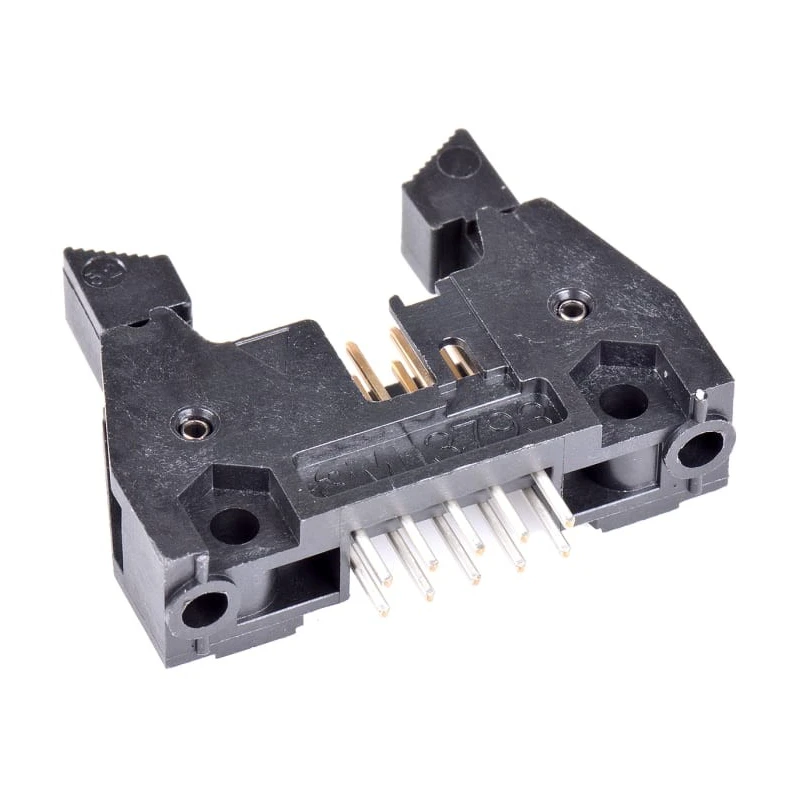

3M 3000 Series Straight Through Hole PCB Header, 10 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N3793-6202RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	25V
Brand	3M
Orientation	Straight
Current	2.0
Model	N3793-6202RB
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
Connector,PCB,multipole,header,solder,straight,short,10way,HE10Brand	3M

Key Features

Features a double row of 10 male contacts with 2.54 mm pitch for precision connectivity.
Shrouded design protects contacts from damage and ensures secure mating.
Made with glass filled polyester housing suitable for high temperature soldering up to 260°C.
Equipped with roll pin style ejector latches for secure retention and easy connector removal.
Gold plated copper alloy contacts provide superior conductivity and corrosion resistance.
Operates within temperature range from -55°C to 105°C for varied industrial applications.
Compatible with board-to-board and wire-to-board connector systems with through-hole mounting.
Includes polarisation features to minimize misalignment and provide secure mating.

Product Description

The 3M N3793-6202RB 3000 Series Straight Through Hole PCB Header is a versatile connector solution designed for reliable electrical and mechanical performance in a broad range of applications. Featuring 10 male contacts arranged in two rows with a standard 2.54 mm pitch, this shrouded PCB header protects contact pins from mechanical damage and contaminant ingress, ensuring durability and longevity.

Constructed with a glass filled polyester housing capable of withstanding lead-free soldering processes up to 260°C, it supports high temperature operations according to JEDEC J-STD-020C standards. The copper alloy contacts are gold plated to provide excellent conductivity and resistance to corrosion, further enhancing the connector's reliability.

Ejector latches with roll pin retention increase hold strength and enable easy removal of mating connectors, making this PCB Header well suited for industrial and high vibration environments. The design includes center bump polarisation notches and optional military polarisation keys to prevent misalignment during assembly.

Designed for through-hole mounting, this header supports board-to-board and wire-to-board connections and operates efficiently within a temperature range of -55°C to 105°C. Typical use case sectors include industrial automation, instrumentation, medical devices, consumer electronics, and communication equipment manufacturing.

Double row, 10 contact male header with 2.54 mm pitch. Shrouded housing for protection and secure mating. Glass filled polyester housing resists lead-free soldering heat up to 260°C. Gold plated copper alloy contacts provide high conductivity.

Ejector latches enhance retention and facilitate connector removal. Polarisation features minimize connection errors and misalignment. Suitable for board-to-board and wire-to-board applications. Wide operating temperature range from -55°C to 105°C.

Manufactured in the United States adhering to rigorous quality standards.

This 3M product is a trusted choice for engineers and manufacturers needing high quality PCB connectors. Browse EnvMart's Electronics Components category for more 3M connectivity solutions and accessories.
