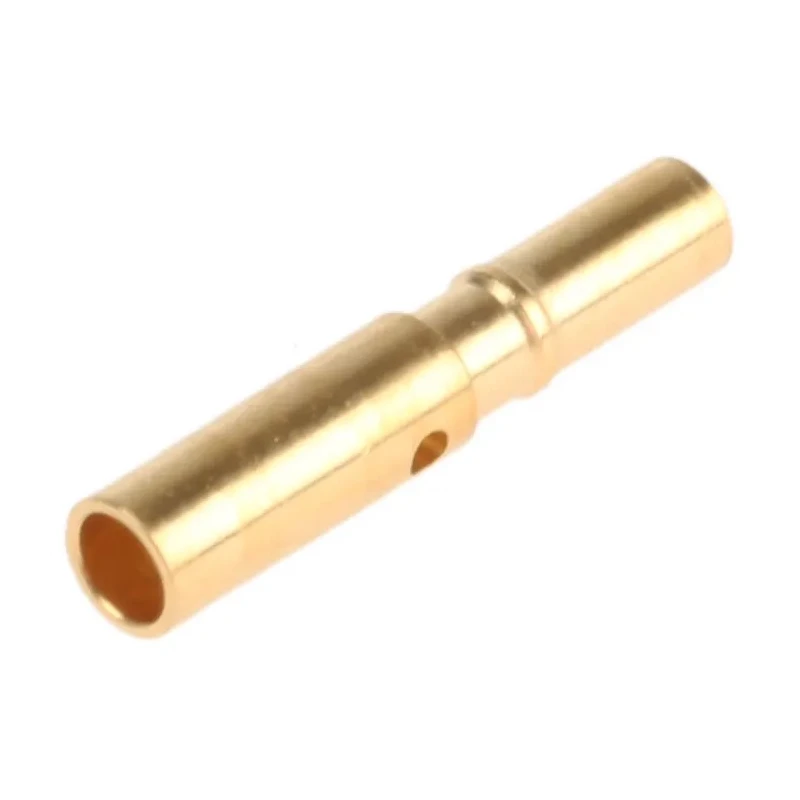

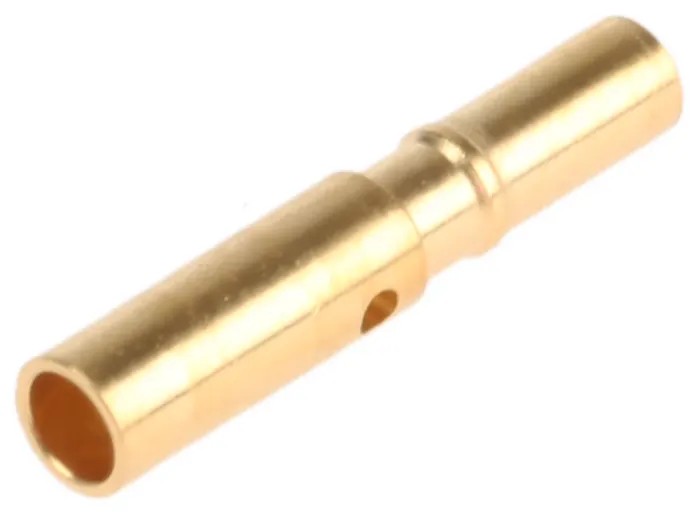

HARWIN Datamate Series Female Crimp Terminal, 22 AWG Min Crimp, 22 AWG Max M80-0110005

HARWIN M80-0110005 Datamate Series Female Crimp Terminal is engineered for electrical and electronic applications requiring secure wire termination for 22 AWG wires. It features gold plated, high reliability beryllium copper alloy contacts that provide excellent electrical conductivity and resistance to corrosion. This female crimp terminal is designed for rear insertion into compatible Datamate L-Tek series connector housings such as J-Tek and Mix-Tek, enabling robust and stable connections critical for high-vibration and shock environments.

The terminal supports a current rating of 3A and maintains a maximum contact resistance of 25mΩ, ensuring minimal power loss and high performance. It functions reliably within an operating temperature range of -55°C to 125°C, suitable for demanding industrial and commercial applications.

Its construction ensures durability with a four-finger contact clip design that maintains connection integrity over numerous mating cycles, making it ideal for harsh environments in industries such as aerospace, defense, telecommunications, and automotive electronics.

The product complies with international standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, underscoring its quality and suitability for safety-critical applications. Manufactured in the United Kingdom, this crimp terminal ensures high-quality manufacture and consistency.

Compatible with J-Tek and Mix-Tek Connector Housings and Datamate L-Tek series. Gold plating provides excellent corrosion resistance and conductivity. Beryllium Copper Alloy contact material for durability and elasticity.

Supports currents up to 3A with low contact resistance of 25mΩ. Wide operating temperature range from -55°C to 125°C. Rear insertable female crimp contact design. Complies with key industrial standards for reliability and safety.

These terminals are widely used in industrial, commercial, electronics manufacturing, and laboratory sectors where reliable and durable wire connections are essential. The HARWIN Datamate Series female crimp terminals facilitate efficient assembly with excellent mechanical and electrical performance. For enhanced production efficiency, compatible crimp tools and removal tools are available separately. Explore the comprehensive range of Harwin connectors and accessories at EnvMart for your electronics assembly needs.
