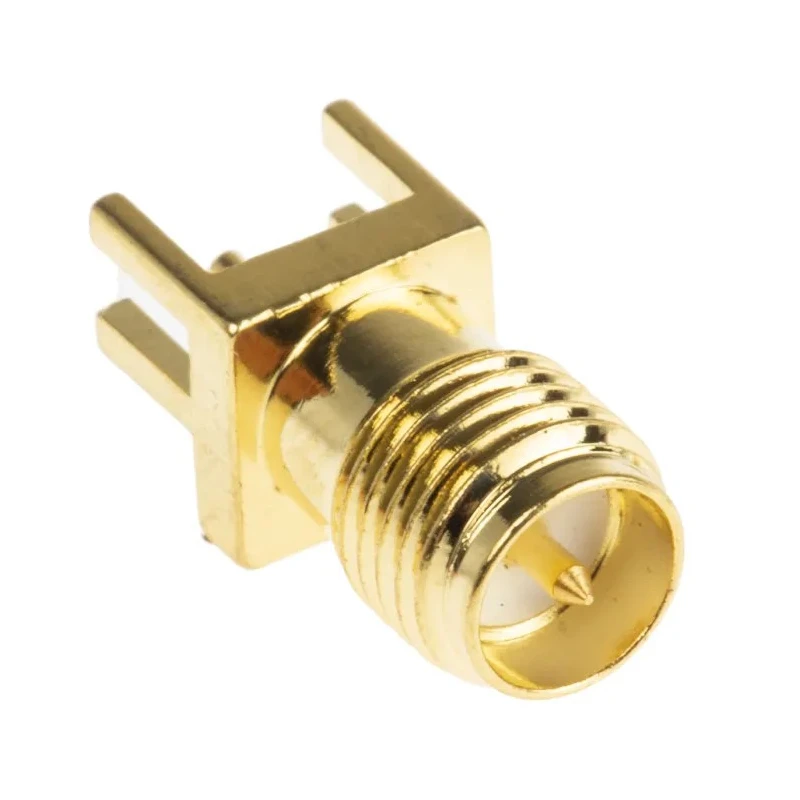

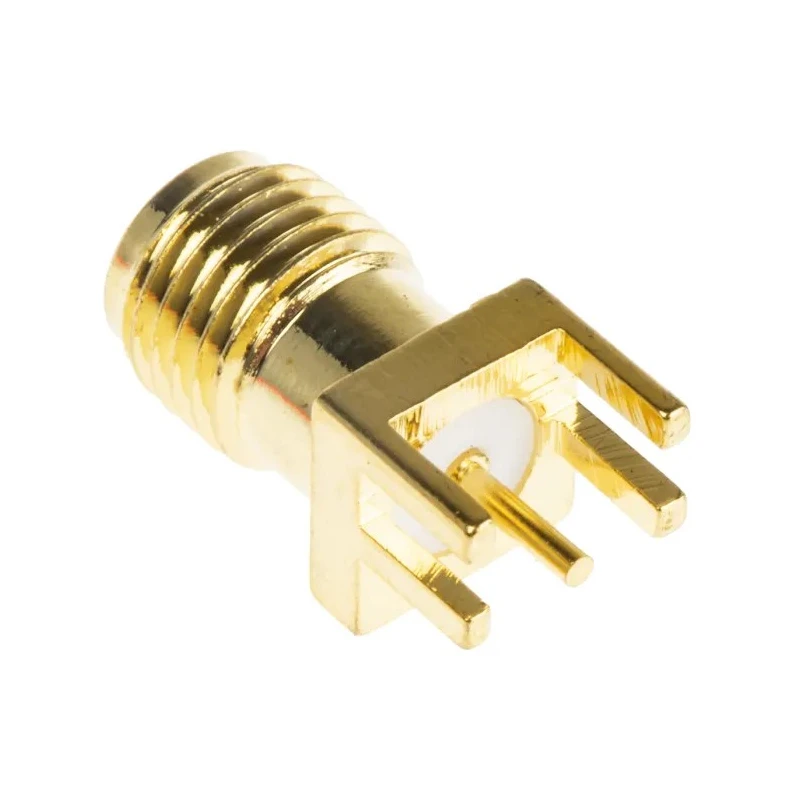

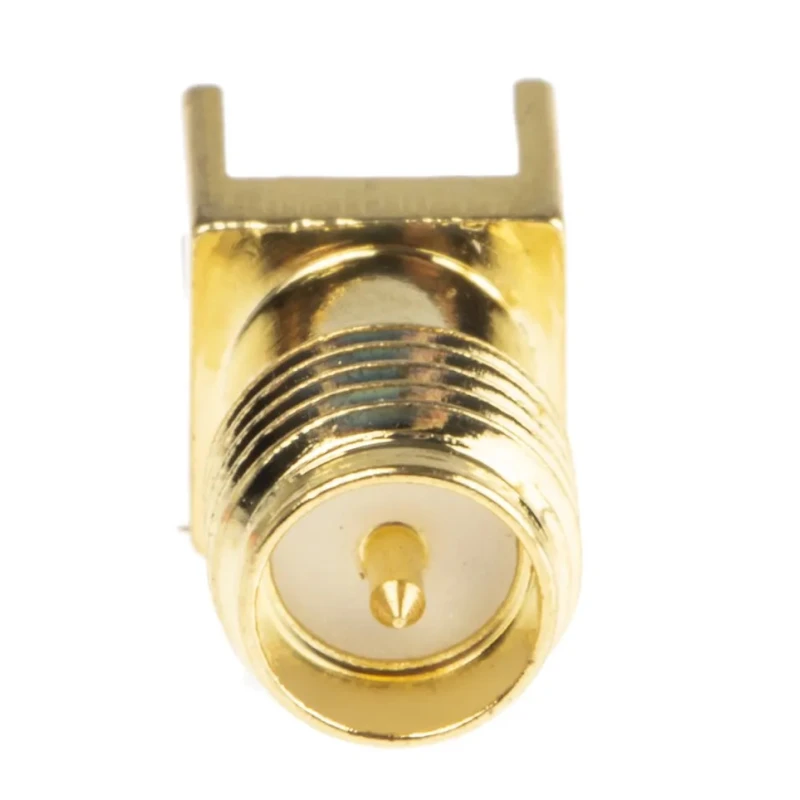

RF Solutions CON Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body Solder CON-SMA-EDGE-SRP

RF Solutions CON-SMA-EDGE-SRP is an edge mount coaxial connector classified as a female SMA type, designed for high-frequency RF applications with 50 Ω impedance and a maximum operating frequency of 18GHz. Featuring a straight body with solder termination, this connector is ideal for precise and compact PCB assembly, supporting board thicknesses from 1.2 to 1.6mm.

The connector's contacts are made from beryllium copper alloy and plated with gold, providing excellent electrical performance and durability. The Teflon insulator ensures electrical insulation and stability under various environmental conditions. The connector mounts via an edge mount design and incorporates a 1/4-36UNS-2A threaded interface for secure mechanical stability.

Its reverse polarity female connection allows compatibility with a variety of RF system configurations, widely used in electronics manufacturing, telecommunications, instrumentation, and laboratory equipment. Operating reliably at minimum temperatures of 0°C, it is suited for challenging indoor and controlled industrial environments.

RF Solutions' CON Series connectors are engineered to maintain signal integrity up to frequencies of 18GHz, making them suitable for advanced RF systems requiring low insertion loss and high isolation. The small footprint design optimizes PCB real estate, aiding compact and efficient circuit layout.

Designed for edge mount applications on printed circuit boards with 1.2 to 1.6mm thickness. Features gold-plated beryllium copper alloy contacts for superior conductivity and corrosion resistance. Supports operating frequencies up to 18GHz for high-frequency signal integrity.

Constructed with a Teflon insulator and threaded 1/4-36UNS-2A for secure mechanical connection. Reverse polarity female connector suitable for both commercial and industrial RF designs. Compact small footprint design minimizes PCB space usage.

Operates reliably at minimum temperatures down to 0°C.

This coaxial connector is ideal for industrial electronics, RF communication systems, laboratory instrumentation, telecommunications infrastructure, and manufacturing applications where reliable, high-performance RF connectivity is critical. RF Solutions products ensure longevity, performance, and ease of integration in demanding electronic assemblies.
