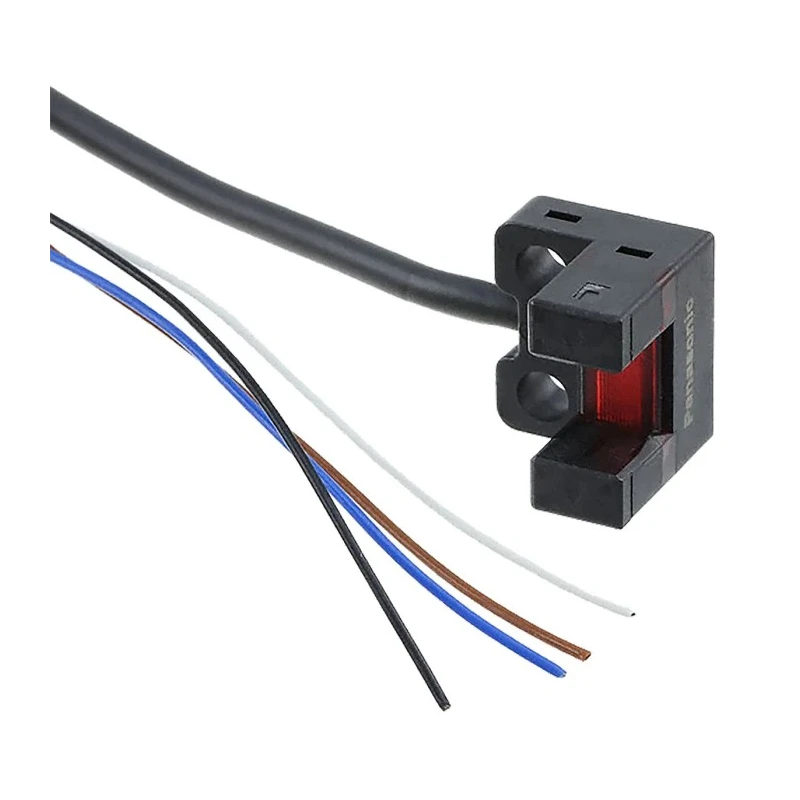

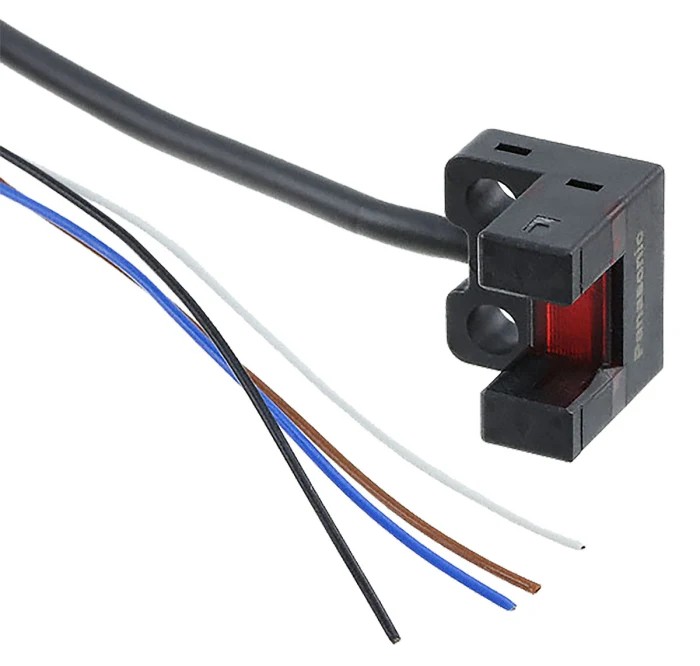

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-L25-C3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-L25-C3 |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polycarbonate, Polybutylene Terephthalate |
| Output type | NPN |
| Series | PM-25 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
Key Features
- Compact ultra-small U-shaped fork sensor design for easy integration.
- Through beam detection type featuring emitter and receiver in a single housing.
- Robust polycarbonate and polybutylene terephthalate housing ensures durability.
- Operating temperature range from -25°C to 55°C for versatile environments.
- Supports maximum 24V DC voltage and maximum 50mA current operation.
- Infrared light source enabling precise opaque material detection.
- IP64 protection rating offers dust and water splash resistance.
- Equipped with reverse polarity and output short circuit protection for safety.
Product Description
Panasonic PM-L25-C3 Through Beam Photoelectric Sensor offers a compact fork sensor solution with a 6 mm detection range, ideal for automated industrial applications requiring precise sensing of opaque materials. Its ultra-small U-shaped design consolidates the emitter and receiver into a single robust housing made from polycarbonate and polybutylene terephthalate, providing durability against mechanical stress and vibrations.
The sensor operates within a wide temperature range of -25°C to 55°C and supports maximum 24V DC voltage with a maximum current of 50mA, making it suitable for diverse industrial environments. The infrared light source facilitates accurate detection of opaque objects, while the IP64 rating guarantees protection against dust ingress and water splashes.
This model integrates safety features including reverse polarity protection and output short circuit prevention, contributing to reliable long-term operation. The chassis mount option with M2 / M3 screws enables straightforward installation within control panels and machinery.
Manufactured in Japan, it complies with IEC standards, assuring quality and performance consistency required in industries such as manufacturing, automation control, HVAC, and laboratory instrumentation.
Compact ultra-small U-shaped fork sensor design for easy integration. Through beam detection consolidates emitter and receiver in a single housing. Durable polycarbonate and polybutylene terephthalate construction. Wide operating temperature range from -25°C to 55°C.
Supports up to 24V DC voltage and 50mA maximum current. Infrared light source enables precise opaque material detection. IP64 rating provides protection against dust and water splashes. Reverse polarity and short circuit protections for safe operation.
Easy chassis mount with M2 / M3 screws. Compliance with IEC standards and made in Japan for quality assurance.
Panasonic's PM-L25-C3 fork style Photoelectric Sensor suits industrial automation, control systems, and sensor integration requiring reliable object detection in demanding settings. Explore more Panasonic sensors and automation controls on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PM-L25-C3 sensor has a detection range of 6 mm, making it suitable for precise sensing applications.
This model features an NPN output type, which is commonly used in various industrial applications.
The maximum operating temperature for the PM-L25-C3 sensor is 55°C, allowing it to function in a variety of environments.
This sensor is designed to detect opaque materials, utilizing infrared light for accurate sensing.
The PM-L25-C3 has an IP64 rating, providing protection against dust ingress and water splashes.
The housing of this sensor is made from polycarbonate and polybutylene terephthalate, ensuring durability.
The response time of the PM-L25-C3 sensor is 20 to 80μs, allowing for quick detection of objects.
This model is designed for chassis mounting and can be installed using M2 or M3 screws.
The PM-L25-C3 sensor supports a maximum DC voltage of 24V, suitable for various industrial applications.
This sensor includes reverse polarity protection and output short circuit protection for enhanced safety during operation.
The minimum operating temperature for this sensor is -25°C, allowing it to function in colder environments.
This model complies with IEC standards, ensuring quality and performance consistency in industrial applications.
