Hirose DF12 Series 30-Contact 2 Row Straight Surface PCB Socket 0.5 mm Pitch Solder DF12

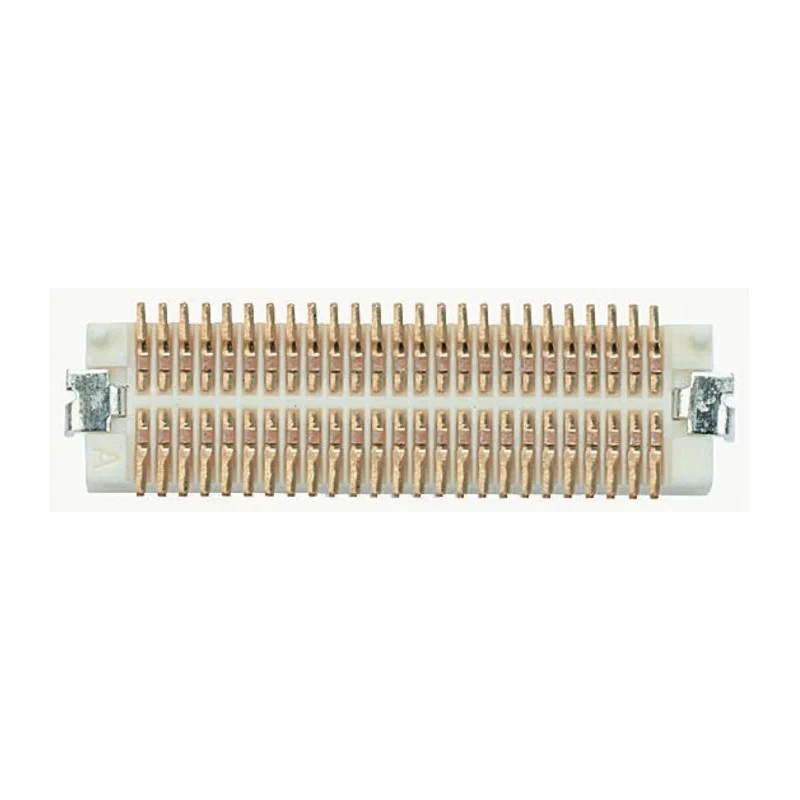

Hirose DF12 30-Contact 2 Row Straight Surface PCB Socket DF12 is a high-quality SMT board-to-board connector engineered for ultra-miniature applications with a 0.5 mm contact pitch. It features a polyamide housing with UL94V-0 flame resistance and gold-plated copper female contacts that offer excellent electrical conductivity and durability in demanding industrial environments.

This socket supports a current rating of 300 mA and voltage up to 50 V, making it suitable for a wide range of electronic and electrical devices. The product has a stacking height of 3 mm and a row pitch of 2.4 mm, designed for compact PCB assembly and efficient space management.

Operating temperature ranges from -55°C to 125°C, allowing reliable performance in both low and high temperature conditions commonly encountered in industrial, laboratory, communication, and consumer electronics applications. The straight orientation and surface mount design facilitate easy PCB integration and solder termination ensures secure mechanical and electrical connections.

Additional features include board guide bosses and solder retention metal fittings to enhance mechanical stability during assembly and use. The DF12 series connectors are widely used in automotive electronics, telecommunications, computing devices, and other precision electronics requiring small pitch, reliable board-to-board connections.

Features 30 female solder-type contacts arranged in two rows with 0.5 mm pitch spacing. High durability gold plating on copper contacts to ensure stable electrical performance. Polyamide housing material with UL94V-0 flame retardant rating for safety.

Compact dimensions with a 3 mm stacking height and 2.4 mm row pitch optimize PCB layout. Operating voltage of 50 V and current rating of 300 mA suit low voltage electronic circuits. Wide temperature range (-55°C to 125°C) for use in harsh environments.

Designed with surface mount technology for automated PCB assembly lines. Straight connector orientation for simple board-to-board mating. Suitable for industrial, laboratory, telecommunications, and consumer electronics applications requiring high-density PCB connectivity.

This Hirose DF12 Series PCB Socket supports various stacking heights in the series for different design needs. The specific model DF12(3.0)-30DS-0.5V(86) denotes the 3 mm stacking height version with 30 contacts and 0.5 mm pitch. This product is compliant with RoHS directives and is suitable for modern electronics manufacturing requiring high precision connectors.
