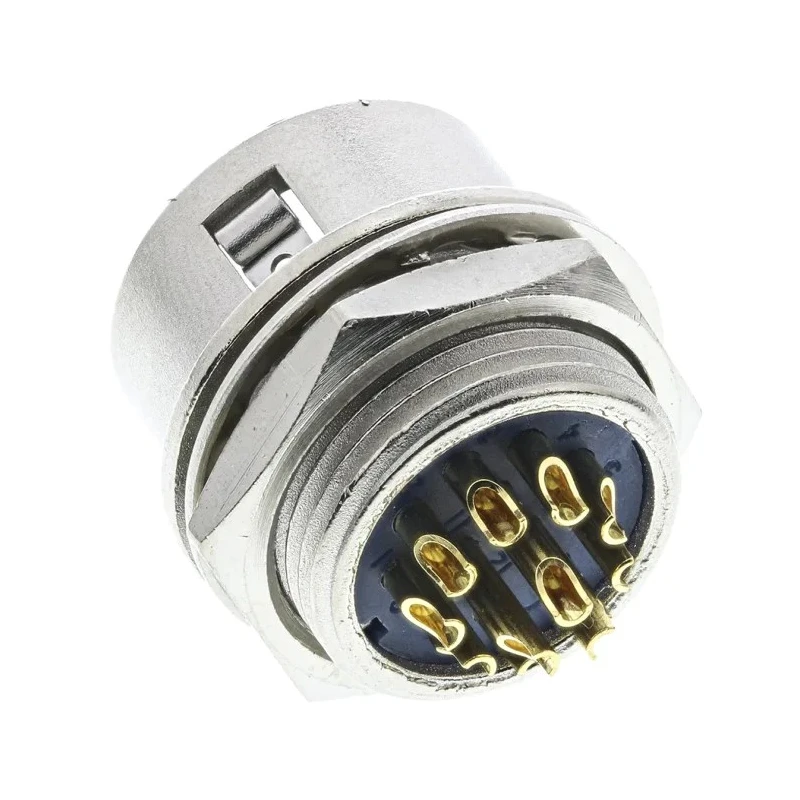

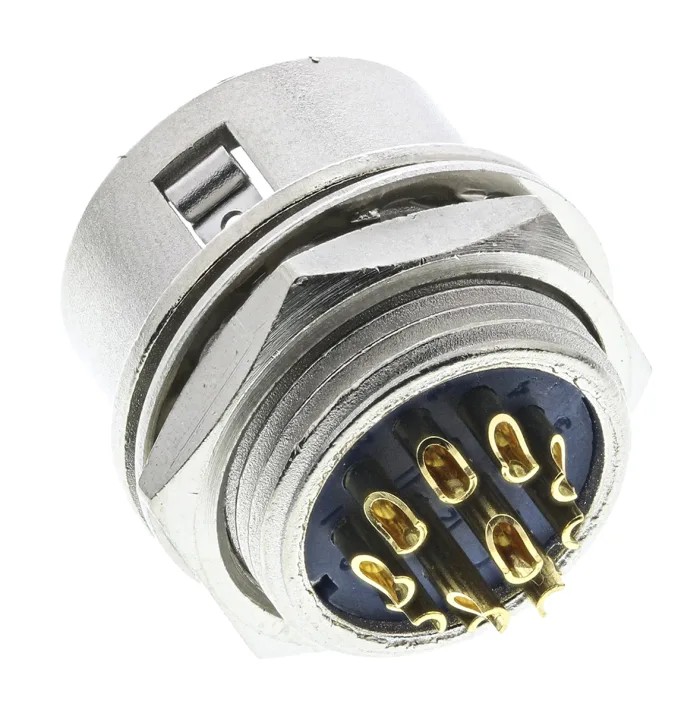

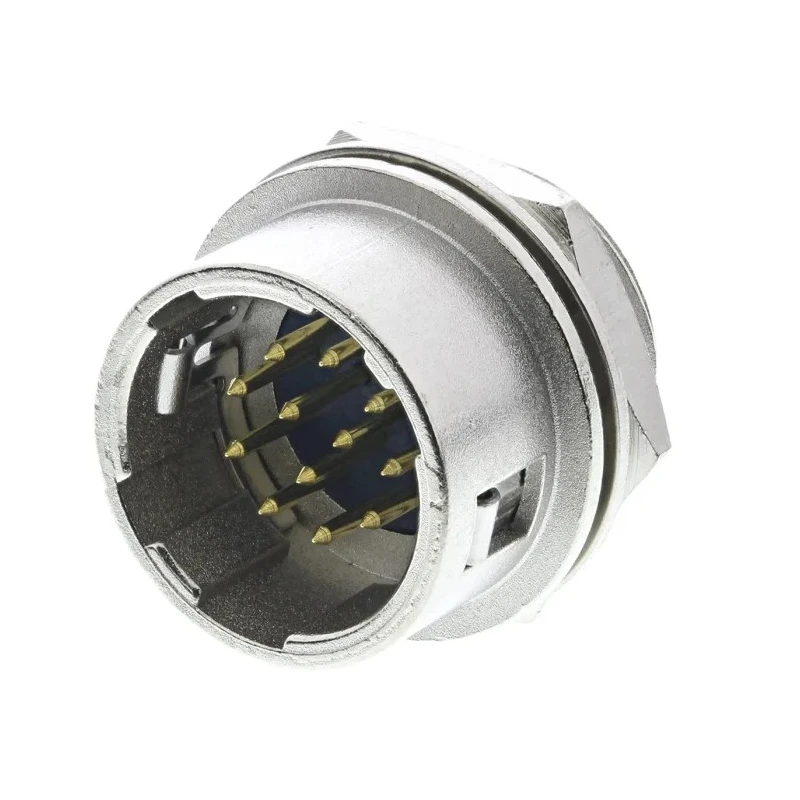

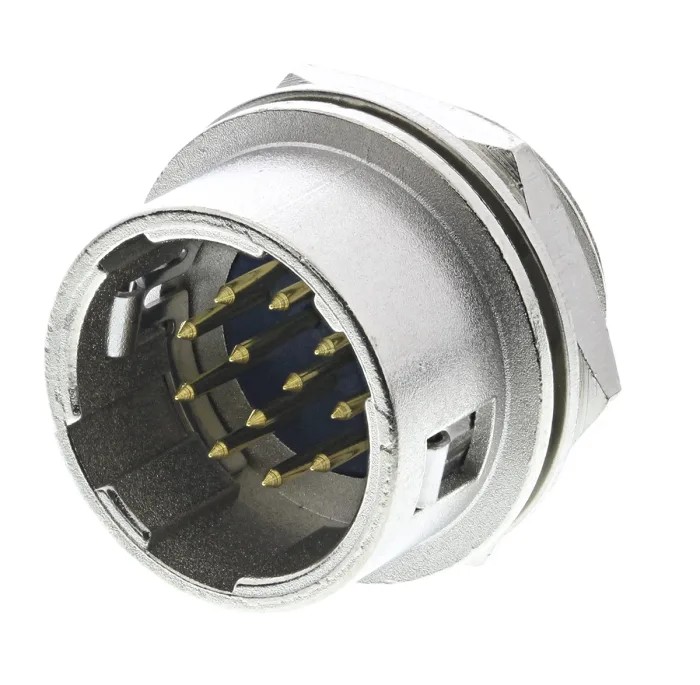

Hirose Circular Connector Miniature Panel Mount Socket Male 12 Contacts 2A 100V HR10 Series
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | HR10 |
| Mount Type | Panel Mount |
| Housing Material | Brass, Zinc |
| Contact Material | Bronze |
| Series | HR10 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 12 |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 10 |
| Mating Type | Push Pull |
| Connector Size | Miniature |
| Plug/Socket | Socket |
| Hirose, HR10 Panel Mount Miniature Connector Socket, 12 Way, 2ABrand | Hirose |
Key Features
- Features a reliable push-pull latching mechanism for quick connection and disconnection.
- Constructed with brass and zinc housing for durability.
- Gold-plated bronze contacts ensure excellent conductivity and corrosion resistance.
- Supports a nominal current rating of 2A and operating voltage of 100V.
- Designed for solder termination with a straight orientation.
- Operates in temperature range from -25°C to 85°C for wide environmental compatibility.
- Miniature shell size 10 with a 12-pin pole format.
- Panel mount type suitable for secure installation in equipment.
Product Description
Hirose HR10-10R-12P(73) circular connector is a highly durable and reliable miniature connector featuring a compact design suitable for industrial electronic applications. It is a panel mount socket with a male contact gender, incorporating 12 gold-plated bronze contacts that provide excellent electrical performance and resistance to corrosion.
The connector operates at a voltage of 100V and can handle a current up to 2 amperes, making it ideal for low power signal and control circuits. Its push-pull latching mechanism allows for easy and secure mating and unmating, reducing downtime and improving operational efficiency.
Constructed from robust brass and zinc materials, this connector ensures long-lasting mechanical and environmental resistance. The solder termination type facilitates a secure and stable electrical connection with cabling. Its straight orientation and shell size 10 ensure compatibility with a variety of equipment panel layouts.
Operating temperature ranges from -25°C to 85°C, allowing use in diverse industrial environments including manufacturing, automation, instrumentation, and control systems. The five key polarization system minimizes the risk of wrong connections, enhancing system reliability and safety.
Push-pull latching mechanism allows fast and secure connections. Housing made of brass and zinc provides durability and corrosion resistance. Gold-plated bronze contacts ensure optimal electrical conductivity. Rated for 2A current and 100V voltage operation.
Solder termination type for stable and long-lasting connections. Compact miniature shell size 10 with 12 contacts in a panel mount configuration. Wide temperature range of -25°C to +85°C supports harsh environments. Five key polarization prevents incorrect mating and enhances safety.
This Hirose HR10 Series connector is widely used in industrial, manufacturing, instrumentation, and control applications where compact high-reliability connections are required. It supports modular system designs, ensuring ease of maintenance and replacement.
Explore EnvMart's extensive range of precision Circular Connectors and related components for various industrial electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a nominal current rating of 2A and an operating voltage of 100V.
The housing is constructed from brass and zinc, while the contacts are made of gold-plated bronze for optimal conductivity and corrosion resistance.
It operates within a temperature range of -25°C to 85°C, making it suitable for various industrial environments.
This connector features 12 contacts in a male configuration.
It utilizes a solder termination type, ensuring a stable and secure electrical connection.
The shell size of this connector is size 10, which is classified as a miniature connector.
It features a push-pull latching mechanism that allows for quick and secure connections and disconnections.
Yes, this model is designed as a panel mount socket, making it suitable for secure installation in equipment.
The contacts are gold-plated, which enhances electrical conductivity and provides corrosion resistance.
It is widely used in industrial, manufacturing, instrumentation, and control applications where reliable connections are required.
This connector has a male contact gender.
The country of origin for this connector is India.
