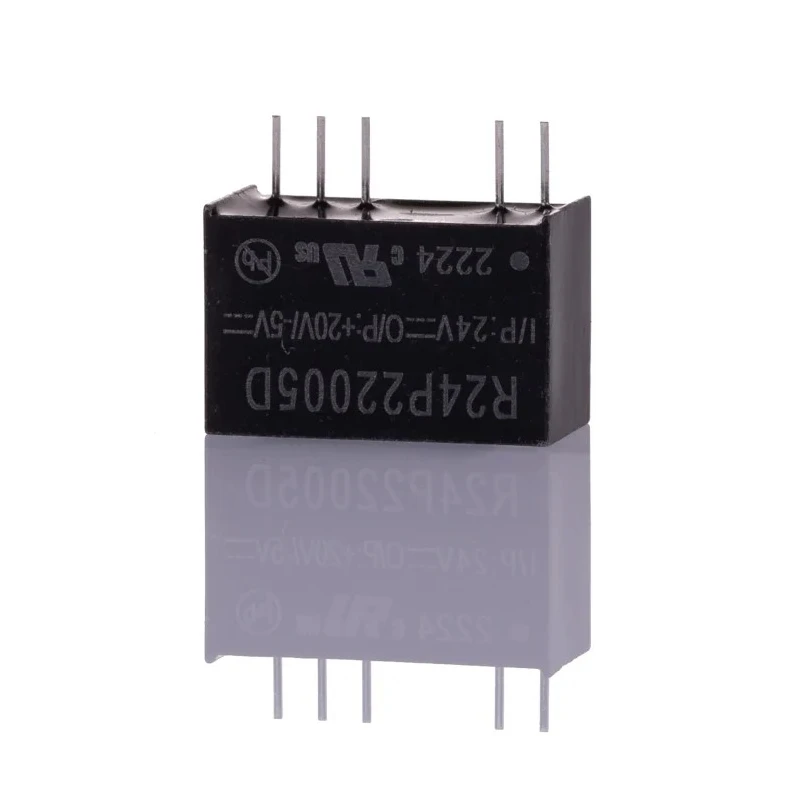

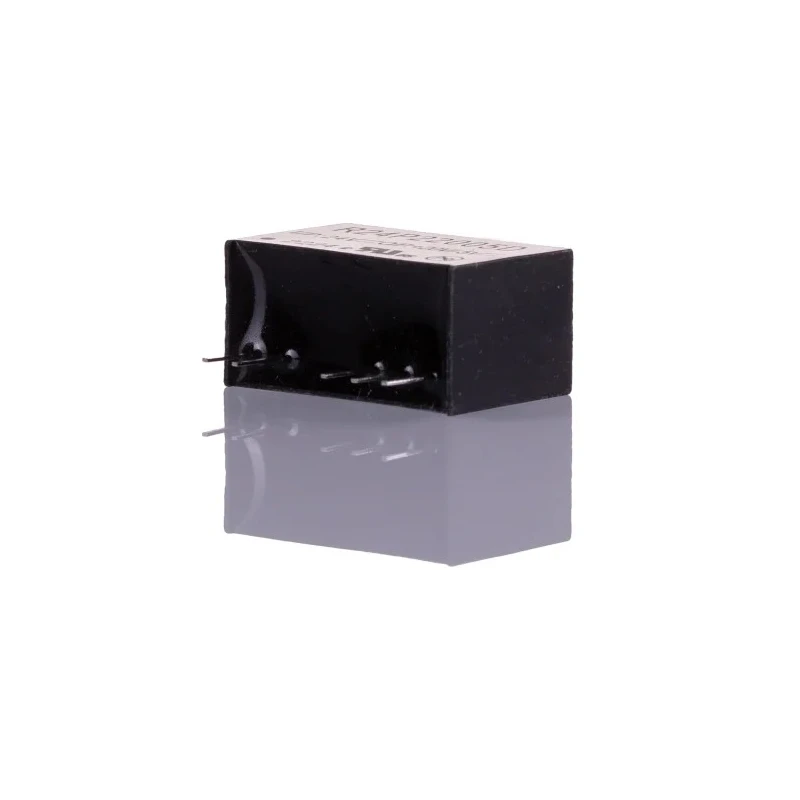

Recom DC/DC Converter Dual Output Through-Hole SIP7 Package -200V/-5mA & 50V/20mA, 21.6-26.4V Input, 2W, 85% R24P22005D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R24P DC/DC Converter, -200V/ -5 mA, 26 |
| Brand | Recom |
| Efficiency | 85% |
| Length | 19.5mm |
| Model | R24P22005D |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | R24P |
| Maximum Operating Temperature | 95°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 14600000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 26.4V |
| Minimum Input Voltage | 21.6V |
| Number of Pins | 7 |
| Output Voltage 1 | -200V |
| Output Current 1 | -5mA |
| Isolation Voltage | 5.2kV |
| Output Current 2 | 20mA |
| Output Voltage 2 | 50V |
Key Features
- Designed for SiC MOSFET driver applications with high 6.4kV DC isolation.
- Operates efficiently with up to 85% efficiency, reducing heat dissipation.
- Wide input voltage range from 21.6V to 26.4V for versatile power supply compatibility.
- Robust operation across temperatures from -40°C to +95°C suitable for harsh industrial environments.
- Compact dimensions (19.5mm length, 12.5mm depth, 9.8mm width) facilitate PCB mounting.
- Dual outputs accommodate automatic power sharing with symmetrical or asymmetrical loads.
- High MTBF rating of 14,600,000 hours ensures reliable long-term performance.
- Through-hole mounting for easy and secure PCB installation.
Product Description
Recom R24P22005D is a robust DC/DC converter designed for applications including silicon carbide (SiC) MOSFET drivers, medical devices, electric vehicles, and laboratory equipment requiring dual voltage outputs with high isolation.
This converter delivers two output voltages: -200V at -5mA and 50V at 20mA, powered by an input range from 21.6V to 26.4V. With a maximum output power of 2W and an efficiency rating of 85%, it minimizes energy loss and thermal stress, allowing free-air convection cooling without the need for additional heatsinks.
The device is housed in a compact SIP7 through-hole package, measuring 19.5mm in length, 12.5mm in depth, and 9.8mm in width, making it ideal for PCB integration in constrained spaces. It supports operating temperatures from -40°C to +95°C, ensuring reliability in harsh industrial and commercial environments.
Featuring a high isolation voltage of 5.2kV, this converter safely separates input and output circuits to prevent damage from electrical surges and EMI interference, facilitated by an internal pot-core transformer. The high MTBF of 14.6 million hours further underscores its dependability for long-term use.
Its dual output design supports automatic power sharing, which adapts to equal power or equal current distribution needs, enhancing flexibility in complex power systems. The R24P22005D is particularly suited for electronics manufacturers and system integrators working on advanced power amplification, signal conditioning, and power management projects.
Designed for high-density power amplification with SiC MOSFET drivers. Automatic power sharing delivers flexibility in load handling. Compact SIP7 through-hole package for standard PCB mounting. Wide operating temperature range suitable for industrial conditions.
High isolation voltage supports surge protection and EMI reduction. Efficient operation reduces cooling requirements. Long MTBF indicates excellent reliability. Applications include medical, automotive, laboratory, and industrial equipment.
Explore more DC/DC Converters at EnvMart for your electronic design and industrial application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21.6V to 26.4V.
This unit has dual outputs: -200V at -5mA and 50V at 20mA.
It operates with an efficiency rating of 85%.
The maximum output power is 2W.
The isolation voltage is 5.2kV, ensuring safe separation between input and output circuits.
The dimensions are 19.5mm in length, 12.5mm in depth, and 9.8mm in width.
It can operate in temperatures ranging from -40°C to +95°C.
This model features two outputs.
It supports through-hole mounting, making it easy for PCB installation.
The mean time between failures (MTBF) is rated at 14,600,000 hours.
It is designed for applications including SiC MOSFET drivers, medical devices, electric vehicles, and laboratory equipment.
This unit has a total of 7 pins.
