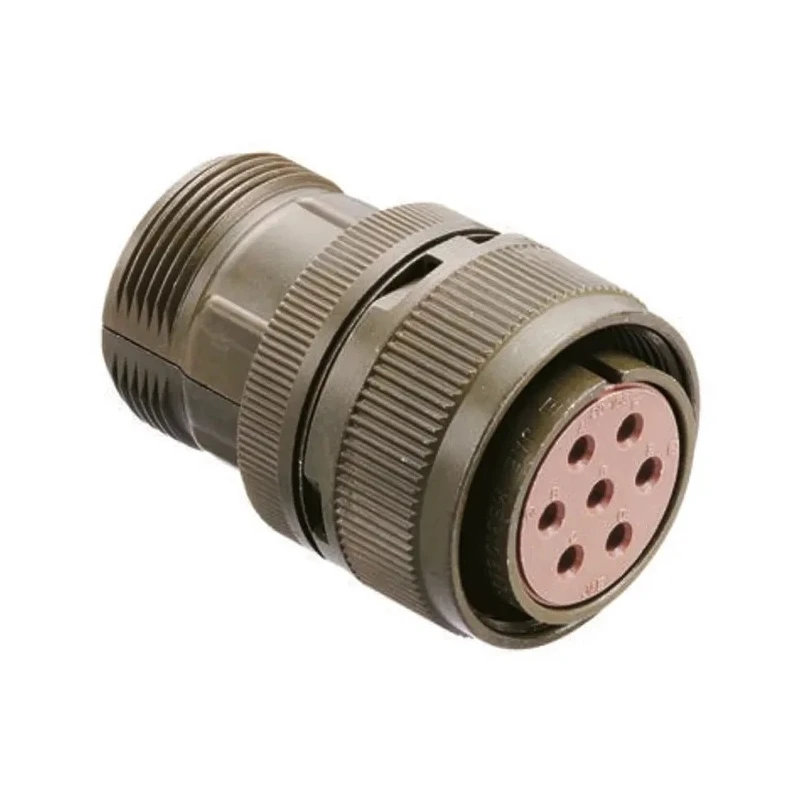

JAE MIL Spec Circular Connector Copper Alloy Straight 4 Way Cable Male Female Contacts Shell Size 20 N/MS3106B20-4S

Free Delivery in India | Lowest Global Shipping Charges

JAE MIL Spec Circular Connector Copper Alloy Straight 4 Way Cable Male Female Contacts Shell Size 20 N/MS3106B20-4S



Category Mil Spec Circular Connector Brand JAE Condition New

Specifications

Country of Origin	Japan
Voltage	900V
Brand	JAE
Colour	Black
Orientation	Straight
Current	23A
Model	N/MS3106B20-4S
Mount Type	Cable
Housing Material	Zinc
Contact Material	Copper Alloy
Series	N/MS
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Female
Connector Gender	Male
Shell Size	20
Military Standard	MIL-5015
Connector Size	Standard
Shell Plating	Zinc

Key Features

Constructed from copper alloy contacts with silver plating for excellent conductivity and corrosion resistance.
Features a straight male cable connector with female contacts for reliable mating.
Shell made from zinc material with zinc plating provides mechanical strength and environmental protection.
Rated for 23A current and 900V voltage operation with a temperature range from -30°C to 85°C.
Designed to meet MIL-5015 military standards ensuring ruggedness and durability in demanding applications.
Standard shell size 20 facilitates compatibility with common MIL spec connector interfaces.
Termination type is solder for secure and lasting cable attachment.
Ideal for industrial, military, aerospace, and electronic component applications requiring circular connectors.

Product Description

JAE N/MS3106B20-4S is a high-performance MIL Spec Circular Connector designed to provide secure electrical connections in demanding environments. This copper alloy straight 4 way cable connector features female contacts and a male connector gender, optimized for use in military, industrial, aerospace, and electronic circuitry applications.

The connector shell is manufactured from durable zinc material with zinc plating, finished in black color, ensuring mechanical protection and corrosion resistance. Its contact material is copper alloy with silver plating that offers excellent electrical conductivity and longevity.

Certified to MIL-5015 military standards, this connector delivers high reliability with electrical ratings of 23A current and 900V voltage. The operating temperature range from -30°C to 85°C allows performance stability across extreme environments.

Termination of the contacts is solder type providing secure and robust cable connectivity. The straight orientation and standard shell size 20 ensure compatibility with various MIL spec systems.

Typical applications include use in industrial control systems, aerospace equipment, military communications, and ruggedized electronics where dependable connector performance is critical.

The product is made in Japan, ensuring quality manufacturing standards. Constructed from copper alloy contacts with silver plating for conductivity and corrosion resistance. Durable zinc plated shell in black finish provides mechanical robustness.

Meets MIL-5015 military standard for rugged environments. Rated 23A current and 900V voltage with operating temperatures from -30°C to 85°C. Solder termination for secure cable attachment. Straight male connector with female contacts.

Shell size 20, compatible with standard MIL spec circular connector systems. Browse more in the Mil Spec Circular Connector category at EnvMart for a full range of rugged circular connectors suitable for demanding industrial and military applications.
