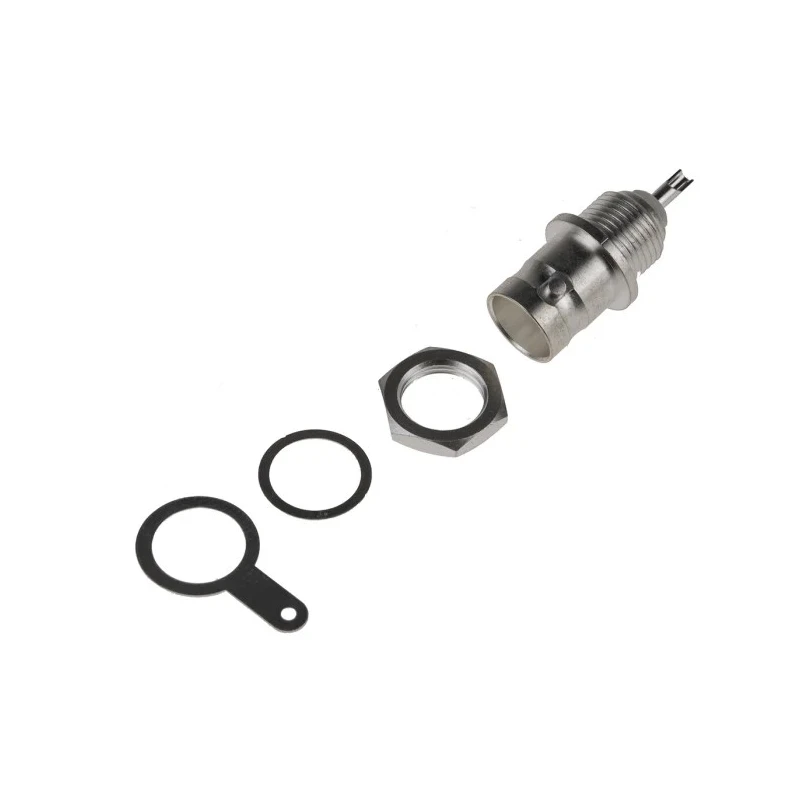

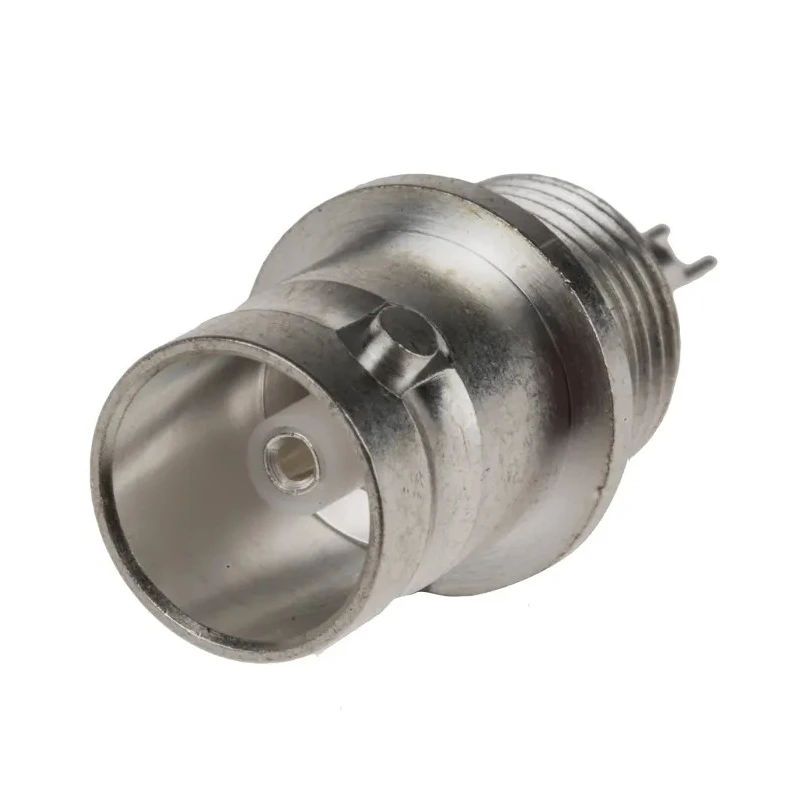

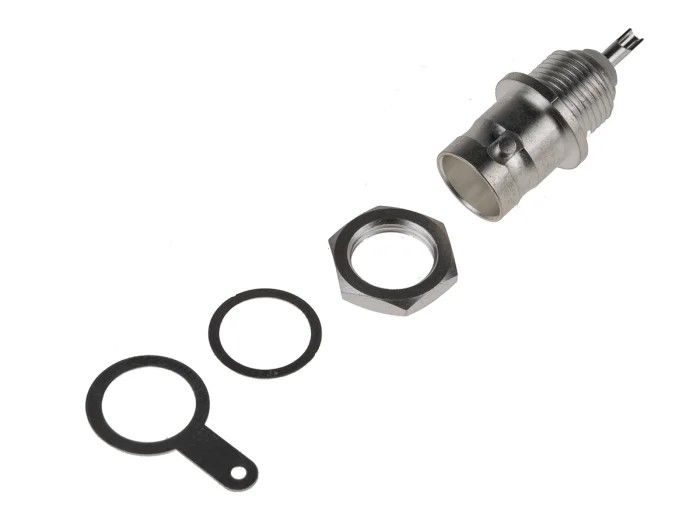

RS PRO Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Solder 546-4471
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4471 |
| Mount Type | Panel Mount |
| Operating Frequency | 1GHz |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Silver |
| RS PRO, jack Panel Mount, 75Ω, Solder Termination, Straight BodyBrand | RS PRO |
| TE Connectivity, jack Panel Mount, 75Ω, Solder Termination, Straight BodyBrand | TE Connectivity |
Key Features
- This connector features a silver-plated brass body for excellent conductivity and durability.
- The contact material is copper plated with silver for high reliability.
- It supports an operating frequency up to 1 GHz, suitable for RF applications.
- The connector operates reliably within temperatures from -65°C to 165°C.
- Termination type is solder, ensuring a secure electrical connection.
- Designed as a standard size bulkhead socket with normal polarity and female contact gender.
- Manufactured in Taiwan, Province of China, reflecting high-quality production standards.
- Ideal for electronic component, power, and connector applications requiring robust coaxial connections.
Product Description
RS PRO 546-4471 is a panel mount coaxial connector offering a female BNC interface with 75 Ω impedance and straight body solder termination. This connector is designed for reliable connectivity in high-frequency applications up to 1 GHz.
The robust brass body is silver plated to provide superior conductivity and corrosion resistance, while the contact is made of copper with a silver plating for enhanced durability and signal integrity. The standard bulkhead mount type facilitates easy installation on panels, making it suitable for various industrial and laboratory setups.
Engineered to operate over a wide temperature range from -65°C to 165°C, this connector ensures consistent performance even under harsh environmental conditions. Its solder termination type guarantees a strong and stable electrical connection, which is crucial for sensitive RF and communication applications.
The connector's female polarity and contact gender make it compatible with a broad range of mating parts, adhering to RS PRO series standards. It is widely used in electronics, power, and connector systems within industries such as telecommunications, test and measurement, and instrumentation.
This connector features a silver-plated brass body for excellent conductivity and durability. The contact material is copper plated with silver for high reliability. It supports an operating frequency up to 1 GHz, suitable for RF applications.
The connector operates reliably within temperatures from -65°C to 165°C. Termination type is solder, ensuring a secure electrical connection. Designed as a standard size bulkhead socket with normal polarity and female contact gender.
Manufactured in Taiwan, Province of China, reflecting high-quality production standards. Ideal for electronic component, power, and connector applications requiring robust coaxial connections.
This RS PRO panel mount female BNC Coaxial Connector is an essential component for professionals seeking reliable and secure RF connectivity solutions. Explore more RS PRO electronic components at EnvMart for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports an operating frequency of up to 1 GHz, making it suitable for RF applications.
The impedance rating of this connector is 75 Ω, which is standard for many RF applications.
It uses a solder termination type, ensuring a secure electrical connection.
This connector operates reliably within a temperature range of -65°C to 165°C.
The body is made of silver-plated brass, and the contact material is copper plated with silver for enhanced reliability.
The connector has a female contact gender with normal polarity, making it compatible with a broad range of mating parts.
This model is designed as a panel mount connector, facilitating easy installation on panels.
It is manufactured in Taiwan, Province of China, reflecting high-quality production standards.
This connector is classified as a standard size, suitable for various applications.
It is widely used in electronics, power, and connector systems within industries such as telecommunications and instrumentation.
This model is a BNC coaxial connector, specifically designed for reliable connectivity in high-frequency applications.
The contact plating material is silver, which enhances conductivity and signal integrity.
