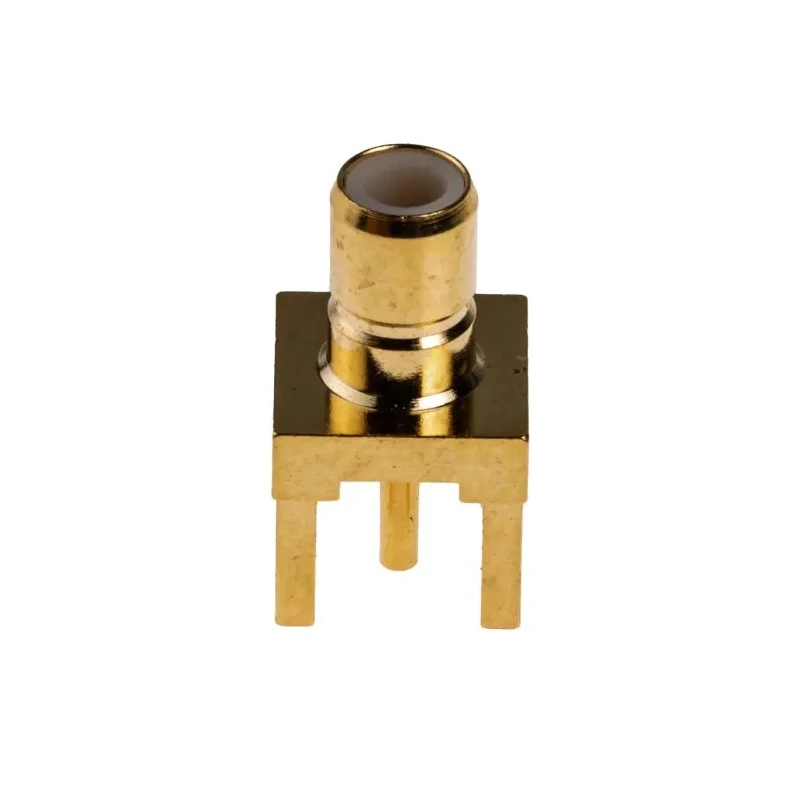

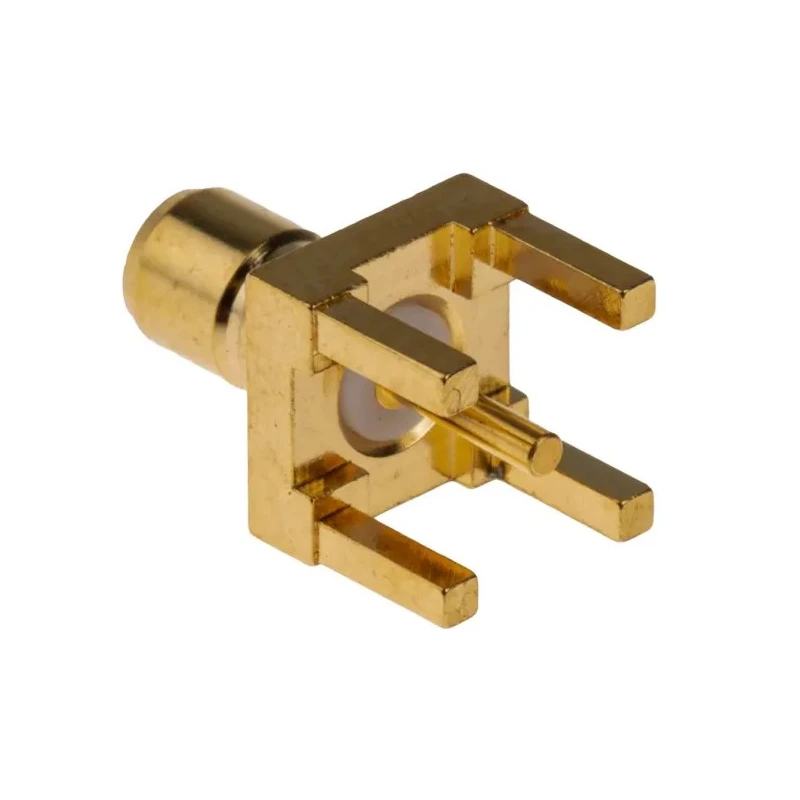

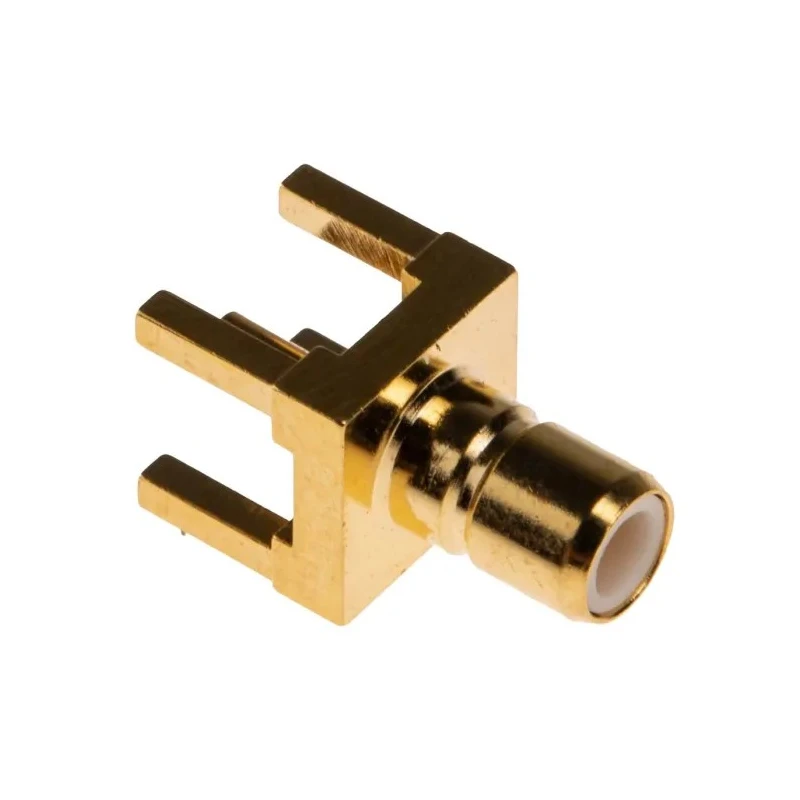

RS PRO Coaxial Connector PCB Mount Female SMB Connector 50 Ω Impedance, Straight Body, Solder Termination, Gold 546-3399
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3399 |
| Mount Type | PCB |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Cable Type | RG174A/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| RS PRO Coaxial Connector Panel Mount Female SMB, 50 Ω, Straight Body SolderBrand | RS PRO |
| Through Hole, 50Ω, Solder Termination, Straight BodyBrand | IMS |
| AuPt SMB male straight PCB skt,500Vdc/acBrand | NEUTRAL |
Key Features
- Subminiature PCB mount SMB coaxial connector.
- Female connector with straight body orientation.
- Gold plated brass body and contact for corrosion resistance.
- Operating frequency up to 4 GHz suitable for Wi-Fi and microwave systems.
- Normal polarity design with snap-on coupling mechanism.
- Termination by soldering ensures secure attachment to cables.
- Temperature range from -55°C to 155°C supports harsh environments.
- Characteristic impedance of 50 Ω minimizes signal loss and interference.
Product Description
RS PRO 546-3399 is a high-quality coaxial connector designed for PCB mounting, featuring a female SMB type and a straight body configuration. It operates at a frequency up to 4 GHz with a characteristic impedance of 50 Ω, making it ideal for reliable RF transmission in wireless and microwave communication systems.
This connector is specifically designed for seamless solder termination onto RG174 A/U coaxial cables, ensuring secure and stable connections. The gold plating on the brass body and contacts enhances durability by preventing corrosion and reducing electromagnetic interference, which is critical for signal integrity.
It supports a wide operating temperature range from -55°C to 155°C, allowing use in diverse environments from industrial to laboratory applications. The snap-on coupling mechanism facilitates quick and reliable mating, important for maintenance and installation processes.
RS PRO 546-3399 is widely used in electronics components assemblies, communication devices, and networking equipment requiring dependable PCB connectors with subminiature size to save board space while maintaining performance.
Subminiature SMB Coaxial Connector with PCB mounting design. Gold plated brass body and contact for corrosion resistance. Snap-on coupling for fast and secure mating. Operates at up to 4 GHz frequency for RF applications.
Solder termination for strong electrical and mechanical connection. Wide temperature range -55°C to 155°C for challenging conditions. Designed for RG174 A/U cable compatibility and 50 Ω impedance. Reliable in Wi-Fi networks, microwave communications, and industrial electronics.
This product belongs to the electronics components category and is an excellent choice for engineers seeking high-quality PCB coaxial connectivity solutions. Explore more RS PRO connectors and related electronics components at EnvMart for your professional and industrial needs.
