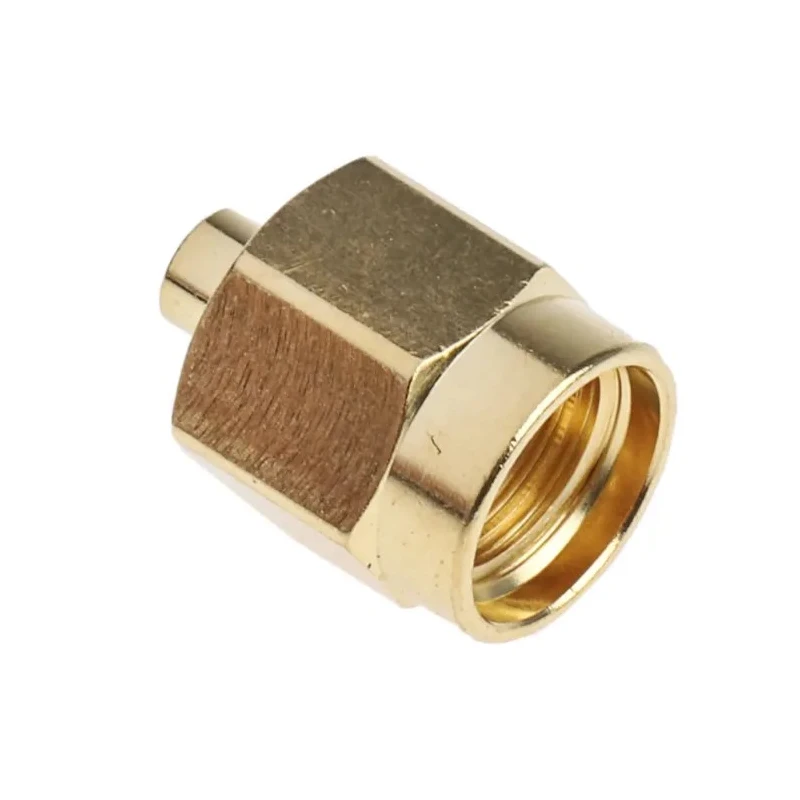

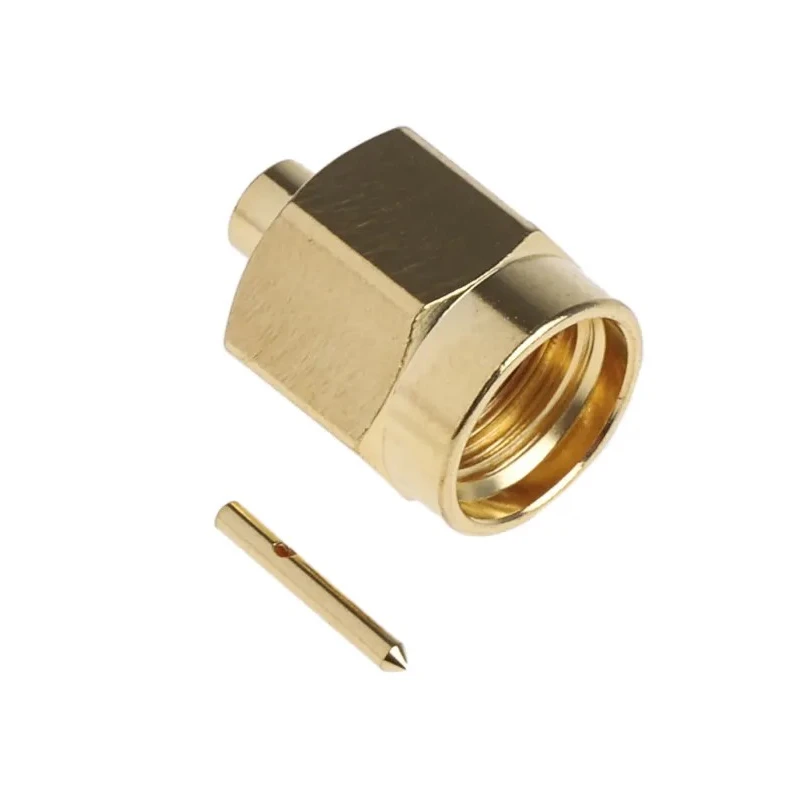

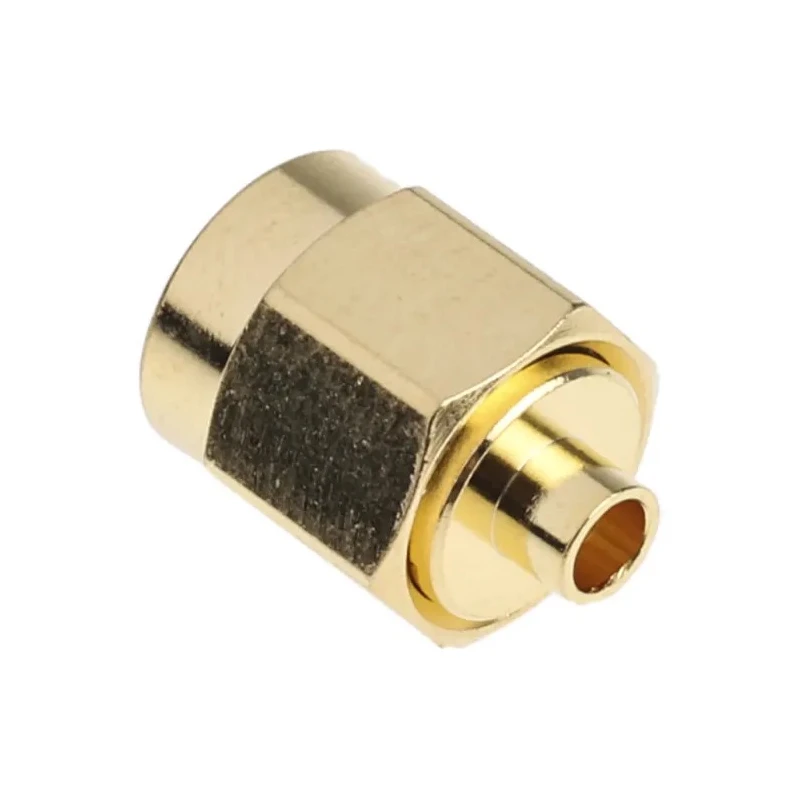

RS PRO SMA Series Coaxial Connector Cable Male SMA 50 Ω Straight Body Solder 546-3080
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3080 |
| Mount Type | Cable |
| Operating Frequency | 18GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG405 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Cable Male SMA, 50 Ω, Straight Body SolderBrand | RS PRO |
Key Features
- This SMA connector features a straight body and a male connector gender.
- It uses RG405 cable type, subminiature size suitable for compact installations.
- Characteristic impedance is 50 Ω for optimal RF performance.
- The connector is designed to operate from -65°C to 165°C temperature range.
- Gold-plated body and contact ensure durability and corrosion resistance.
- Termination is via solder, enabling reliable cable mounting.
- Supports operating frequencies up to 18 GHz for high-frequency applications.
- Contact material is brass with gold plating for enhanced conductivity.
Product Description
RS PRO 546-3080 SMA Series Coaxial Connector Cable Male SMA 50 Ω Straight Body Solder is a high-performance subminiature RF connector designed for joining coaxial cables. Manufactured to deliver reliable broadband, video, and TV signal transmission, this connector is ideal for industrial, laboratory, and commercial electronic applications.
The connector features a straight body design with a male connector gender, suitable for solder termination onto RG405-type coaxial cables. The characteristic impedance of 50 Ω ensures minimal signal loss at high frequencies up to 18 GHz. Gold plating on both the body and contact enhances durability, wear resistance, and optimal electrical conductivity.
Operating effectively in harsh conditions, it supports a temperature range from -65°C to 165°C. The brass contact material balances strength and conductivity, making it robust for repeated use while maintaining signal integrity.
This SMA connector is compatible with commonly used microwave cables RG402/U and RG405/U. Its hexagonal body allows reliable mechanical fastening using spanners post-termination, ensuring secure connections.
Key benefits include high-frequency operation, corrosion-resistant gold plating, solder termination for lasting performance, and a compact subminiature design suitable for space-constrained installations.
This SMA connector features a straight body and a male connector gender. It uses RG405 cable type, subminiature size suitable for compact installations. Characteristic impedance is 50 Ω for optimal RF performance. The connector is designed to operate from -65°C to 165°C temperature range.
Gold-plated body and contact ensure durability and corrosion resistance. Termination is via solder, enabling reliable cable mounting. Supports operating frequencies up to 18 GHz for high-frequency applications. Contact material is brass with gold plating for enhanced conductivity.
Compatible with RG402/U and RG405/U microwave cables. Hexagonal shape body allows tightening with a spanner after soldering.
This RS PRO Coaxial Connector cable is well suited for applications in industrial electronics, telecommunications, laboratory instrumentation, and RF test setups. Its reliable construction and precise impedance matching support demanding high-frequency signal transmission requirements.
Explore more RS PRO connectors and electronic components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The characteristic impedance of this SMA connector is 50 Ω, ensuring optimal RF performance for high-frequency applications.
This model can operate at a maximum temperature of 165°C, making it suitable for a variety of environments.
This connector is designed for use with RG405 coaxial cable, suitable for solder termination.
It supports operating frequencies up to 18 GHz, making it ideal for high-frequency applications.
The contact material is brass with gold plating, which enhances conductivity and corrosion resistance.
Termination is achieved via solder, allowing for reliable cable mounting.
This connector is classified as subminiature, suitable for compact installations.
The minimum operating temperature for this model is -65°C, allowing it to function in harsh conditions.
This connector features a male gender, designed for specific connections in RF applications.
It supports cable mounting, facilitating easy integration into existing systems.
This connector is suitable for industrial electronics, telecommunications, laboratory instrumentation, and RF test setups.
The hexagonal body design allows for reliable mechanical fastening using spanners after soldering, ensuring secure connections.
