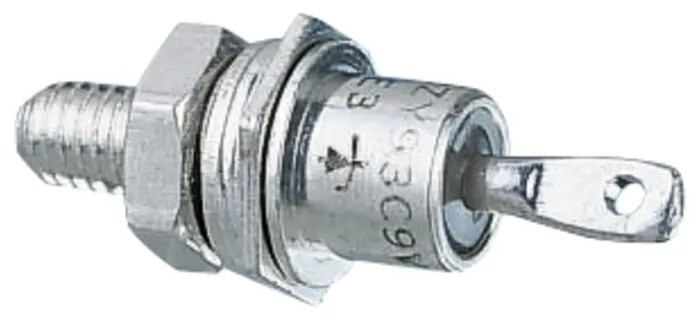

Vishay 1200 V 6 A Standard Recovery Switching Diode DO-203AA Package VS-6F120
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-6F120 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 167A |
| Maximum Forward Voltage Vf | 1.1V |
| Peak Reverse Recovery Time trr | 500ns |
| Diode, rectifier, 6F120Brand | NEUTRAL |
| Vishay Switching Diode, Stud Cathode, 2-Pin DO-4 6F120Brand | Vishay |
Key Features
- Equipped with DO-203AA package type offering robust mounting with screw method.
- Stud cathode diode configuration optimizes performance in switching applications.
- Capable of 167 A peak non-repetitive surge current for transient load handling.
- Operating temperature ranges from -65°C to 175°C ensuring reliability in harsh conditions.
- Maximum forward voltage is 1.1 V, contributing to efficient power conversion.
- Pin count is 2 with compact dimensions including 31.8 mm height and 12.69 mm length.
- Peak reverse recovery time is 500 ns for fast switching response.
- Meets RoHS compliance standards for environmental safety.
Product Description
Vishay VS-6F120 is a high-performance standard recovery switching diode designed for use in power and electronic applications. Featuring a maximum continuous forward current rating of 6 A and a peak reverse repetitive voltage rating of 1200 V, it provides dependable switching capabilities in a compact DO-203AA package. This diode incorporates a stud cathode configuration optimized for efficient current conduction and surge handling up to 167 A non-repetitive forward current pulses.
Its robust screw mount type and precise dimensions of 31.8 mm height, 12.69 mm length, and 11 mm diameter facilitate secure integration into various industrial circuits. The diode operates reliably within a temperature range from -65°C to 175°C, making it ideal for demanding environments including industrial, manufacturing, and power electronics systems.
The device features a low maximum forward voltage of 1.1 V contributing to energy-efficient switching and reduced conduction losses. Its fast peak reverse recovery time of 500 ns enhances switching speed for demanding semiconductor circuits. Certified RoHS compliant, this diode meets environmental directives and safety standards.
Equipped with DO-203AA package type offering robust mounting with screw method. Stud cathode diode configuration optimizing electrical performance. Handles 6 A continuous forward current with 1200 V reverse voltage rating.
Fast switching enabled by 500 ns peak reverse recovery time. Wide operating temperature range from -65°C to 175°C. Maximum forward voltage of 1.1 V minimizes power loss. Peak surge current capacity of 167 A for transient events.
Compact dimensions supporting diverse industrial applications. RoHS compliant for environmental and safety assurance.
This switching diode is ideally suited for industrial electronics, power management circuits, semiconductor applications, and laboratory-grade equipment requiring reliable diode switching performance. Explore additional Vishay semiconductor components and related products on EnvMart to fulfill varied industrial and electronic design needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 6 A.
It has a peak reverse repetitive voltage rating of 1200 V.
The diode operates reliably within a temperature range from -65°C to 175°C.
This diode can handle a peak non-repetitive forward surge current of 167 A.
The maximum forward voltage is 1.1 V, which contributes to efficient power conversion.
The peak reverse recovery time is 500 ns, allowing for fast switching response.
It uses a DO-203AA package type, which offers robust mounting with a screw method.
The dimensions are 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter.
This diode features a stud cathode configuration optimized for efficient current conduction.
Yes, this model meets RoHS compliance standards for environmental safety.
It is ideally suited for industrial electronics, power management circuits, and semiconductor applications.
This diode has a pin count of 2.
