Littelfuse LA Metal Oxide Varistor 220 pF Capacitance 50 A Clamping Current 1500 V V575LA40AP

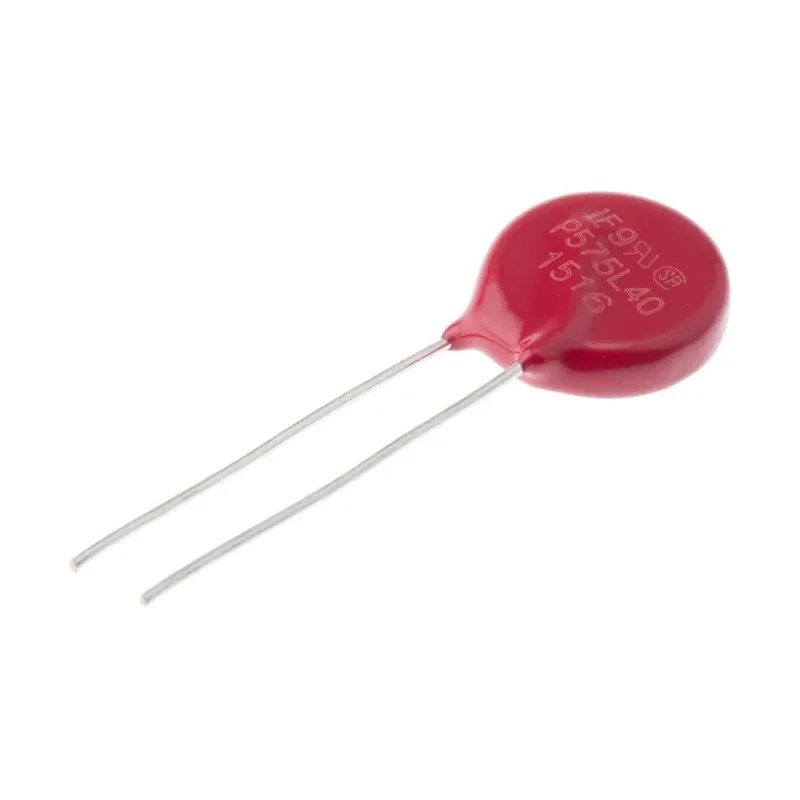

Littelfuse V575LA40AP Metal Oxide Varistor is a high-performance radial-lead surge protection device. Featuring a capacitance of 220 pF and a clamping voltage of 1500 V, it is designed to protect circuits by absorbing transient voltage surges effectively.

This varistor can continuously operate across AC power lines up to a maximum AC voltage of 575 V and withstands a maximum DC voltage of 730 V. Its robust metal construction and radial mount type ensure durability and reliable performance in industrial, electronic, and power supply applications.

The device supports a clamping current of 50 A and can absorb energy surges up to 120 joules, making it suitable for protecting sensitive components from transient voltage spikes. It operates reliably within a temperature range of -55°C to 85°C.

Compact with dimensions including a 17 mm diameter, 32 mm length, 8.3 mm thickness, and a lead pitch of 8.5 mm with 2 pins, the varistor allows easy and secure PCB mounting. It adheres to stringent standards such as UL1449, CECC 42201-006, IEC 61051-1, and IEC 61051-2, ensuring quality and safety compliance.

Applications include motor control, telecom equipment, power supplies, automotive electronics, and industrial machinery where transient voltage protection is critical. This varistor helps maintain data integrity and component longevity by mitigating damage caused by voltage surges.

Radial mount type with metal material for durability. Capacitance of 220 pF for effective transient voltage suppression. Clamping current capacity of 50 A to handle surge conditions. Rated varistor voltage of 1000 V and maximum AC voltage of 575 V ac.

Operating temperature range from -55°C to 85°C. Energy rating of 120 J for high surge absorption capability. Compact dimensions: 17 mm diameter, 32 mm length, and 8.3 mm thickness. Lead pitch is 8.5 mm with 2 pins for secure mounting.

Complies with UL1449, CECC 42201-006, IEC 61051-1, and IEC 61051-2 standards. Suitable for applications requiring robust surge protection in electrical and electronic circuits. Explore the range of Littelfuse Varistors and other electronic components available at EnvMart for your industrial, laboratory, and commercial surge protection needs.
