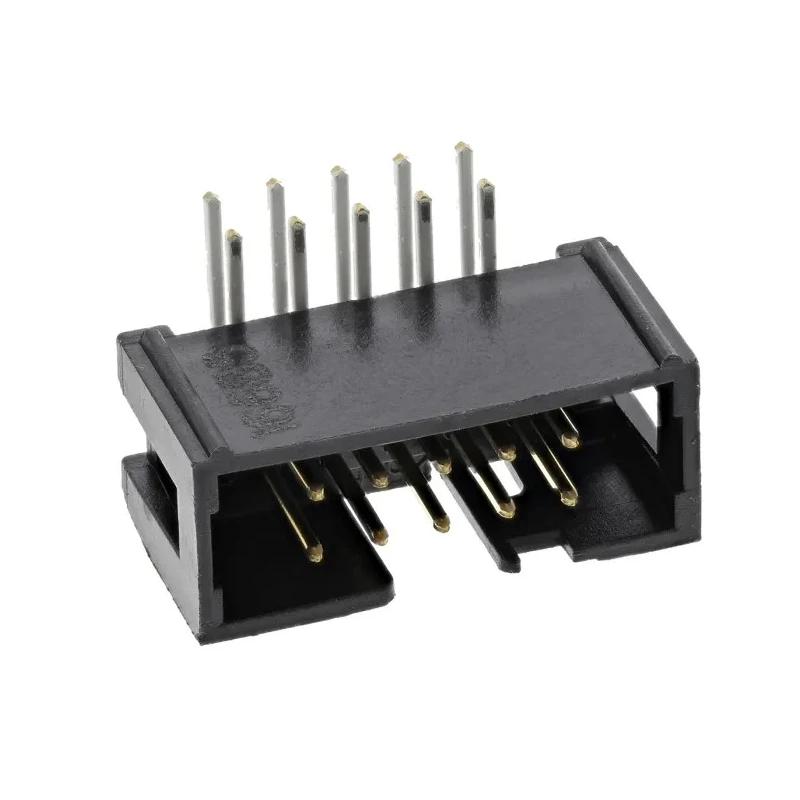

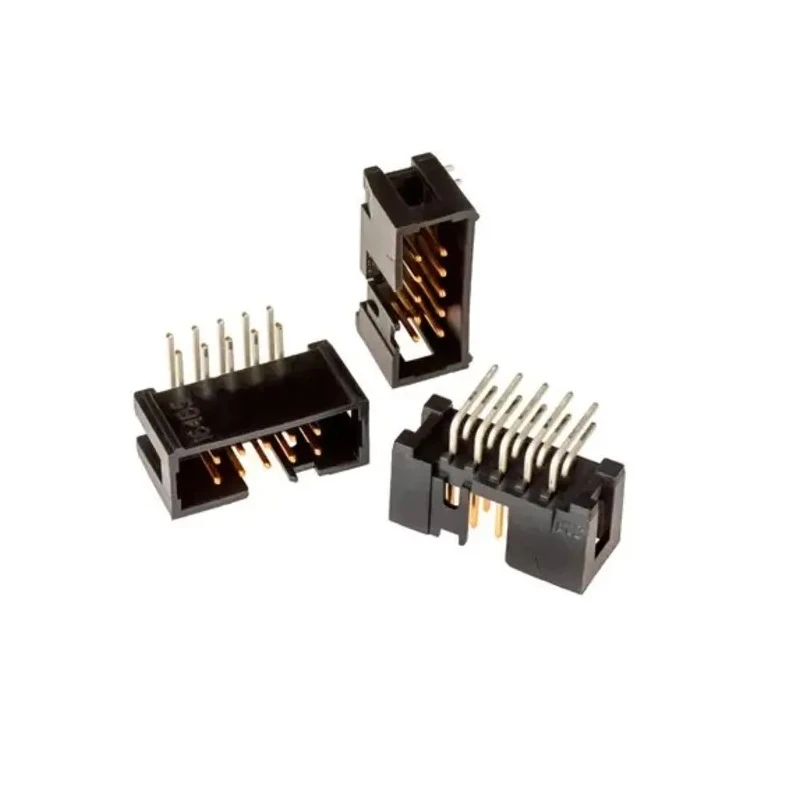

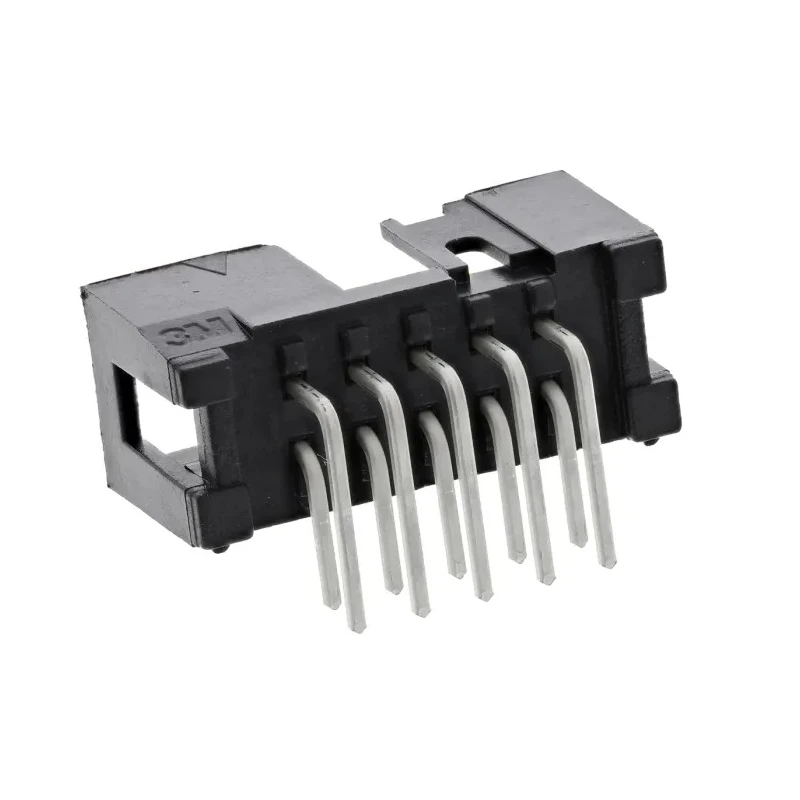

3M 2500 Series Right Angle Through Hole PCB Header 10 Contacts 2.54 mm Pitch 2 Row Shrouded N2510-5002RB

3M N2510-5002RB is a high-quality PCB Header from the 2500 Series designed for reliable low-power electronic connections. This right angle through hole header includes 10 gold-plated copper alloy male contacts spaced at a 2.54 mm pitch arranged in 2 rows. Its shrouded design and center slot polarization reduce insertion errors and increase compatibility with other polarization designs.

The housing material is robust, made of glass filled polyester, rated to safely operate within a temperature range from -55°C to 105°C. The component also meets UL94 V-0 flammability rating, providing safety in industrial and commercial applications.

With a current rating of 1.75 A, this header suits a variety of low-power PCB applications such as central processing units, automotive electronics, and domestic appliances. The right angle configuration facilitates installation in tight or awkward spaces, while through hole mounting guarantees a secure soldered connection to the PCB.

Durability up to 50 insertion cycles ensures long-lasting use without compromising connection integrity. The 3M 2500 Series headers also feature dual slot polarization for enhanced compatibility and ease of use.

Gold-plated copper alloy contacts ensure high conductivity and corrosion resistance. Rated for 1.75A current, suitable for low-power systems. Right angle orientation allows ease of installation in compact spaces. Through hole mounting provides secure solder attachment to PCB.

Glass filled polyester housing supports durability and high temperature operation up to 105°C. Wide operating temperature range from -55°C to 105°C for demanding environments. Durability rated for up to 50 insertions and withdrawals ensuring longevity.

UL94 V-0 rating enhances safety by limiting burning duration in case of fire. Polarization features prevent mis-insertion and allow compatibility with competitive designs. Versatile applications include central processing units, automotive industry, and domestic appliances.

This connector is designed for industrial, automotive, and consumer electronics applications where reliability and safety are paramount. It is ideal for manufacturers and engineers requiring a robust board-to-board or wire-to-board connection system.
