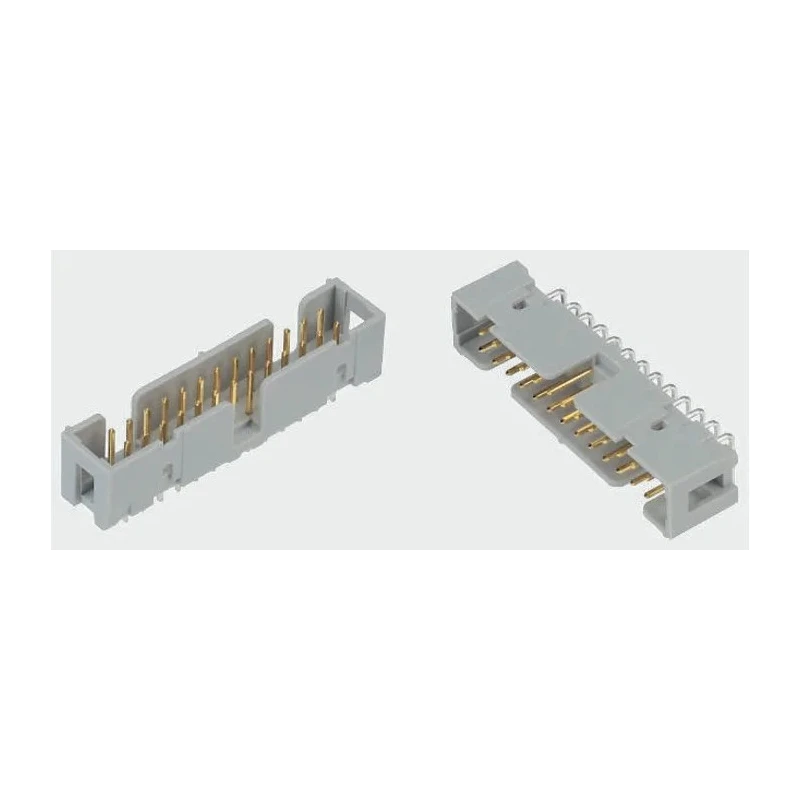

3M 2500 Series Right Angle Through Hole Shrouded PCB Header 34 Contacts 2.54 mm Pitch N2534-5002RB

Free Delivery in India | Lowest Global Shipping Charges

3M 2500 Series Right Angle Through Hole Shrouded PCB Header 34 Contacts 2.54 mm Pitch N2534-5002RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	1000V
Brand	3M
Orientation	Right Angle
Current	2A
Model	N2534-5002RB
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	2500
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
34 way class2 r/a low profile box headerBrand	3M

Key Features

Features a low profile, space-saving shrouded design to protect contacts.
Constructed with glass filled polyester housing for enhanced durability.
Utilizes copper alloy male contacts plated with gold for excellent conductivity and corrosion resistance.
Supports current rating of 2A and voltage up to 1000V for robust performance.
Designed for through hole mounting with a right angle orientation.
Operates reliably within temperature range from -55°C to 105°C.
Includes center slot and dual slot polarization to prevent mis-insertions and improve compatibility.
Commonly used in board-to-board and wire-to-board connector systems.

Product Description

3M N2534-5002RB is a 2500 Series right angle through hole PCB header featuring 34 male contacts arranged in 2 rows with a 2.54 mm pitch. This shrouded connector incorporates a low profile design with four-wall housing made from glass filled polyester, ensuring durability and space savings in complex electronic assemblies.

The header's contact material is copper alloy plated with gold which supports a maximum current rating of 2A and voltage of 1000V, making it suitable for demanding electronic applications. Its termination type is solder, and it mounts onto the PCB through holes with a right angle orientation to facilitate flexible board connections.

This series employs center slot polarization to avoid incorrect insertions and dual slot polarization providing extended compatibility with various connector designs. It operates effectively across a wide temperature range from -55°C to 105°C. The product is manufactured in the United States.

Ideal for industrial, electronic manufacturing, telecommunications, computing, and other commercial applications, this PCB Header simplifies board-to-board and wire-to-board connections while offering reliable electrical performance and mechanical stability.

Additional accessories such as latch and socket retainer clips are available to enhance locking and vibration resistance where necessary. Low profile, space-saving shrouded housing. Gold plated copper alloy contacts for conductivity and corrosion resistance.

2 rows, 34 contacts arranged at 2.54 mm pitch. Center and dual slot polarization for insertion accuracy and compatibility. Suitable for through hole mounting with right angle orientation. Operating temperature range: -55°C to 105°C.

Voltage rating up to 1000V and current rating of 2A. Applications in industrial electronics, telecommunications, and computing. Explore more PCB connectors and headers in EnvMart's Electronics & Electricals category for specialized, high-quality connectivity solutions.
