| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQW15AN |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQW15AN |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Interfaces | LAN |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.033μH |
| Standards/Approvals | RoHS |
| Package/Case | 1005 |
| Maximum DC Current | 260mA |
| Pin Count | 2 |
| Maximum DC Resistance | 630mΩ |
| Inductance Tolerance | ±2 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3.2GHz |
| Minimum Quality Factor | 25 |
| Inductor Construction | Wirewound |

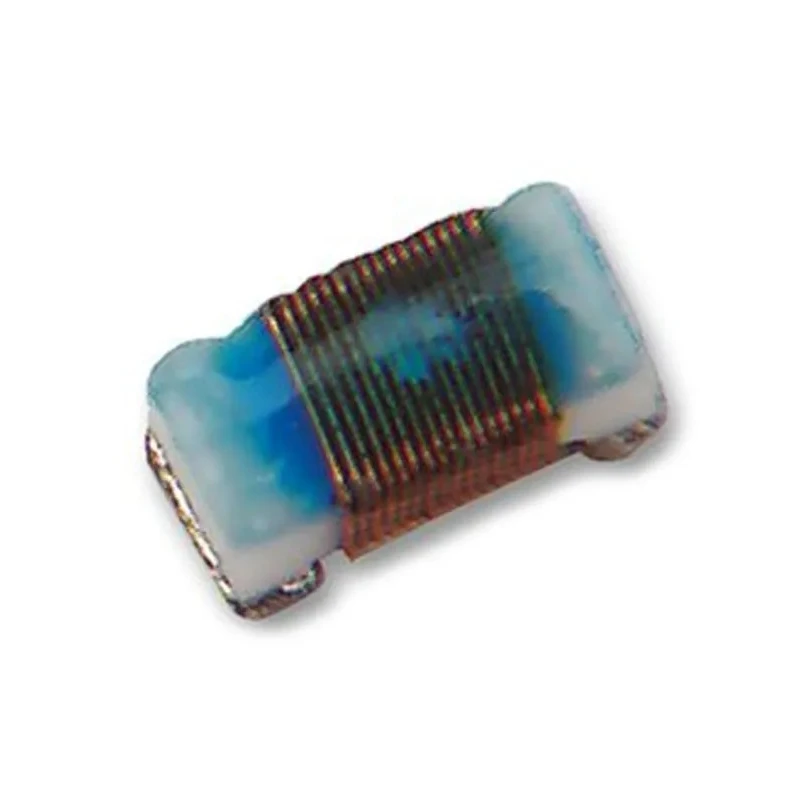

Murata LQW15AN Wirewound Surface Mount Inductor 0.033 μH ±2 % with a maximum DC current of 260 mA features a non-magnetic ceramic core and unshielded construction designed for high frequency applications.
This Surface Mount Inductor comes in a 1005 package case measuring 1mm length, 0.5mm height, and 0.5mm depth, making it suitable for compact electronic circuits. It is RoHS compliant ensuring environmental safety and uses solder termination for reliable mounting on PCBs.
The inductor is designed to operate efficiently across a temperature range from -55°C to 125°C and offers a maximum DC resistance of 630 mΩ to reduce power losses. Its high self-resonant frequency of 3.2 GHz makes it ideal for VHF and UHF frequency bands typically used in wireless telecommunications such as Bluetooth, GSM, and WLAN.
The minimum quality factor of 25 guarantees low losses and high performance in tuning and filtering circuits. This inductor is molded and wirewound to ensure durability and stable electrical characteristics. It is supplied on paper tape packaging to enhance production efficiency, especially in automated PCB assembly lines.
Common industrial applications include electronics manufacturing, telecommunications equipment, and high-frequency wireless devices. This component is vital for designers requiring precise inductance and high-frequency performance in small form factors.
Unshielded design with a non-magnetic ceramic core ensures signal integrity. Compact 1005 package dimensions measuring 1mm length, 0.5mm height, and 0.5mm depth. RoHS compliant with solder termination style for reliable PCB mounting.
Operating temperature range from -55°C to 125°C suits various environments. Maximum DC resistance of 630 mΩ minimizes power loss. High resonance frequency of up to 3.2 GHz supports VHF and UHF applications. Minimum quality factor of 25 for efficient inductance performance.
Supplied in paper tape packaging ready for automated insertion. Explore the Murata inductors category on EnvMart for more advanced components suitable for electronics and telecommunications applications.
