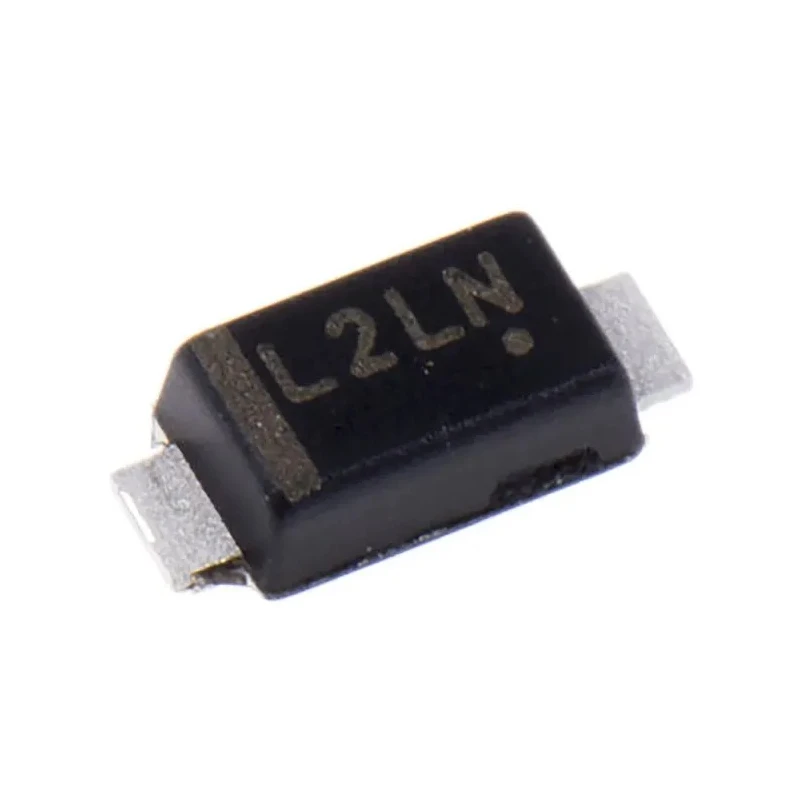

ROHM 60 V 1 A Surface Mount Schottky Diode 2-Pin SOD-123FL RB160MM-60TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.6mm |
| Model | RB160MM-60TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 550mV |
Key Features
- Surface mount device with small dimensions of 2.6 mm length, 1.6 mm width, and 0.8 mm height.
- Schottky diode provides low forward voltage drop of 550 mV and fast switching.
- Rated for peak non-repetitive forward surge current of 60 A for transient conditions.
- Maximum operating temperature up to 150°C ensures reliable performance in harsh environments.
- 2-pin configuration suitable for compact electronic circuit designs.
- Designed for single diode rectifier application in power and electronic circuits.
- RoHS compliant component without automotive certification.
Product Description
ROHM RB160MM-60TR is a 60 V, 1 A Schottky diode designed for surface mount applications. Encapsulated in a compact 2-pin SOD-123FL package, it combines low forward voltage and high surge current capability for efficient rectification.
This diode features a maximum continuous forward current of 1 A and peak reverse repetitive voltage rating of 60 V, making it suitable for various power management tasks, including switching power supplies, freewheeling diodes, and voltage clamping circuits.
The low forward voltage drop of 550 mV reduces power dissipation and improves energy efficiency, while the peak non-repetitive forward surge current rating of 60 A enables it to withstand transient surge conditions commonly encountered in industrial and electronic equipment.
With operating temperatures up to 150°C, the RB160MM-60TR offers excellent reliability and stability under demanding thermal environments.
Its minimal dimensions - 2.6 mm in length, 1.6 mm in width, and 0.8 mm in height - make it ideal for compact PCB layouts in industrial, automotive (non-certified), communication, and consumer electronics.
Surface mount package type SOD-123FL. Single diode configuration, Schottky rectifier. Forward current rating of 1 A continuous, 60 A surge. Peak reverse repetitive voltage of 60 V. Operating temperature range up to 150°C.
Pin count: 2 for ease of mounting. Typical forward voltage: 550 mV for efficient conduction.
This semiconductor diode is a robust choice for electronic component assemblies requiring efficient rectification and low voltage drops. It supports industrial, laboratory, manufacturing, communications, and commercial electronic applications.
Explore more ROHM semiconductors and Schottky Diode products on EnvMart for optimized power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 1 A.
This model has a peak reverse repetitive voltage rating of 60 V.
The typical forward voltage drop of this diode is 550 mV.
It is encapsulated in a SOD-123FL package type.
The peak non-repetitive forward surge current rating is 60 A.
The maximum operating temperature for this diode is 150°C.
The dimensions of this diode are 2.6 mm in length, 1.6 mm in width, and 0.8 mm in height.
This model features a single diode configuration.
The peak reverse current is rated at 50 μA.
It is suitable for power management tasks, including switching power supplies, freewheeling diodes, and voltage clamping circuits.
This diode has a pin count of 2, which facilitates ease of mounting.
Yes, this component is RoHS compliant but does not have automotive certification.
