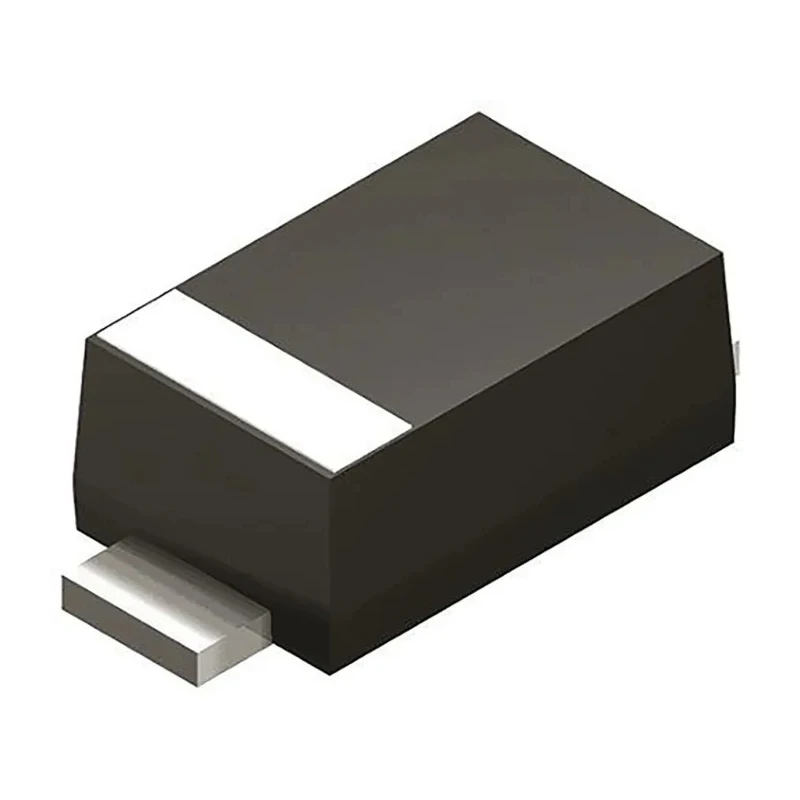

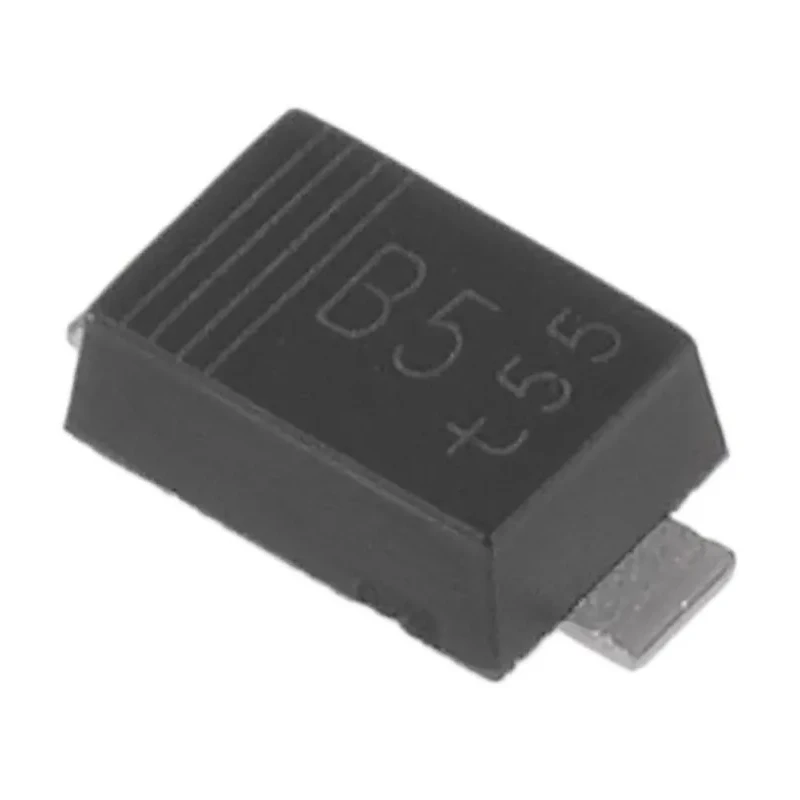

ROHM Zener Diode, 5.1 V Nominal Zener Voltage, 1 W Maximum Power Dissipation, Surface Mount SOD-123 Package KDZVTR5.1B
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 3.62mm |
| Model | KDZVTR5.1B |
| Mount Type | Surface |
| Series | KDZV |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 40mA |
| Maximum Reverse Leakage Current | 20μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
Key Features
- Nominal Zener voltage of 5.1 V ensures stable voltage regulation.
- Maximum power dissipation rating of 1 W for efficient energy handling.
- Surface mount design in SOD-123 package for compact PCB layouts.
- Low maximum reverse leakage current of 20μA enhances performance stability.
- Wide operating temperature range from -55°C to 150°C suitable for demanding industrial applications.
- Test current rated at 40mA to ensure diode reliability under operating conditions.
- RoHS compliant for environmentally safe use.
- Package includes 2 pins for easy PCB integration and soldering.
Product Description
The ROHM KDZVTR5.1B Zener Diode is designed as a voltage regulator with a nominal Zener voltage of 5.1 V and maximum power dissipation of 1 W. It is configured as a single diode element mounted on a surface in a compact SOD-123 package, featuring two pins optimized for modern PCB assembly processes.
This diode operates reliably over an extended temperature range from -55°C to 150°C, making it well suited for industrial, telecommunications, instrumentation, and consumer electronic applications requiring stable voltage regulation under varied conditions.
Its low maximum reverse leakage current of 20μA ensures minimal power loss and contributes to overall system efficiency. The diode is rated for a test current of 40mA, providing confidence in its performance during standard operating scenarios.
RoHS compliance certifies this diode as environmentally friendly, supporting green manufacturing standards.
The compact dimensions of 3.62mm length and 0.9mm height contribute to space-efficient designs, facilitating high-density PCB layouts. This diode is part of ROHM's KDZV series of Zener Diodes, known for quality and reliability.
Nominal Zener Voltage: 5.1 V for consistent voltage regulation. Maximum Power Dissipation: 1 W to handle power requirements with durability. Surface Mount SOD-123 Package suitable for compact electronics. Wide Temperature Range of -55°C to 150°C ensures operational robustness.
Low Reverse Leakage current minimizes losses and improves efficiency. Two-pin configuration for easy PCB integration. RoHS compliant for environmental safety.
This diode is ideal for applications in industrial machines, electronic instruments, and power supplies, ensuring voltage stability. Explore more semiconductor components and advanced voltage regulation devices on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.1 V, ensuring stable voltage regulation in various applications.
The maximum power dissipation rating for this model is 1 W, allowing it to handle power requirements efficiently.
This diode is housed in a surface mount SOD-123 package, which is designed for compact PCB layouts.
The operating temperature range is from -55°C to 150°C, making it suitable for demanding industrial applications.
The maximum reverse leakage current is 20μA, which helps enhance performance stability and efficiency.
The test current rated for this model is 40mA, ensuring reliability under standard operating conditions.
This diode features a two-pin configuration, facilitating easy integration into PCB designs.
Yes, this model is RoHS compliant, certifying it as environmentally safe for use in electronics.
The height of this diode is 0.9mm and the length is 3.62mm, contributing to its compact design.
This model is configured as a single diode element, optimized for voltage regulation applications.
This Zener diode is suitable for applications in industrial machines, electronic instruments, and power supplies that require stable voltage regulation.
This diode is part of the KDZ series of Zener Diodes, known for their quality and reliability in voltage regulation.
